| Title: A750F AUTOMATIC TRANSMISSION: SPEED SENSOR: REMOVAL; 2007 MY Land Cruiser [08/2006 - ] | ||
REMOVAL
1. REMOVE SPEEDOMETER SENSOR
(a) Disconnect the sensor connector.
|
(b) Remove the bolt and the sensor. |
|
(c) Remove the clip and the driven gear from the sensor.
(d) Remove the O-ring from the sensor.

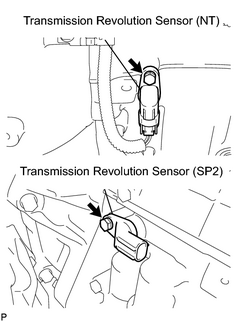

2. REMOVE TRANSMISSION REVOLUTION SENSOR (NT) AND (SP2)
(a) Disconnect the sensor connectors.
(b) Remove the 2 bolts, revolution sensor (SP2) and (NT).
|
(c) Remove the 2 O-rings from the revolution sensor (SP2) and (NT). |
|
|
|
