Title: PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: Reverse Signal Circuit; 2007 MY Land Cruiser [08/2006 -        ]

Reverse Signal Circuit

DESCRIPTION

  • The television camera ECU receives the reverse signal from the park/neutral position switch.

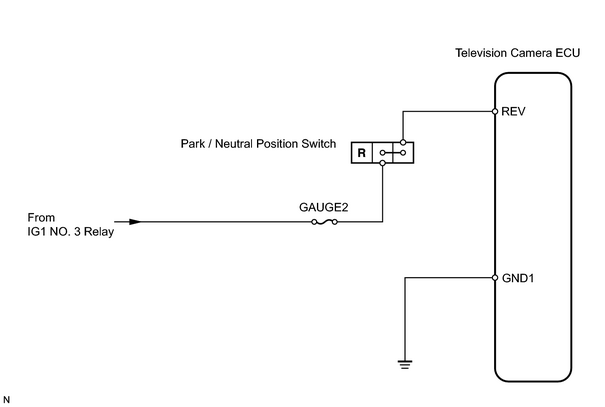

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

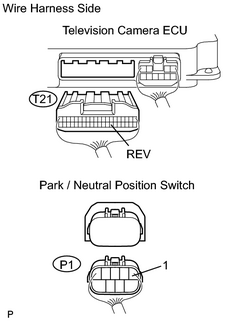

CHECK WIRE HARNESS (TELEVISION CAMERA ECU - PARK / NEUTRAL POSITION SWITCH)

(a) Disconnect the T21 ECU connector.

(b) Disconnect the P1 switch connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:

Tester Connection

Specified Condition

T21-27 (REV) - P1-1

Below 1 Ω

T21-27 (REV) - Body ground

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

2.

CHECK WIRE HARNESS (TELEVISION CAMERA ECU - BODY GROUND)

(a) Disconnect the T22 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

Tester Connection

Specified Condition

T22-8 (GND1) - Body ground

Below 1 Ω
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

3.

INSPECT PARK / NEUTRAL POSITION SWITCH (REV VOLTAGE)

(a) Measure the voltage according to the value(s) in the table below.

Standard voltage:

Tester Connection

Condition

Specified Condition

T21-11 (REV) - Body ground

Ignition switch ON, shift lever R position

10 to 14 V
NG

INSPECT PARK / NEUTRAL POSITION SWITCH

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
