Display Signal Circuit between Television Camera ECU and Multi-display |
DESCRIPTION
- This is the display signal circuit from the multi-display controller sub-assembly to the multi-display assembly.

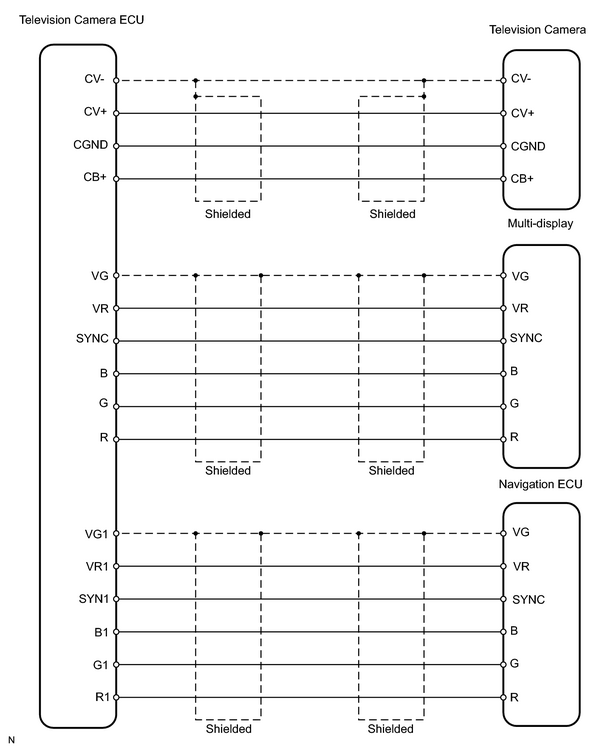

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |

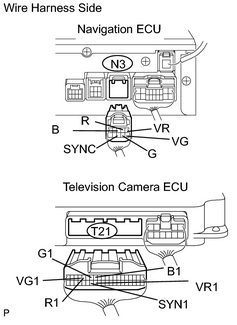

CHECK WIRE HARNESS (NAVIGATION ECU - TELEVISION CAMERA ECU) |
|
(a) Disconnect the N3 and T21 ECU connectors. |
|
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
|
Tester Connection |
Specified Condition |
|---|---|
|
N3-2 (R) -T21-15 (R1) |
Below 1 Ω |
|
N3-7 (G) - T21-14(G1) |
Below 1 Ω |
|
N3-3 (B) -T21-13 (B1) |
Below 1 Ω |
|
N3-8 (SYNC) - T21-34 (SYN1) |
Below 1 Ω |
|
N3-1 (VR) - T21-33 (VR1) |
Below 1 Ω |
|
N3-6 (VG) -T21-16 (VG1) |
Below 1 Ω |
|
N3-2 (R) - Body ground |
10 kΩ or higher |
|
N3-7 (G) - Body ground |
10 kΩ or higher |
|
N3-3 (B) - Body ground |
10 kΩ or higher |
|
N3-8 (SYNC) - Body ground |
10 kΩ or higher |
|
N3-1 (VR) - Body ground |
10 kΩ or higher |
| NG |
|
|
|
2. |

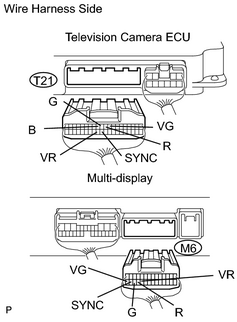

CHECK WIRE HARNESS (TELEVISION CAMERA ECU - MULTI-DISPLAY) |
|
(a) Disconnect the T21 ECU connector. |
|
(b) Disconnect the M6 display connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
|
Tester Connection |
Specified Condition |
|---|---|
|
T21-10 (R) - M6-24 (R) |
Below 1 Ω |
|
T21-11 (G) - M6-25 (G) |
Below 1 Ω |
|
T21-12 (B) - M6-26 (B) |
Below 1 Ω |
|
T21-31 (SYNC) - M6-27 (SYNC) |
Below 1 Ω |
|
T21-32 (VR) - M6-23 (VR) |
Below 1 Ω |
|
T21-9 (VG) - M6-28 (VG) |
Below 1 Ω |
|
T21-10 (R) - Body ground |
10 kΩ or higher |
|
T21-11 (G) - Body ground |
10 kΩ or higher |
|
T21-12 (B) - Body ground |
10 kΩ or higher |
|
T21-31 (SYNC) - Body ground |
10 kΩ or higher |
|
T21-32 (VR) - Body ground |
10 kΩ or higher |
| NG |
|
|
|
3. |

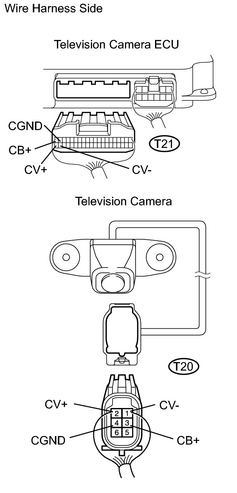

CHECK WIRE HARNESS (TELEVISION CAMERA ECU - TELEVISION CAMERA) |
|
(a) Disconnect the T21 ECU connector. |
|
(b) Disconnect the T20 camera connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
|
Tester Connection |
Specified Condition |
|---|---|
|
T21-20 (CB+) - T20-4 (CB+) |
Below 1 Ω |
|
T21-19 (CGND) - T20-3 (CGND) |
Below 1 Ω |
|
T21-40 (CV+) - T20-2 (CV+) |
Below 1 Ω |
|
T21-39 (CV-) - T20-1 (CV-) |
Below 1 Ω |
|
T21-20 (CB+) - Body ground |
10 kΩ or higher |
|
T21-19 (CGND) - Body ground |
10 kΩ or higher |
|
T21-40 (CV+) - Body ground |
10 kΩ or higher |
|
T21-39 (CV-) - Body ground |
10 kΩ or higher |
| NG |
|
|
|
4. |

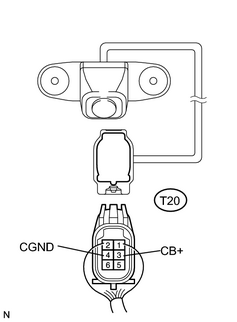

INSPECT TELEVISION CAMERA ECU |
|
(a) Measure the voltage according to the value(s) in the table below. Standard:
|
|
| NG |
|
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
|
