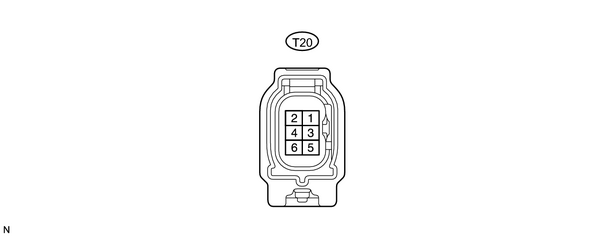

CV- (T20-1) - CGND (T20-3)

BR - W

Display signal (-)

Always

Below 1 Ω

CV+ (T20-2) - CGND (T20-3)

R - W

Display signal (+)

Ignition switch ON, shift lever R position

Signal waveform 1

CGND (T20-3) - Body ground

W - Body ground

Power ground

Always

Below 1 Ω

CB+ (T20-4) - CGND (T20-3)

B - W

Power source

Ignition switch ON, shift lever R position

6 V

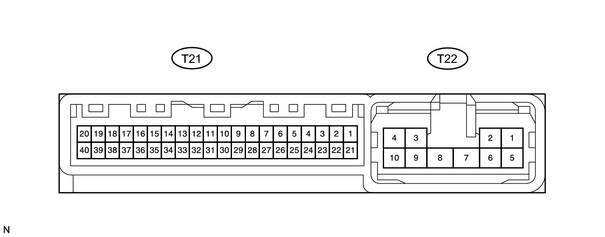

+B (T22-1) - GND1 (T22-8)

L-Y - W-B

Battery supply

Always

10 to 14 V

Ignition (T22-2) - GND1 (T22-8)

B-W - W-B

Ignition signal input

Ignition switch ON

10 to 14 V

ACC (T22-5) - GND1 (T22-8)

GR - W-B

ACC signal input

Ignition switch ON or ACC

10 to 14 V

GND1 (T22-8) - Body ground

W-B - Body ground

Power ground

Always

Below 1 Ω

VG (T21-9) - GND1 (T22-8)

Shielded - W-B

Display signal output ground (Shielded)

Always

Below 1 Ω

R (T21-10) - GND1 (T22-8)

Y - W-B

Display signal output (Red)

While displaying map or rear view monitor

Signal waveform 2

G (T21-11) - GND1 (T22-8)

W - W-B

Display signal output (Green)

While displaying map or rear view monitor

Signal waveform 2

B (T21-12) - GND1 (T22-8)

R - W-B

Display signal output (Blue)

While displaying map or rear view monitor

Signal waveform 2

B1 (T21-13) - GND1 (T22-8)

R - W-B

Display signal input (Blue)

While displaying map

Signal waveform 2

G1 (T21-14) - GND1 (T22-8)

W - W-B

Display signal input (Green)

While displaying map

Signal waveform 2

R1 (T21-15) - GND1 (T22-8)

Y - W-B

Display signal input (Red)

While displaying map

Signal waveform 2

VG1 (T21-16) - GND1 (T22-8)

Shielded - W-B

Display signal input ground (Shielded)

Always

Below 1 Ω

CGND (T21-19) - GND1 (T22-8)

W - W-B

Television camera ground

Always

Below 1 Ω

CB+ (T21-20) - GND1 (T22-8)

B - W-B

Power source to television camera

Ignition switch ON, shift lever R position

6 V

REV (T21-27) - GND1 (T21-6)

R-B - W-B

Reverse signal input

Ignition switch ON, shift lever R position

10 to 14 V

TX+ (T21-29)

P

AVC-LAN control bus

See "Service check mode"

-

TX- (T21-30)

L-B

AVC-LAN control bus

See "Service check mode"

-

SYNC (T21-31) - GND1 (T22-8)

G - W-B

Synchronized signal output

While displaying map or rear view monitor

Signal waveform 3

VR (T22-32) - GND1 (T21-8)

B - W-B

Display signal output ground

Always

Below 1 Ω

VR1 (T21-33) - GND1 (T22-8)

B - W-B

Display signal input ground

Always

Below 1 Ω

SYN1 (T21-34) - GND1 (T221-8)

G - W-B

Synchronized signal input

While displaying map

Signal waveform 3

TX1- (T21-35)

L-B

AVC-LAN control bus

See "Service check mode"

-

TX1+ (T21-36)

P

AVC-LAN control bus

See "Service check mode"

-

CV- (T21-39) - GND1 (T22-8)

Shielded - W-B

Television camera ground (Shielded)

Always

Below 1 Ω

CV+ (T21-40) - GND1 (T22-8)

R - W-B

Display signal of television camera input

Ignition switch ON, shift lever R position

Signal waveform 1
