| Title: ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: Diagnosis Circuit; 2007 MY Land Cruiser [08/2006 - ] | ||
|
Diagnosis Circuit |
DESCRIPTION
This circuit sends a signal to the ECU that outputs DTC.

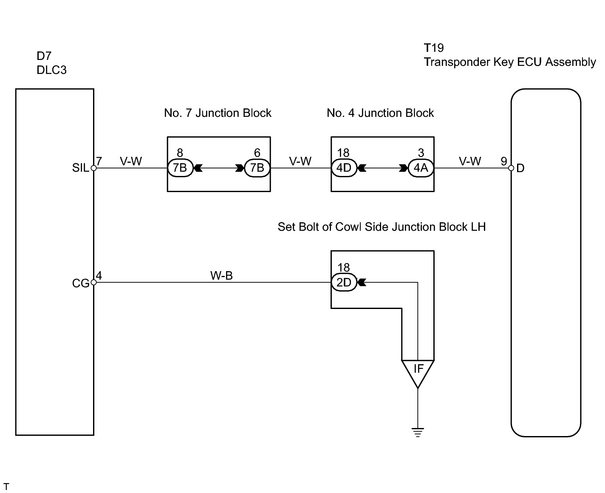

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT DLC3 TERMINAL VOLTAGE |
(a) Turn the ignition switch ON.
|
(b) Measure the voltage of the D7 connector. Standard voltage:
|
|
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE |
|
|
2. |
CHECK WIRE HARNESS (TRANSPONDER KEY ECU ASSEMBLY - DLC3 AND BODY GROUND) |
(a) Disconnect the T19 ECU connector.
(b) Disconnect the D7 connector.
(c) Measure the resistance of the wire harness side connectors.
Standard resistance:
|
Tester Connection |
Specified Condition |
|---|---|
|
T19-9 (D) - D7-7 (SIL) |
Below 1 Ω |
|
D7-4 (CG) - Body ground |
|
|
T19-9 (D) or D7-7 (SIL) - Body ground |
10 kΩ or higher |
| NG |
|
| OK |
|
|
|
