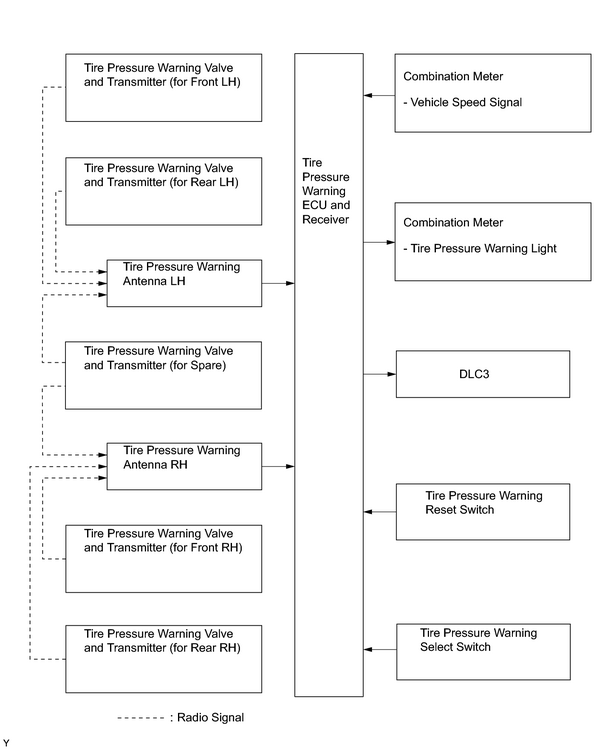

SYSTEM DIAGRAM
HINT:
The tire pressure warning valve and transmitter sends information on the temperature inside the tire, the ID, and the tire pressure.
|
|
