- Front air mix damper control servomotor
- Harness or connector between front air mix damper control servomotor and A/C amplifier
- A/C amplifier
| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM0000018NB003X |
| Model Year Start: 2007 | Model: Land Cruiser | Prod Date Range: [08/2006 - ] |
| Title: AIR CONDITIONING: AIR CONDITIONING SYSTEM: 41; Air Mix Damper Control Servo Motor Circuit (Passenger Side); 2007 MY Land Cruiser [08/2006 - ] | ||
|
DTC |
41 |
Air Mix Damper Control Servo Motor Circuit (Passenger Side) |
DESCRIPTION
The front air mix damper control servomotor is controlled by the A/C amplifier and moves the air mix damper to the desired position.
|
DTC No. |
Detection Item |
Trouble Area |
|---|---|---|
|
41 |
Air mix damper position sensor value does not change even if A/C control assembly operates air mix damper control servomotor. |
|

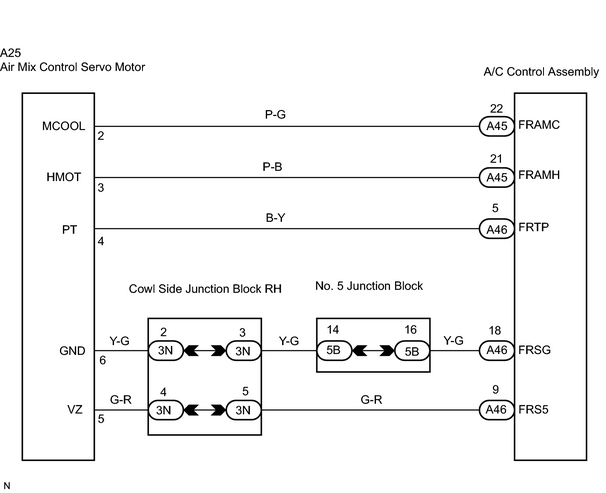

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
PERFORM ACTUATOR CHECK |
(a) Warm up the engine.
(b)
Set to actuator check mode
![2007 MY Land Cruiser [08/2006 - ]; AIR CONDITIONING: AIR CONDITIONING SYSTEM: ACTUATOR CHECK](../../../../stylegraphics/info.gif "2007 MY Land Cruiser [08/2006 - ]; AIR CONDITIONING: AIR CONDITIONING SYSTEM: ACTUATOR CHECK")
.
(c) Press the DEF switch and change it to step operation.
(d) Press the DEF switch and check the operation of the air mix damper and the condition of the blower.
|
Display Code |
Air Mix Damper |
Condition |
|---|---|---|
|
0 to 2 |
0% (Fully closed) |
Cool air comes out |
|
3 to 4 |
50% |
- |
|
5 to 7 |
100% (Full opened) |
Warm air comes out |
| OK |
|
|
|
2. |
CHECK FRONT AIR MIX DAMPER CONTROL SERVOMOTOR |
|
(a) Remove the front air mix servomotor. (b) Connect positive (+) lead to terminal HMOT (3) and negative (-) lead to terminal MCOOL (2) and check the front air mix servomotor. OK: The lever turns smoothly to warm side. (c) Connect positive (+) lead to terminal MCOOL (2) and negative (-) lead to terminal HMOT (3) and check the front air mix servomotor. OK: The lever turns smoothly to cool side. |
|
| NG |
|
|
|
3. |
CHECK WIRE HARNESS (FRONT AIR MIX DAMPER CONTROL SERVOMOTOR - AIR CONDITIONING AMPLIFIER) |
| NG |
|
| OK |
|
|
|
