Parking Brake Switch Circuit |

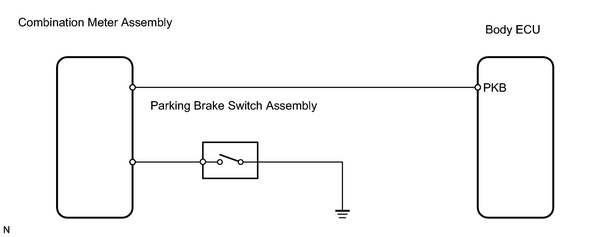

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.
PROCEDURE
|
1. |
PERFORM ACTIVE TEST USING INTELLIGENT TESTER (PARKING BRAKE SWITCH)*1 |
(a) Connect the intelligent tester to the DLC3.
(b)
Check that the parking brake switch operate in DATA LIST
![2007 MY Land Cruiser [08/2006 - ]; METER: METER / GAUGE SYSTEM: DATA LIST / ACTIVE TEST](../../../../stylegraphics/info.gif "2007 MY Land Cruiser [08/2006 - ]; METER: METER / GAUGE SYSTEM: DATA LIST / ACTIVE TEST")
.
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE |
|
|
2. |
INSPECT PARKING BRAKE SWITCH ASSEMBLY*2 |
| NG |
|
|
|
3. |
CHECK WIRE HARNESS (PARKING BRAKE SWITCH - BODY ECU) |
| NG |
|
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE |
|
|
