- Transfer L4 position switch
- Transfer L4 position switch circuit
| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM000001A6U004X |
| Model Year Start: 2007 | Model: Land Cruiser | Prod Date Range: [08/2006 - ] |
| Title: BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1268/68; Transfer "L4" Position Switch Circuit; 2007 MY Land Cruiser [08/2006 - ] | ||
|
DTC |
C1268/68 |
Transfer "L4" Position Switch Circuit |
DESCRIPTION
|
DTC |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
C1268/68 |
Open or short circuit in transfer L4 position switch. |
|

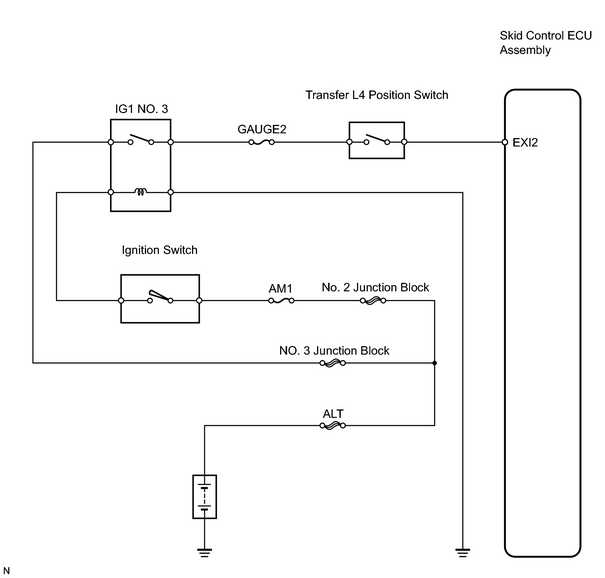

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK SKID CONTROL ECU ASSEMBLY (EXI2 TERMINAL VOLTAGE) |
|
(a) Remove the skid control ECU assembly with the connectors still connected. (b) Turn the ignition switch ON. (c) Measure the voltage between terminal EXI2 of the skid control ECU assembly and body ground when the transfer is in the L4 position. OK: Standard voltage 10 to 14 V |
|
| OK |
|
|
|
2. |
INSPECT TRANSFER L4 POSITION SWITCH |
(a)
Check the transfer L4 position switch
![2007 MY Land Cruiser [08/2006 - ]; HF2A TRANSFER: TRANSFER SYSTEM: ON-VEHICLE INSPECTION+](../../../../stylegraphics/info.gif "2007 MY Land Cruiser [08/2006 - ]; HF2A TRANSFER: TRANSFER SYSTEM: ON-VEHICLE INSPECTION+")
.
| NG |
|
|
|
3. |
CHECK WIRE HARNESS (SKID CONTROL ECU ASSEMBLY - TRANSFER L4 POSITION SWITCH) |
| NG |
|
|
|
4. |
CHECK WIRE HARNESS (SKID CONTROL ECU ASSEMBLY - ECM) |
| NG |
|
| OK |
|
|
|
