| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM000001AMD002X |
| Model Year Start: 2007 | Model: Land Cruiser | Prod Date Range: [08/2006 - ] |
| Title: METER: LIGHT CONTROL RHEOSTAT: ON-VEHICLE INSPECTION; 2007 MY Land Cruiser [08/2006 - ] | ||
ON-VEHICLE INSPECTION
|

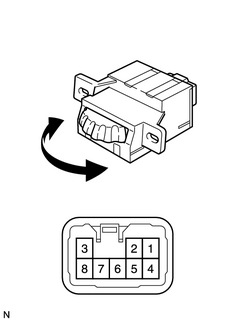

1. INSPECT LIGHT CONTROL RHEOSTAT (a) Turn the rheostat knob OFF, and check that there is no continuity between terminal 5 and 4 (Rheostat knob turned to fully counterclockwise). (b) Gradually turn the rheostat knob from the dark side to bright side, and check that there is continuity between terminal 5 and 4 (Rheostat knob turned clockwise). If operation is not as specified, replace the rheostat. |
|
|
|
