Display Signal Circuit between Navigation ECU and Multi-display |
DESCRIPTION
This is the display signal circuit from the multi-display controller sub-assembly to the multi-display.

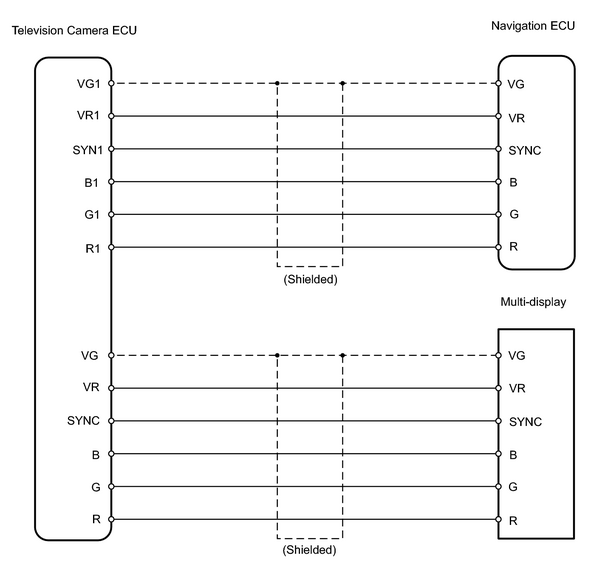

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |

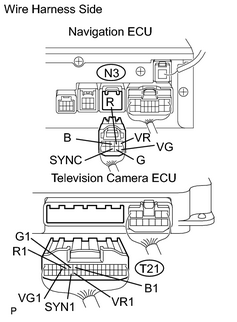

CHECK WIRE HARNESS (NAVIGATION ECU - TELEVISION CAMERA ECU) |
|
(a) Disconnect the N3 and T21 ECU connectors. (b) Measure the resistance of the wire harness side connectors. Standard resistance:
|
|
| NG |
|
|
|
2. |

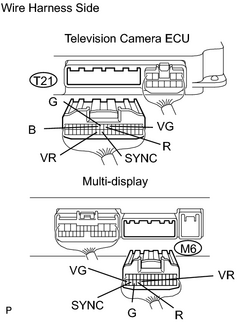

CHECK WIRE HARNESS (TELEVISION CAMERA ECU - MULTI-DISPLAY) |
|
(a) Disconnect the T21 ECU connector. |
|
(b) Disconnect the M6 display connector.
(c) Measure the resistance of the wire harness side connectors.
Standard resistance:
|
Tester Connection |
Specified Condition |
|---|---|
|
T21-10 (R) - M6-24 (R) |
Below 1 Ω |
|
T21-11 (G) - M6-25 (G) |
Below 1 Ω |
|
T21-12 (B) - M6-26 (B) |
Below 1 Ω |
|
T21-31 (SYNC) - M6-27 (SYNC) |
Below 1 Ω |
|
T21-32 (VR) - M6-23 (VR) |
Below 1 Ω |
|
T21-9 (VG) - M6-28 (VG) |
Below 1 Ω |
|
T21-10 (R) - Body ground |
10 kΩ or higher |
|
T21-11 (G) - Body ground |
10 kΩ or higher |
|
T21-12 (B) - Body ground |
10 kΩ or higher |
|
T21-31 (SYNC) - Body ground |
10 kΩ or higher |
|
T21-32 (VR) - Body ground |
10 kΩ or higher |
| NG |
|
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
|
