WIPER AND WASHER: REAR WIPER MOTOR AND LINK: INSPECTION; 2007 MY Land Cruiser [08/2006

Last Modified: 6-7-2017	6.8:8.0.40	Doc ID: RM000001B71005X
Model Year Start: 2007	Model: Land Cruiser	Prod Date Range: [08/2006 - ]
Title: WIPER AND WASHER: REAR WIPER MOTOR AND LINK: INSPECTION; 2007 MY Land Cruiser [08/2006 - ]

INSPECTION

1. INSPECT REAR WIPER MOTOR ASSEMBLY

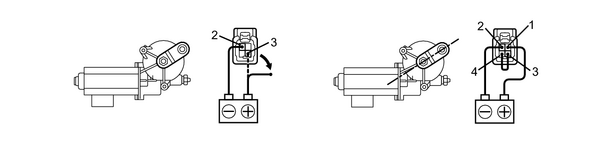

(a) Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2, check that the motor operates.

If operation is not as specified, replace the motor.

2. INSPECT REAR WIPER MOTOR ASSEMBLY (STOPPING AT STOP POSITION)

(a) Operate the motor and stop the motor operation anywhere except at the stop position by disconnecting the positive (+) lead from terminal 3.

(b) Connect terminal 3 and 4.

(c) Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, and check that the motor stops running at the stop position after the motor operates again.

NOTICE:

These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.

If the operation is not as specified, replace the motor.
