Title: LIGHTING: TURN SIGNAL LIGHT SWITCH: INSPECTION; 2007 MY Land Cruiser [08/2006 -        ]

INSPECTION

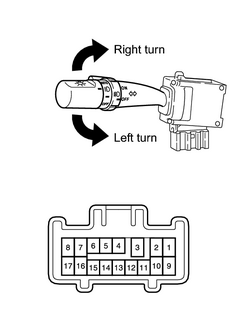

1. INSPECT TURN SIGNAL SWITCH

(a) Measure the continuity of the switch.

OK:

Tester Connection

Condition

Specified Condition

7 - 8

Left turn

Continuity

6 - 7

Right turn

-

Neutral

No continuity

If the result is not as specified, replace the headlight dimmer switch assembly.
