| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM000001CHK001X |
| Model Year Start: 2007 | Model: Land Cruiser | Prod Date Range: [08/2006 - ] |
| Title: SLIDING ROOF: SLIDING ROOF SYSTEM: ON-VEHICLE INSPECTION; 2007 MY Land Cruiser [08/2006 - ] | ||
ON-VEHICLE INSPECTION

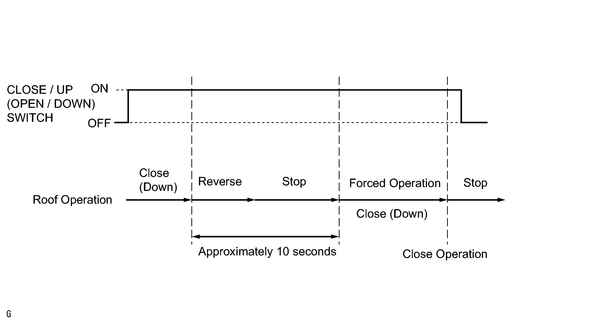

1. CHECK SLIDING ROOF REVERSE OPERATION DURING CLOSE OPERATION
- *: Holding the CLOSE / UP (OPEN / DOWN) switch pressed inhibits the jam protection function at approximately 10 seconds after starting the reverse operation.
- If the switch remains pressed any longer, the sliding door starts close operation and it stops when detecting the fully closed position.
HINT:
At approximately 10 seconds after starting the reverse operation, it is switched to the forced close (down) operation.
|
|
