ON-VEHICLE INSPECTION

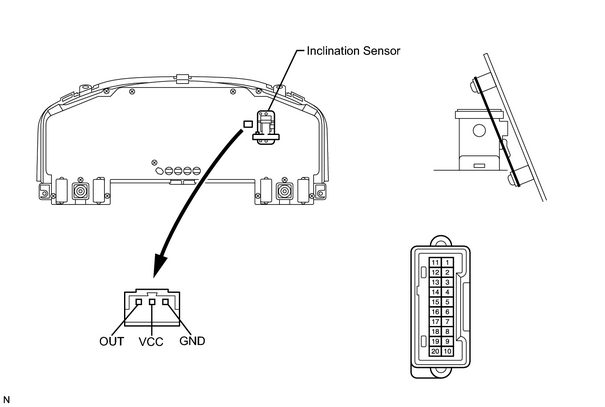

1. INSPECT INCLINATION SENSOR ASSEMBLY
(a) With the combination meter in which the inclination sensor installed, connect the battery positive to the 1 terminal of the meter connector, and battery negative to the 11 terminal.
(b) Check whether or not the voltage is 5 V between the VCC and the GND terminals of the inclination sensor connector.
(c) Check the voltage between the OUT and the GND terminals when the inclination sensor is in level position and when it is inclination backward and forward.
Standard voltage:
Sensor in level position about 4.5 V
Sensor inclined about 0.5 V
|
|
