CROSSMEMBER-REAR/TRANSMISSION
REMOVAL
1. Remove the skid plate. (Refer to 13 - FRAME & BUMPERS/FRAME/SKID PLATE-TRANSFER CASE - REMOVAL)
2. Support the transmission with a suitable lifting device.

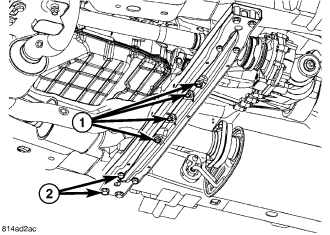

3. Remove the four transmission mount bolts (1).
4. Remove the eight crossmember bolts (2) and remove the crossmember.
INSTALLATION
1. Install the crossmember and install the eight crossmember bolts (2).
2. Tighten the crossmember bolts to 54 N·m (40 ft. lbs.).
3. Remove the lifting device.
4. Install the four transmission mount bolts (1) and tighten to 54 N·m (40 ft. lbs.).
5. Install the skid plate. (Refer to 13 - FRAME & BUMPERS/FRAME/SKID PLATE-TRANSFER CASE - INSTALLATION)
