FASCIA-FRONT
REMOVAL
1. Remove the grille. (Refer to 23 - BODY/EXTERIOR/GRILLE - REMOVAL)

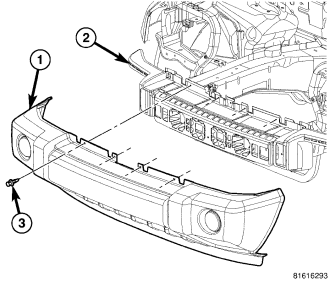

2. Remove the push pin fasteners (3) along the top of the fascia (1).

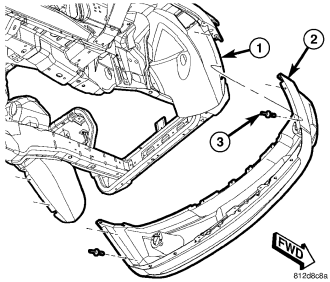

3. Remove the plastic rivets (3) at each wheelhouse splash shield (1).

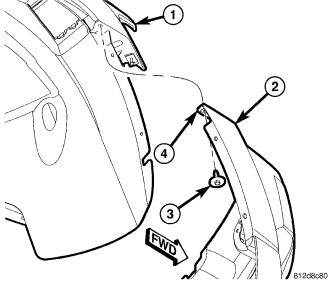

4. Remove the screws (3) from inside the fascia (2).

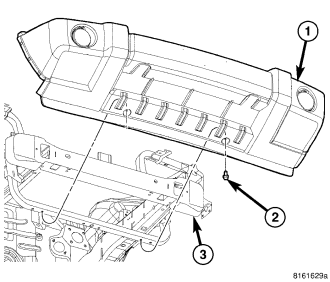

5. Remove the two lower screws (2).
6. Disconnect the fog lamp electrical connectors, if equipped.
INSTALLATION
1. Position the fascia (1) onto the vehicle and align the fascia flange slot onto the t-push pin (2).
2. Install the four upper push pin fasteners (3).
3. Install the two upper screws (3) on the inside of the fascia (4) to the fender (1).
4. Install the two lower screws (2).
5. Connect the fog lamp electrical connectors, if equipped.
6. Install new plastic rivets (3) at each wheelhouse splash shield (1).
