FASCIA-REAR
REMOVAL
1. Open the liftgate.

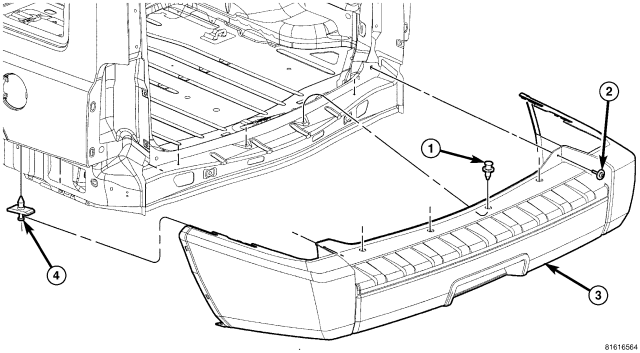

2. Remove the four push pin fasteners (1) and 2 screws (2) at the step pad area.
3. Remove the plastic rivets at the wheel wells (1).
4. Remove the two push pin fasteners and remove the rear wheel splash shields.

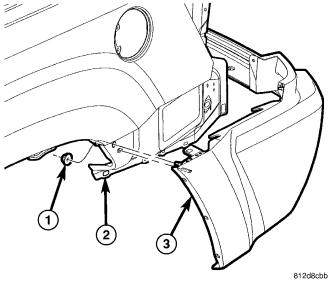

5. Remove the nuts (1) at the back sides of the quarter panels (2).

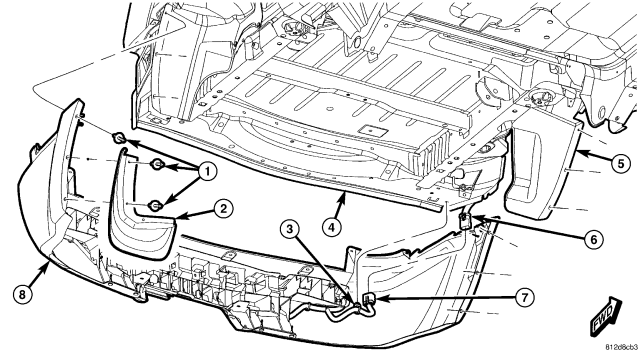

6. Remove the fascia (8) and disconnect the electrical connector (6 & 7).
7. Remove the two push pin fasteners (3).

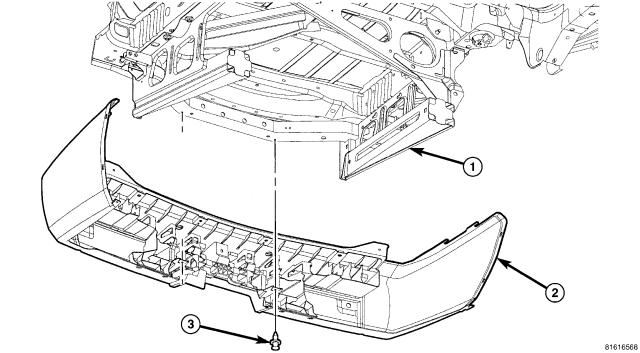

8. Remove the four push pin fasteners and the energy absorber.
9. Disconnect the park assist electrical sensors.
10. Remove the park assist sensors.
INSTALLATION
1. Install the park assist sensors, if equipped.
2. Install the energy absorber and install the four push pin fasteners.
3. Position the fascia onto the vehicle and connect the electrical connector.
4. Install the two push pin fasteners (3).
5. Slightly spread the sides of the fascia to clear the painted surfaces.
6. Direct the slots in the upper sides of the fascia onto the two t-pushpins (4) on either side.
7. Install the two screws (2) and four push pin fasteners (1).
8. Install the two lower push pin fasteners (3).
9. Install the nuts (1) and tighten to 9 N·m (80 in. lbs.).
10. Install new rivets (1) attaching the wheelhouse splash shields (4) to the fascia.
