2007 Commander XK Factory Service Manual 13 - FRAME & BUMPERS

SKID PLATE-FRONT

REMOVAL

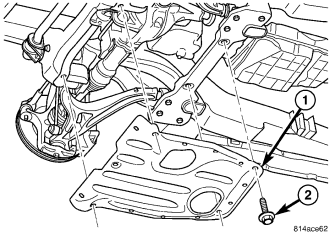

1. Remove the four bolts (2) and remove the skid plate (1).

INSTALLATION




1. Install the skid plate (1) and install the four bolts (2).
2. Tighten the bolts to 28 N·m (21 ft. lbs.).
