ANTENNA CABLE - SATELLITE RADIO
REMOVAL
1. Disconnect and isolate the battery cable.
2. Remove D-pillar trim.
3. Remove headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).

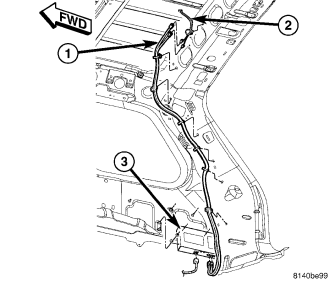

4. Disconnect antenna cable (1) from antenna (2).
5. Cut both ends of cable as far back from the antenna and the receiver and leave remaining in the harness.
6. Disconnect antenna cable from satellite receiver.
INSTALLATION
1. Connect antenna cable to satellite receiver.
2. Install antenna cable retainers to D-pillar and roof panel.
3. Connect antenna cable (1) to satellite antenna (2).
4. Install headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
5. Install D-pillar trim.
6. Connect battery negative cable.
