PLAYER - DVD
DESCRIPTION
The video entertainment system, consist of:
- Battery powered remote control
- DVD player located at the end of the center floor console
- Two headsets
- Video monitor located on the headliner
In addition to video DVDs, the system will play audio DVDs, audio CDs, MP3 audio disc, and video CDs. There are plug-in jacks on the DVD player to show video directly from a video camera, connect video games for display on the screen, and play music directly from a MP3 player.
REMOVAL
1. Disconnect and isolate the battery negative cable.

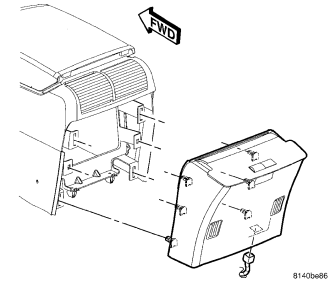

2. Using a trim stick, gently pry on the sides of the DVD player and separate from console.
3. Disconnect electrical harness connector from DVD player.
INSTALLATION
1. Connect electrical harness connector to DVD player.
2. Position player to console and press into place.
3. Connect battery negative cable.
