SPEAKER
DESCRIPTION
STANDARD
The standard equipment speaker system includes speakers in six locations. One 6.4 centimeter (2.50 inch) diameter tweeter is installed on each end of the instrument panel. One 15.2 by 22.9 centimeter (6 by 9 inch) full-range speaker is located in each front door. There is also one full-range 16.5 centimeter (6.5 inch) diameter full-range speaker located in each rear door.
BOSTON ACOUSTICS
The Boston Acoustics speaker system includes speakers in six locations. Each of the standard speakers is replaced with Boston Acoustics speakers. One 6.4 centimeter (3.50 inch) diameter speaker is installed on each end of the instrument panel. One 15.2 by 22.9 centimeter (6 by 9 inch) speaker is located in each front door. One 16.5 centimeter (6.5 inch) diameter speaker is located in each rear door. The Boston Acoustics speaker system also includes an amplifier. The total available power of the premium speaker system is approximately 288 watts.
REMOVAL

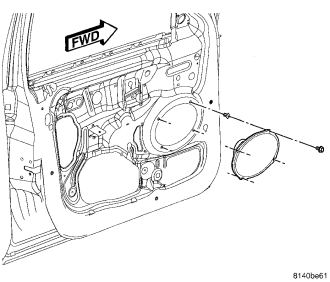

FRONT DOOR
1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel (Refer to 23 - BODY/DOOR - FRONT/TRIM PANEL - REMOVAL).
3. Remove mounting fasteners.
4. Remove speaker from door.

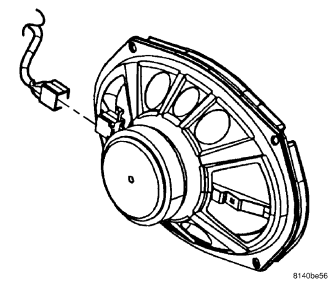

5. Disconnect wire harness connector from speaker.

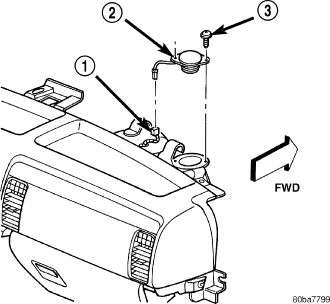

INSTRUMENT PANEL
WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.
1. Disconnect and isolate the battery negative cable.
2. Remove speaker grille from instrument panel.
3. Remove speaker from instrument panel.
4. Disconnect wire harness connector from speaker.

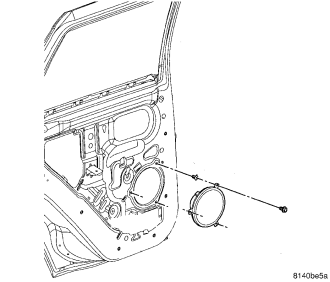

REAR DOOR
1. Disconnect and isolate the battery negative cable.
2. Remove rear door trim panel (Refer to 23 - BODY/DOORS - REAR/TRIM PANEL - REMOVAL).
3. Remove mounting fasteners.
4. Remove speaker from door.

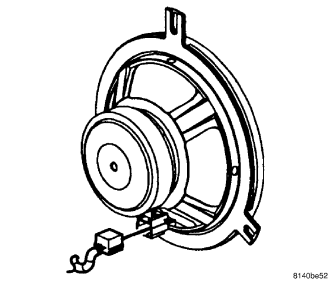

5. Disconnect wire harness connector from speaker.
INSTALLATION
FRONT DOOR
1. Connect wire harness connector to speaker.
2. Position speaker to door.
3. Install and tighten mounting fasteners.
4. Install front door trim panel.
5. Connect battery negative cable.
INSTRUMENT PANEL
1. Connect wire harness connector to speaker.
2. Position speaker to instrument panel.
3. Install and tighten mounting fasteners.
4. Install speaker grille.
5. Connect battery negative cable.
REAR DOOR
1. Connect wire harness connector to speaker.
2. Position speaker to door.
3. Install and tighten mounting fasteners.
4. Install rear door trim panel.
5. Connect battery negative cable.
