P0758-2-3 SOLENOID
For a complete wiring diagram Refer to Section 8W
Theory of Operation
The 2-3 Solenoid is activated when the Transmission Control Module (TCM) determines that the transmission must shift into or out of 3rd gear. The solenoid is only activated during the shifting of the transmission. When the solenoid is activated hydraulic pressure is applied to the proper shift elements in the transmission to allow the desired shift. Once the shift is completed the solenoid is turned off.
- When Monitored:
When both the 2-3 Solenoid and the Solenoid Supply voltage is active.
- Set Condition:
When 2-3 Solenoid is turned on and the TCM detects any of the following in the 2-3 Solenoid or circuit: open, short to ground, short to voltage, or the solenoid driver in the TCM.
| Possible Causes |
| (T74) 2-3 SOLENOID CONTROL CIRCUIT OPEN |
| (T74) 2-3 SOLENOID CONTROL CIRCUIT SHORT TO GROUND |
| (T74) 2-3 SOLENOID CONTROL CIRCUIT SHORT TO ANOTHER CIRCUIT |
| 2-3 SOLENOID |
| TRANSMISSION CONTROL MODULE |
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)
Diagnostic Test
1. CHECK IF THE DTC IS CURRENTNOTE: When the Transmission Control Module (TCM) detects and stores a DTC, the TCM also stores the vehicles operating conditions under which the DTC originally set. This information is located in the scan tool under Environmental Data. Before erasing any stored DTCs, record any available data to assist in duplicating the conditions in which the DTC originally set.
Turn the ignition off to the lock position.
With the scan tool, erase Transmission DTC's.
Using the Environmental Data recorded earlier, try to duplicate the conditions in which the DTC originally set. It may be necessary to test drive the vehicle.
With the scan tool, read Transmission DTC's.
Did the DTC P0757 reset?
Yes
- Go To 2
No
- Go To 6
2. CHECK THE (T74) 2-3 SOLENOID CONTROL CIRCUIT FOR AN OPEN
Turn the ignition off to the lock position.
Disconnect the TCM C2 harness connector.
Disconnect the Transmission Electrohydraulic Control Unit Assembly harness connector.

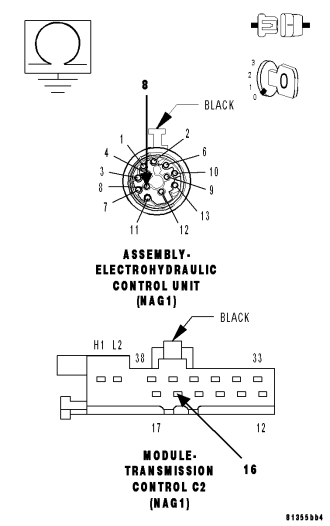

Measure the resistance of the (T74) 2-3 Solenoid Control circuit between the TCM C2 harness connector and the Transmission Electrohydraulic Control Unit Assembly harness connector.
Is the resistance below 5.0 ohms?
Yes
- Go To 3
No
- Repair the (T74) 2-3 Solenoid Control circuit for an open.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)
3. CHECK THE (T74) 2-3 SOLENOID CONTROL CIRCUIT FOR A SHORT TO GROUND

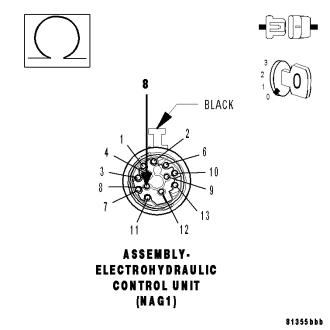

Measure the resistance between ground and the (T74) 2-3 Solenoid Control circuit.
Is the resistance below 5.0 ohms?
Yes
- Repair the (T74) 2-3 Solenoid Control circuit for a short to ground.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)
No
- Go To 4
4. CHECK THE (T74) 2-3 SOLENOID CONTROL CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT
Measure the resistance between the (T74) 2-3 Solenoid Control circuit and every other circuit in the Transmission Electrohydraulic Control Unit Assembly harness connector.
Is the resistance below 5.0 ohms between the (T74) 2-3 Solenoid Control circuit and any other circuit(s) in the Transmission Electrohydraulic Control Unit Assembly harness connector?
Yes
- Repair the (T74) 2-3 Solenoid Control circuit for another circuit.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)
No
- Go To 5
5. CHECK THE 2-3 SOLENOID
Reconnect the Transmission Electrohydraulic Control Unit Assembly harness connector.
Measure the resistance of the 2-3 Solenoid between the (T74) 2-3 Solenoid Control circuit and the (T78) Solenoid Voltage Supply circuit in the TCM C2 harness connector.
Is the resistance between 2.5 and 6.5 ohms?
Yes
- Using the schematics as a guide, check the Transmission Control Module (TCM) pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the TCM per the Service Information. Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/TRANSMISSION CONTROL MODULE for the appropriate service procedure.
- Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)
No
- Replace the 2-3 Solenoid per the Service Information.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)
6. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
Wiggle the wiring and connectors while checking for any possible open or shorted circuits.
Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.
Were there any problems found?
Yes
- Repair as necessary.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)
No
- Test Complete.
