U1002-PTS DISPLAY COMMUNICATION CIRCUIT LOW

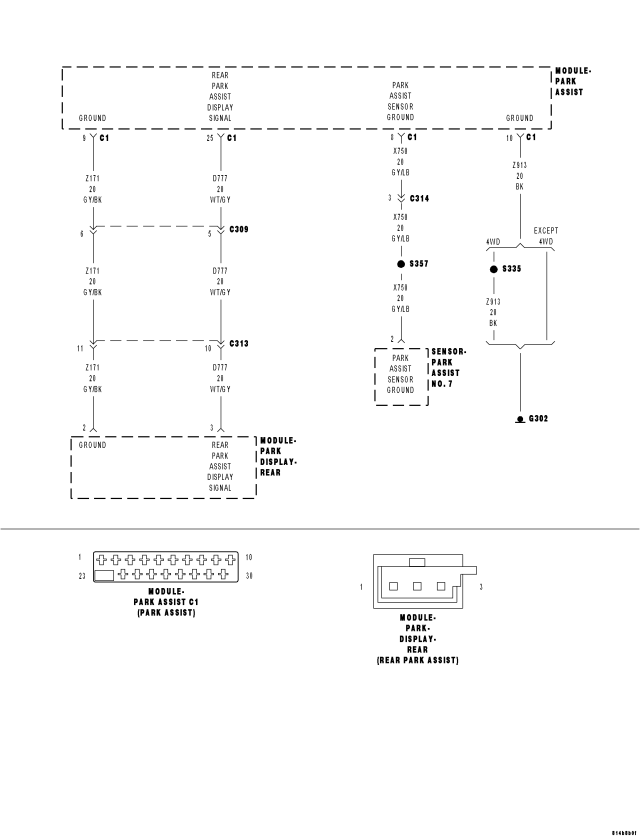

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
While the vehicle is in reverse for speeds less than 16km/h.
- Set Condition:
Display data line low.
| Possible Causes |
| (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT SHORT TO THE (Z171) PARK ASSIST DISPLAY GROUND CIRCUIT |
| (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT SHORT TO THE (X750) PARK ASSIST SENSOR GROUND CIRCUIT |
| (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT SHORT TO THE (Z913) PARK ASSIST MODULE GROUND CIRCUIT |
| (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT SHORT TO GROUND |
| PARK ASSIST DISPLAY |
| PARK ASSIST MODULE |
Diagnostic Test
1. CHECK FOR ACTIVE DTC: U1002-PTS DISPLAY COMMUNICATION CIRCUIT LOWTurn the ignition on.
Apply the vehicle park brake.
Shift the transmission into reverse.
With the scan tool, record and erase Park Assist Module DTCs.
Wait 30 seconds.
With the scan tool, read Park Assist Module DTCs.
Is DTC: U1002-PTS DISPLAY COMMUNICATION CIRCUIT LOW active?
Yes
- Go To 2
No
- The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. CHECK PARK ASSIST MODULE FOR AN INTERNAL SHORT TO GROUND
Turn the ignition off.
Disconnect the Park Assist Module harness connector.
Measure the resistance between ground and the (D777) Park Assist Display Signal circuit.
Is the resistance below 10K ohms?
Yes
- Go To 3
No
- Replace the Park Assist Module in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
3. CHECK THE (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT FOR A SHORT TO THE (Z171) PARK ASSIST DISPLAY GROUND CIRCUIT
Disconnect the Park Assist Display harness connector.

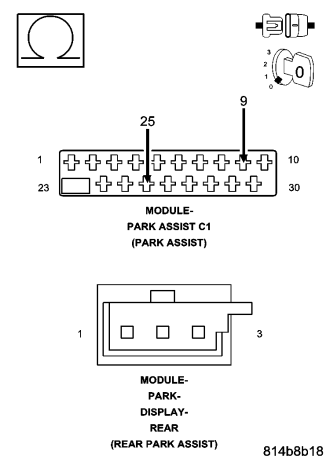

Measure the resistance between the (D777) Park Assist Display Signal circuit and the (Z171) Park Assist Display Ground circuit.
Is the resistance below 10K ohms?
Yes
- Repair the (D777) Park Assist Display Signal circuit for a short to the (Z171) Park Assist Display Ground circuit.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 4
4. CHECK THE (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT FOR A SHORT TO THE (X750) PARK ASSIST SENSOR GROUND CIRCUIT

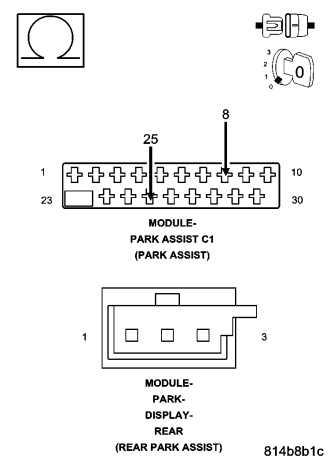

Measure the resistance between the (D777) Park Assist Display Signal circuit and the (X750) Park Assist Sensor Ground circuit.
Is the resistance below 10K ohms?
Yes
- Repair the (D777) Park Assist Display Signal circuit for a short to the (X750) Park Assist Sensor Ground circuit.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 5
5. CHECK THE (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT FOR A SHORT TO THE (Z913) PARK ASSIST MODULE GROUND CIRCUIT

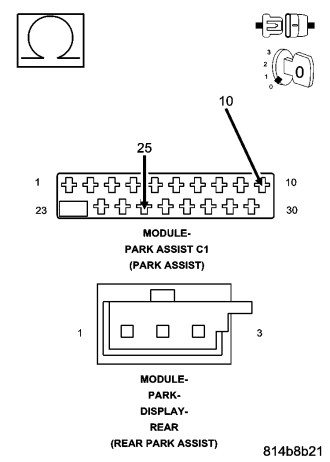

Measure the resistance between the (D777) Park Assist Display Signal circuit and the (Z913) Park Assist Module Ground circuit.
Is the resistance below 10K ohms?
Yes
- Repair the (D777) Park Assist Display Signal circuit for a short to the (Z913) Park Assist Module Ground circuit.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 6
6. CHECK THE (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT FOR A SHORT TO GROUND
Measure the resistance between ground and the (D777) Park Assist Display Signal circuit.
Is the resistance below 10K ohms?
Yes
- Repair the (D777) Park Assist Display Signal circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Park Assist Display in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
