CONNECTOR/GROUND/SPLICE LOCATION
DESCRIPTION
This section provides illustrations identifying connector, ground and splice locations in the vehicle. Connector, ground and splice indexes are provided. Use the wiring diagrams in each section for connector, ground and splice identification. Refer to the appropriate index for the proper figure number. For items that are not shown in this section N/S is placed in the Fig. column.
| CONNECTOR NAME/NUMBER |
COLOR |
LOCATION |
FIG. |
| Actuator-Blend Door-Left |
BK |
Left Side HVAC Unit |
LEFT SIDE HVAC |
| Actuator-Blend Door-Rear |
BK |
On Rear HVAC Unit |
REAR HVAC |

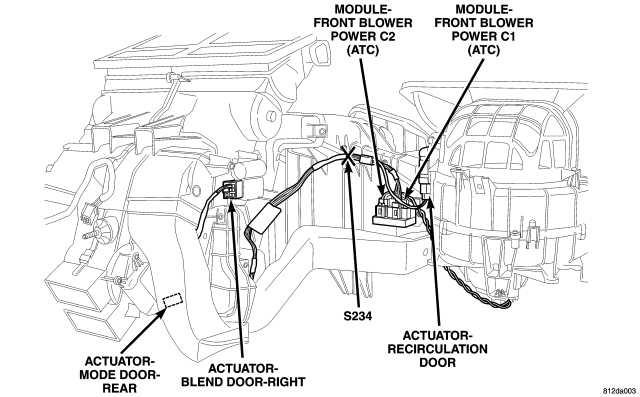

| Actuator-Blend Door-Right |
BK |
Center HVAC Unit |
RIGHT SIDE HVAC |

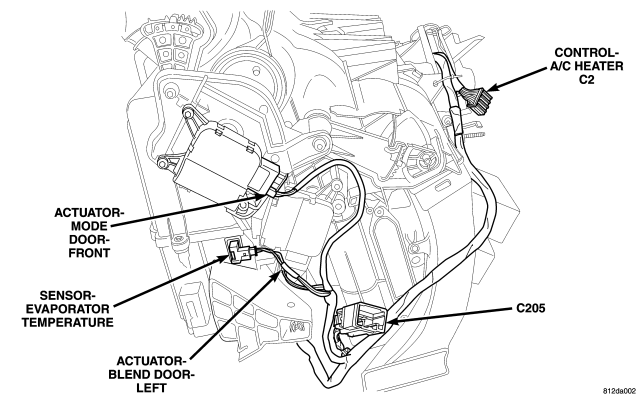

| Actuator-Mode Door-Front |
BK |
Left Side HVAC Unit |
LEFT SIDE HVAC |
| Actuator-Mode Door-Rear |
BK |
Center HVAC Unit |
RIGHT SIDE HVAC |
| Actuator-Mode Door-Second Row (Third Seat) |
BK |
On Rear HVAC Unit |
REAR HVAC |
| Actuator-Recirculation Door |
BK |
Right Side HVAC Unit |
RIGHT SIDE HVAC |

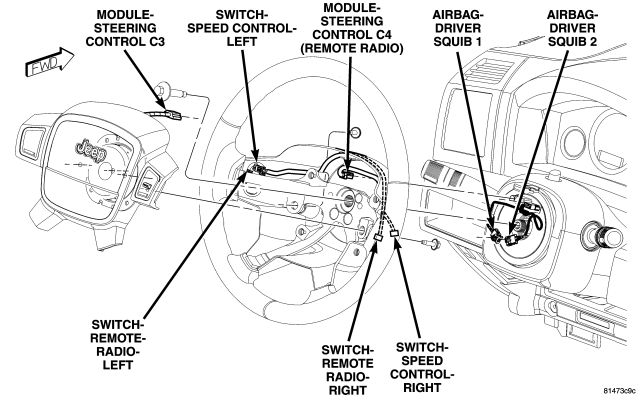

| Airbag-Driver Squib 1 |
BK/YL |
Rear of Steering Wheel Pad |
STEERING WHEEL |
| Airbag-Driver Squib 2 |
BR/YL |
Rear of Steering Wheel Pad |
STEERING WHEEL |

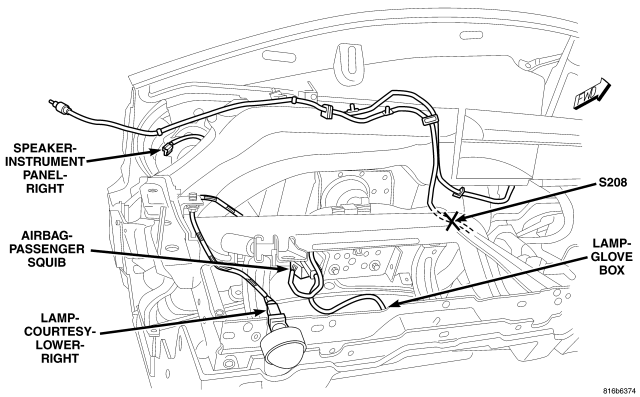

| Airbag-Passenger Squib |
YL |
Passenger Side Instrument Panel |
RIGHT INSTRUMENT PANEL |
| Airbag-Side Curtain-Left |
YL |
Left Upper Rear Body |
LEFT REAR BODY |
| Airbag-Side Curtain-Right |
YL |
Right Upper Rear Body |
RIGHT REAR BODY |
| Amplifier-Radio C1 (Premium Audio) |
- |
Left Rear Floor of Cargo Compartment |
LEFT REAR BODY |
| Amplifier-Radio C2 (Premium Audio) |
- |
Left Rear Floor of Cargo Compartment |
LEFT REAR BODY |

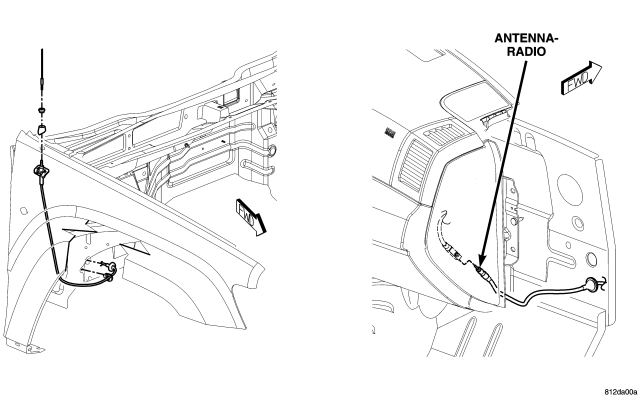

| Antenna-Radio (Base Audio) |
- |
Right Side Instrument Panel |
RADIO ANTENNA (BASE) |
| Antenna-Radio (Premium Audio) |
- |
Right Rear Body |
RIGHT REAR BODY |

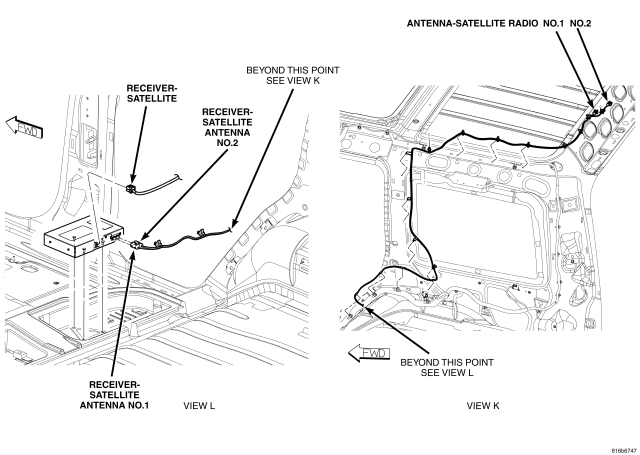

| Antenna-Satellite Radio No. 1 |
- |
Center Rear Roof |
SATELLITE RADIO RECEIVER AND ANTENNA |
| Antenna-Satellite Radio No. 2 |
- |
Center Rear Roof |
SATELLITE RADIO RECEIVER AND ANTENNA |

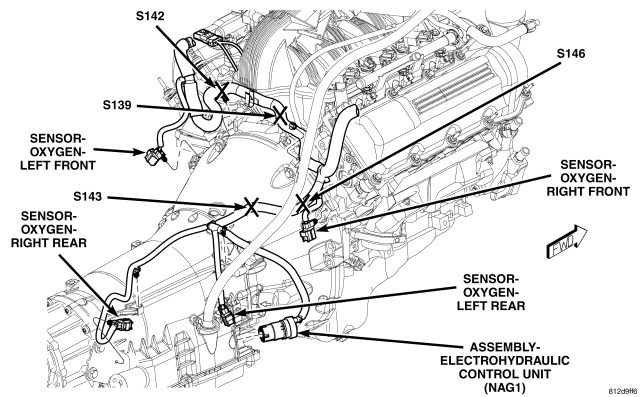

| Assembly-Electrohydraulic Control Unit (NAG1) |
- |
Right Side of Transmission |
TRANSMISSION (3.7L) |
| Assembly-Exhaust Gas Recirculation Valve (3.7L) |
BK |
Left Rear Top of Engine |
LEFT SIDE ENGINE (3.7L) |
| Assembly-Exhaust Gas Recirculation Valve (4.7L) |
BK |
Left Rear Top of Engine |
LEFT SIDE ENGINE (4.7L) |

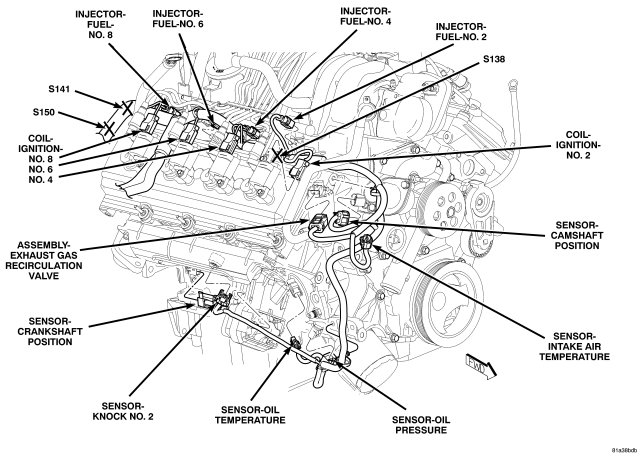

| Assembly-Exhaust Gas Recirculation Valve (5.7L) |
BK |
Right Front of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |

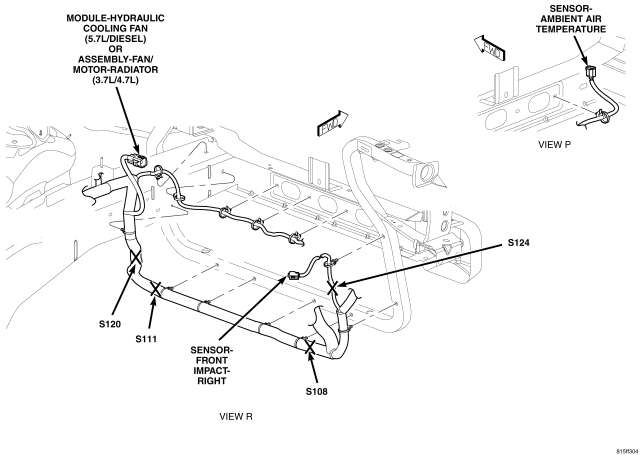

| Assembly-Fan/Motor-Radiator (3.7L/4.7L) |
- |
On Fan Module Behind Radiator |
FRONT ENGINE COMPARTMENT |

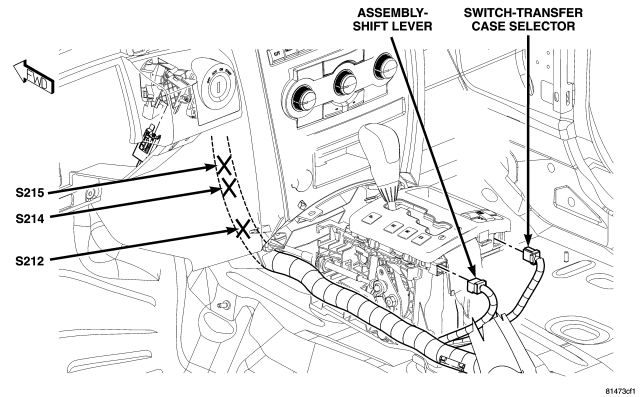

| Assembly-Shift Lever |
- |
At Base of Shift Lever |
SHIFT ASSEMBLY |

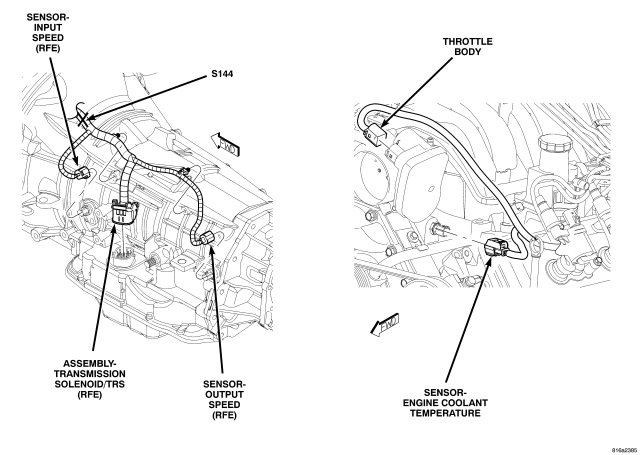

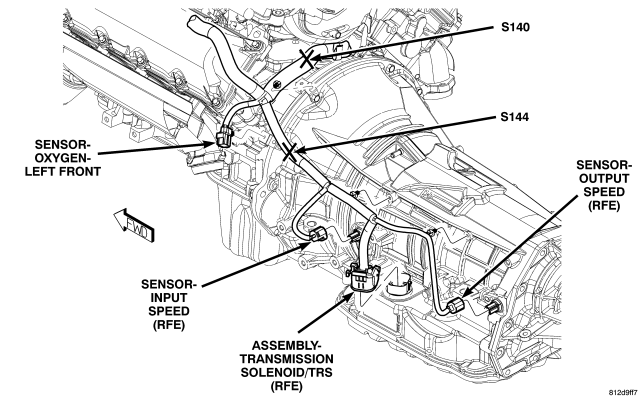

| Assembly-Transmission Solenoid/TRS |
BK |
Left Side of Transmission |
TRANSMISSION (4.7L), LEFT TRANSMISSION AND LEFT FRONT ENGINE (5.7L) |
| Battery-Negative (Diesel) |
- |
- |
N/S |

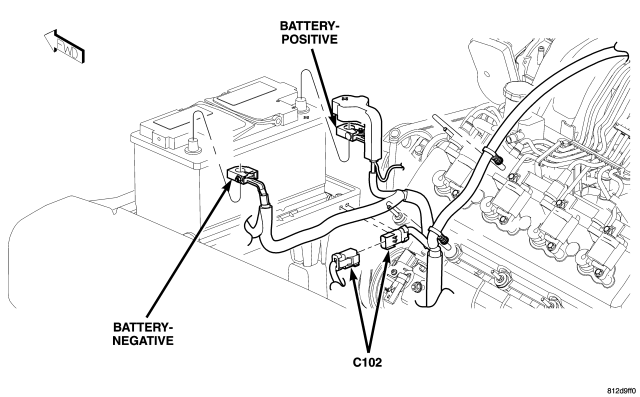

| Battery-Negative (Gas) |
- |
Left Front Engine Compartment |
BATTERY (3.7L/4.7L), BATTERY (5.7L) |

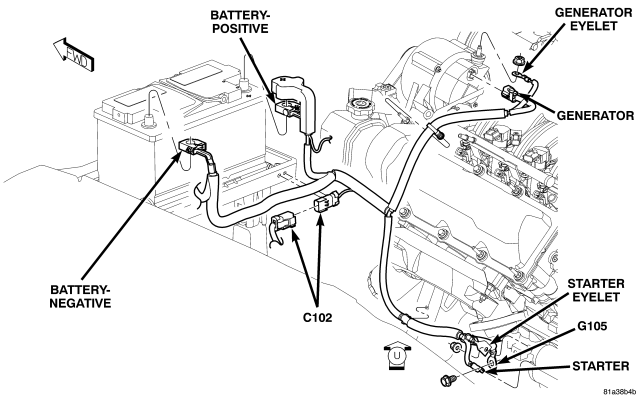

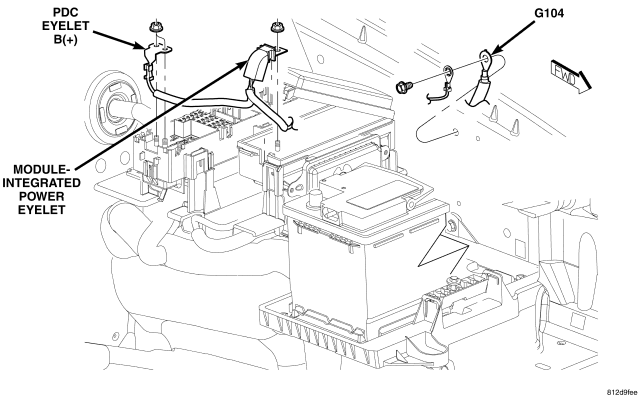

| Battery-Positive |
- |
Left Front Engine Compartment |
BATTERY (3.7L/4.7L), BATTERY (5.7L) |

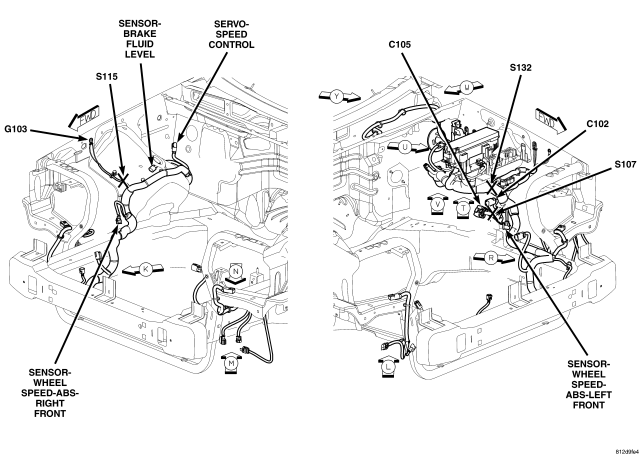

| C102 |
BK |
Left Side of Engine |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT, BATTERY (3.7L/4.7L), BATTERY (5.7L) |

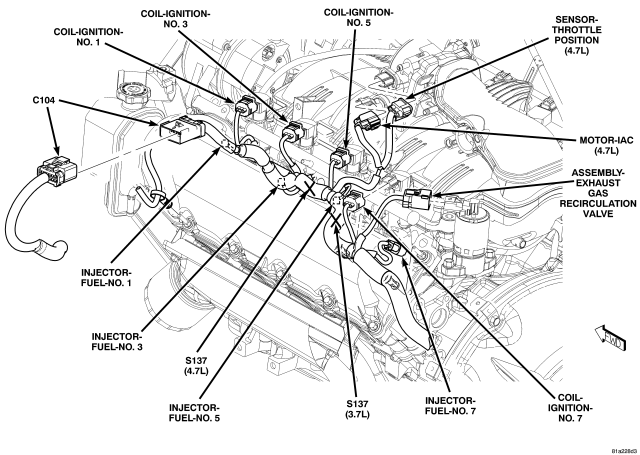

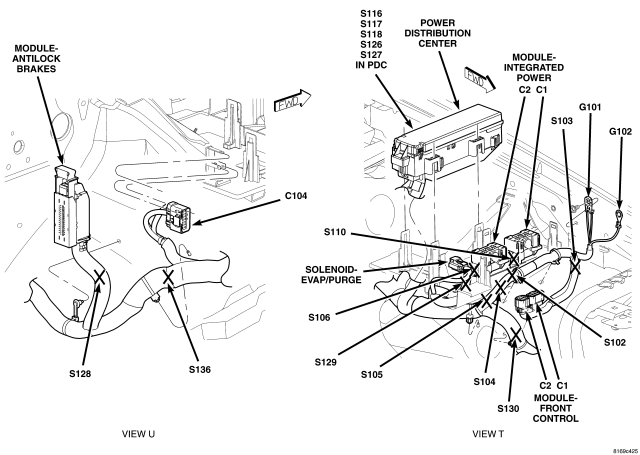

| C104 |
- |
Left Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT, LEFT SIDE ENGINE (3.7L), LEFT SIDE ENGINE (4.7L), ENGINE (5.7L) |

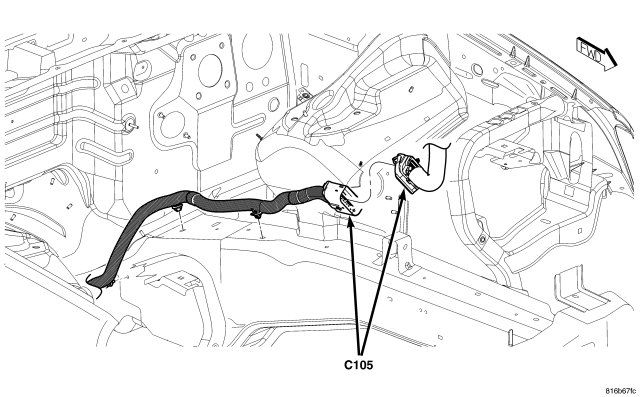

| C105 |
- |
Left Front underbody |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT, LEFT FRONT UNDERBODY |
| C112 (5.7L) |
- |
Left Rear Engine |
ENGINE (5.7L) |
| C113 (Export) |
BK |
In Headlamp & Dash Harness |
N/S |

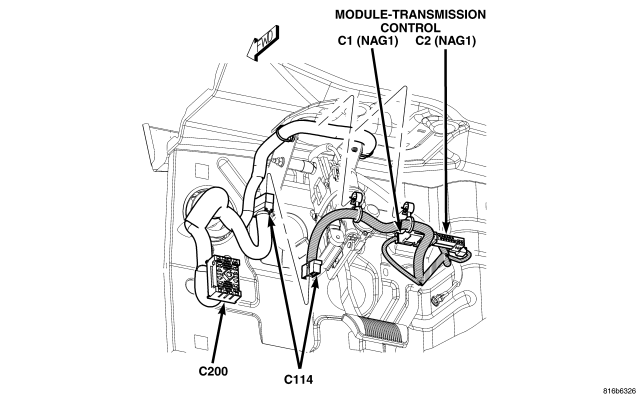

| C114 |
- |
Lower Left IP |
LOWER LEFT INSTRUMENT PANEL |

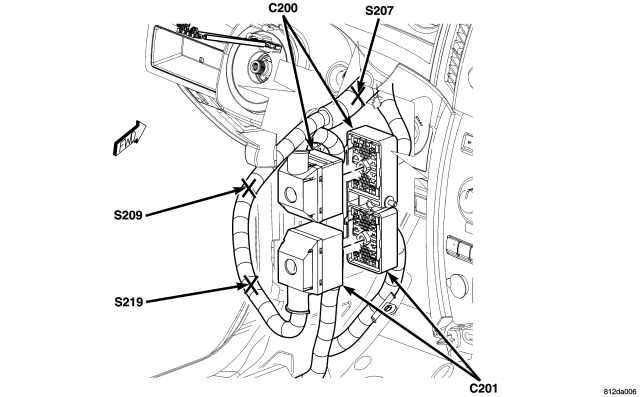

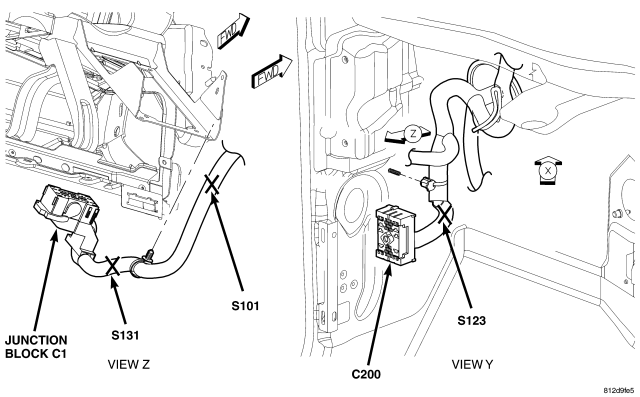

| C200 |
- |
Lower Left of Instrument Panel |
LEFT DASH INLINE CONNECTORS, LEFT KICK PANEL, LOWER LEFT INSTRUMENT PANEL |
| C201 |
- |
Lower Left of Instrument Panel |
LEFT KICK PANEL, LEFT FRONT BODY |

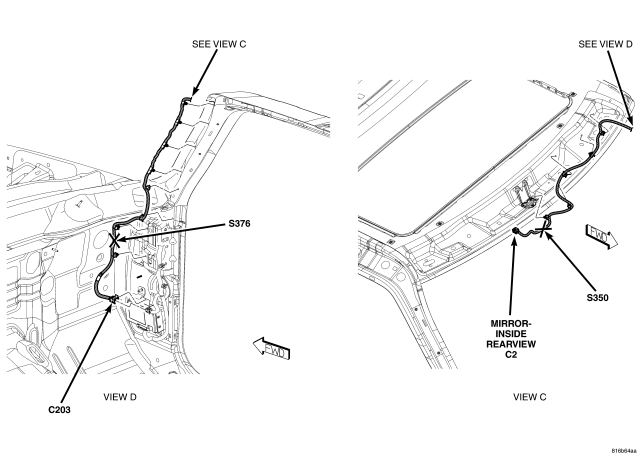

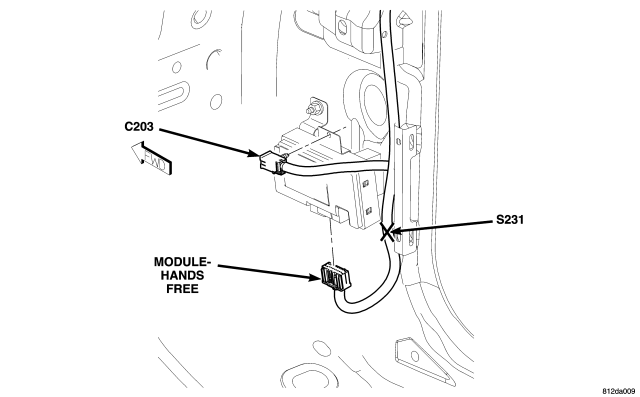

| C203 |
- |
Right Kick Panel |
RIGHT KICK PANEL, A-PILLAR |

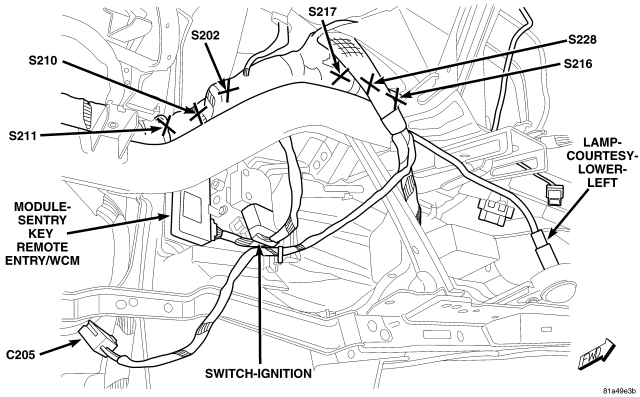

| C205 |
LT GY |
Lower Left of Instrument Panel |
LEFT SIDE HVAC, LOWER LEFT INSTRUMENT PANEL, MIDDLE LEFT INSTRUMENT PANEL |
| C206 |
- |
- |
N/S |

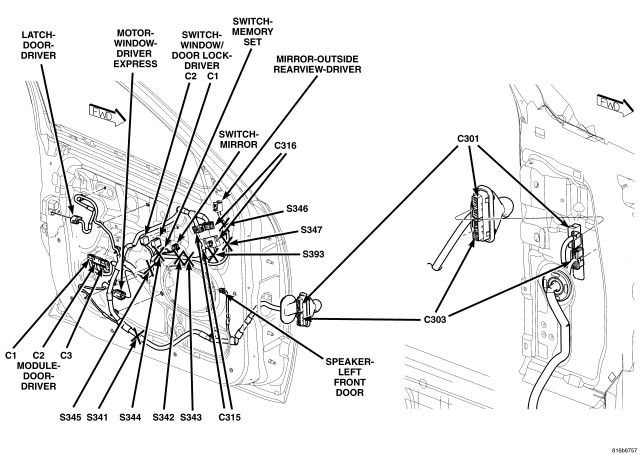

| C301 |
- |
Front of Left Front Door |
LEFT FRONT BODY, DRIVER DOOR |

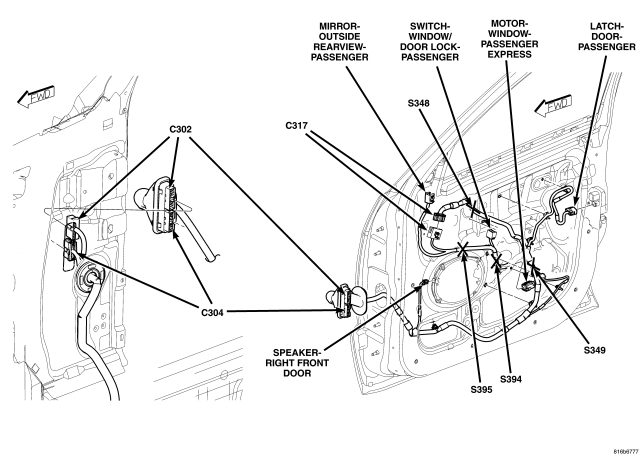

| C302 |
- |
Front of Right Front Door |
RIGHT SIDE BODY, PASSENGER DOOR |
| C303 |
- |
Front of Left Front Door |
LEFT FRONT BODY, DRIVER DOOR |
| C304 |
- |
Front of Right Front Door |
RIGHT SIDE BODY, PASSENGER DOOR |

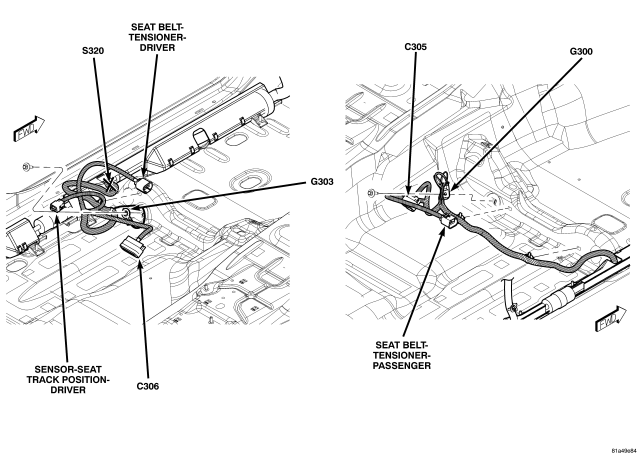

| C305 |
- |
Right Side Body Floor |
REAR BODY, PASSENGER SEAT BOTTOM |

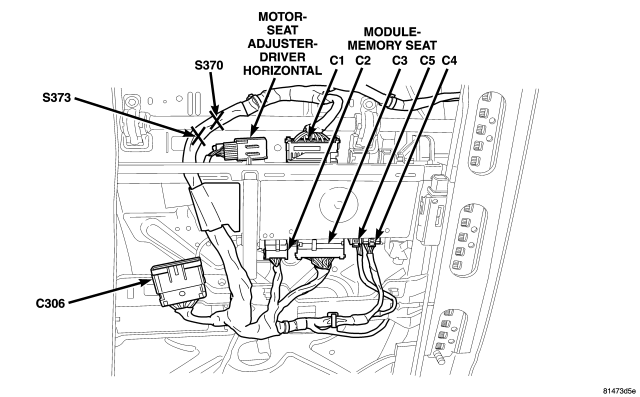

| C306 |
- |
Below Driver Door |
REAR BODY, DRIVER SEAT BOTTOM |

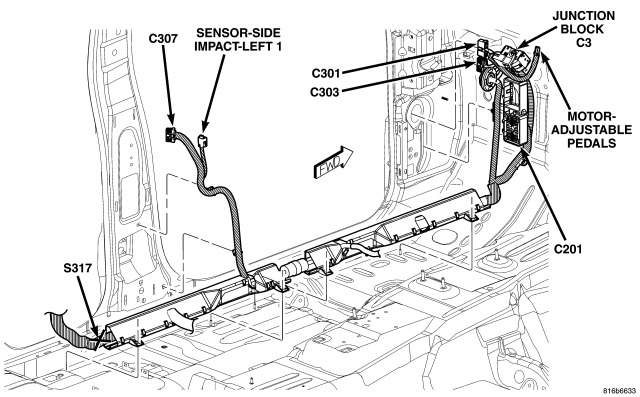

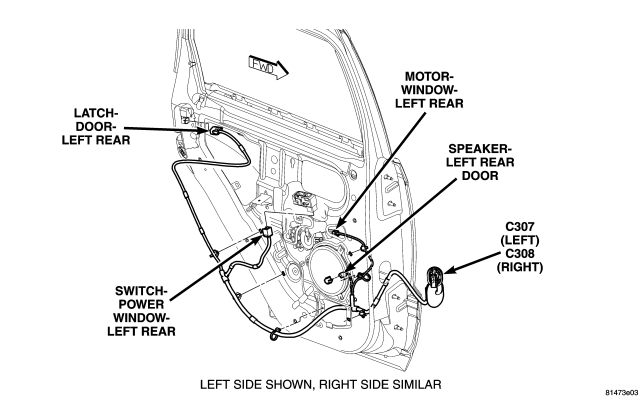

| C307 (Left) |
- |
Front of Left Rear Door |
LEFT FRONT BODY, REAR DOOR |

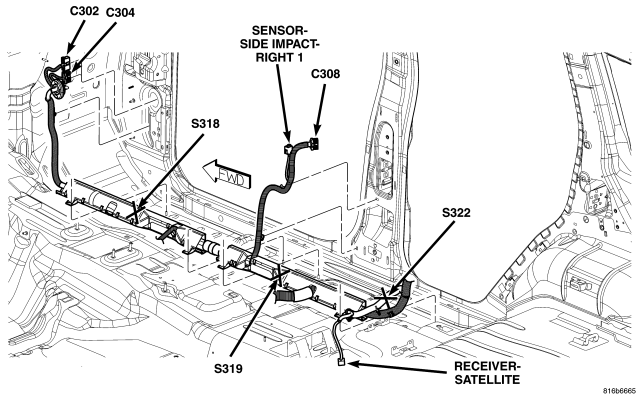

| C308 (Right) |
- |
Front of Right Rear Door |
RIGHT SIDE BODY, REAR DOOR |

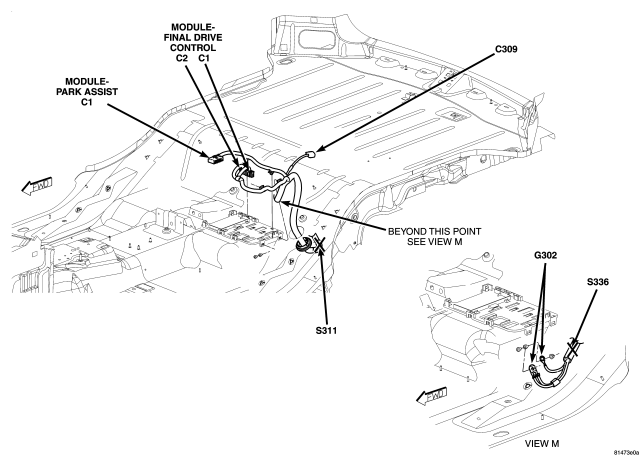

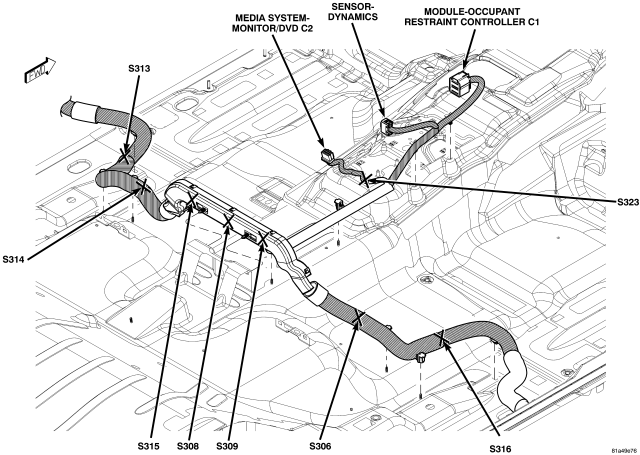

| C309 |
- |
Below Left Rear Door |
CENTER UNDER BODY |
| C310 |
- |
Top of Liftgate |
LEFT REAR BODY, LIFTGATE |

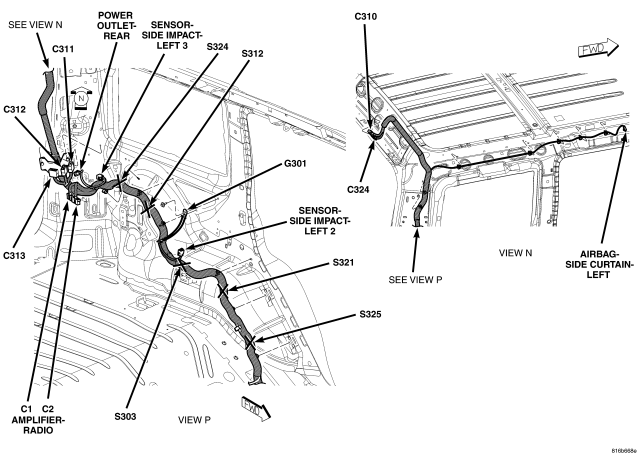

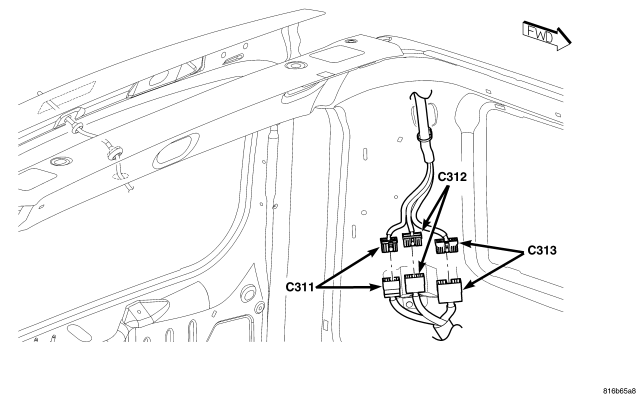

| C311 |
- |
Left Rear Headliner |
LEFT REAR HEADLINER, LEFT REAR BODY |
| C312 |
- |
Left Rear Headliner |
LEFT REAR HEADLINER, LEFT REAR BODY |
| C313 |
WT |
Left Rear Headliner |
LEFT REAR HEADLINER, LEFT REAR BODY |

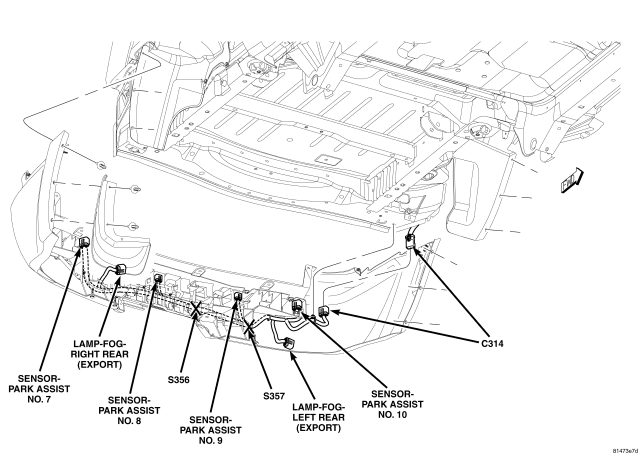

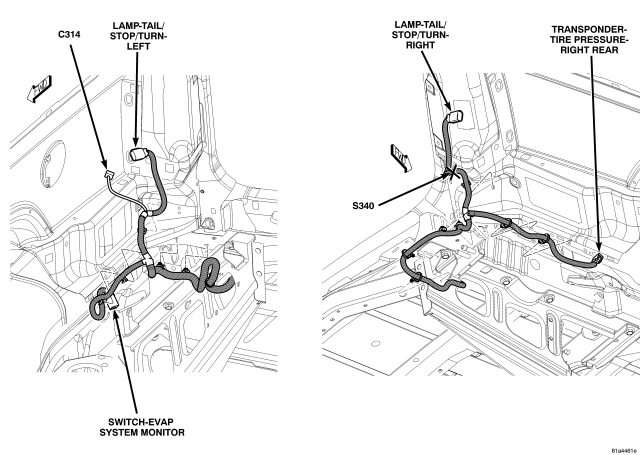

| C314 |
- |
Left Side Bumper |
LEFT & RIGHT REAR UNDERBODY, REAR BUMPER |
| C315 |
WT |
Driver Door |
DRIVER DOOR |
| C316 |
WT |
Driver Door |
DRIVER DOOR |
| C317 |
- |
Passenger Door |
PASSENGER DOOR |
| C318 |
GY |
Rear of Driver Seat |
N/S |

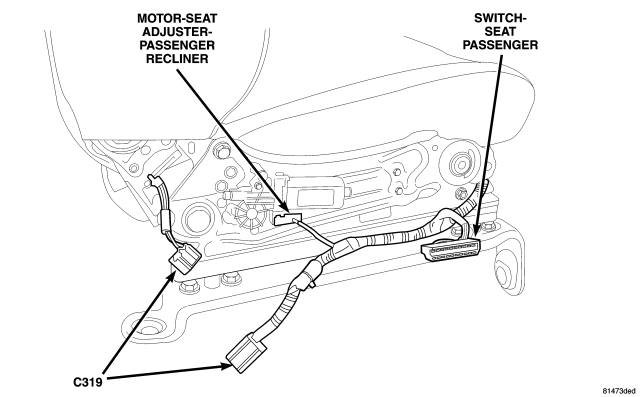

| C319 |
GY |
Right Rear of Passenger Seat |
PASSENGER SEAT SIDE |

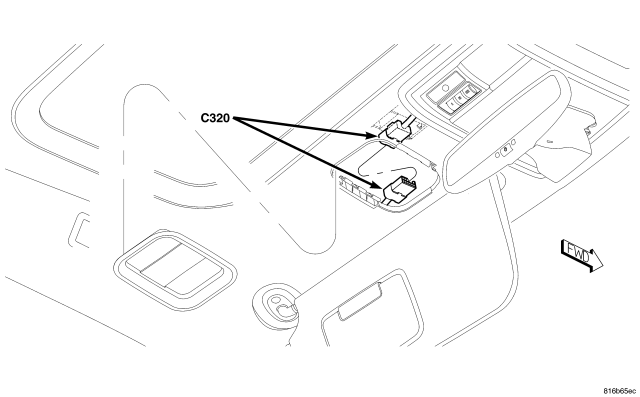

| C320 (Overhead Side) |
LT GY |
Right Rear Headliner |
LEFT FRONT HEADLINER |
| C320 (Sunroof Side) |
NAT |
Right Rear Headliner |
LEFT FRONT HEADLINER |
| C321 |
YL |
Under Driver Seat |
N/S |
| C322 |
YL |
Under Passenger Seat |
N/S |

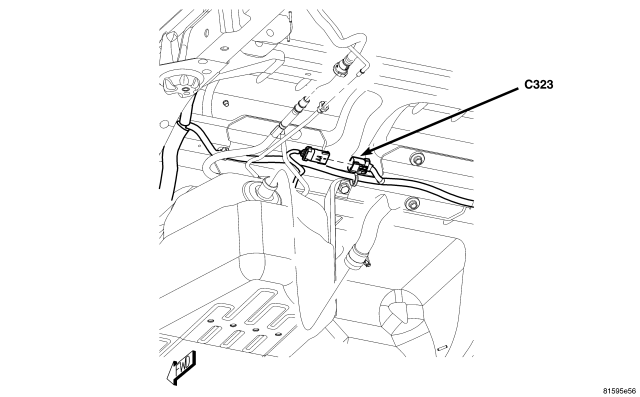

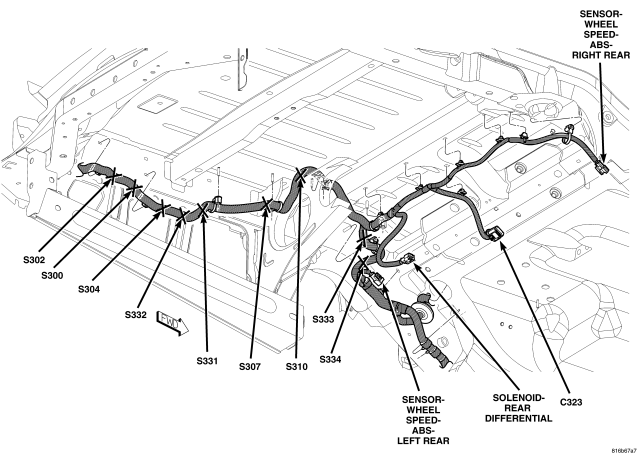

| C323 |
— |
Rear of Fuel Tank |
REAR UNDERBODY, FUEL TANK |
| C324 |
- |
Center Rear Roof |
LEFT REAR BODY |
| C325 |
- |
- |
N/S |
| C326 |
WT |
- |
N/S |
| C327 |
- |
- |
N/S |

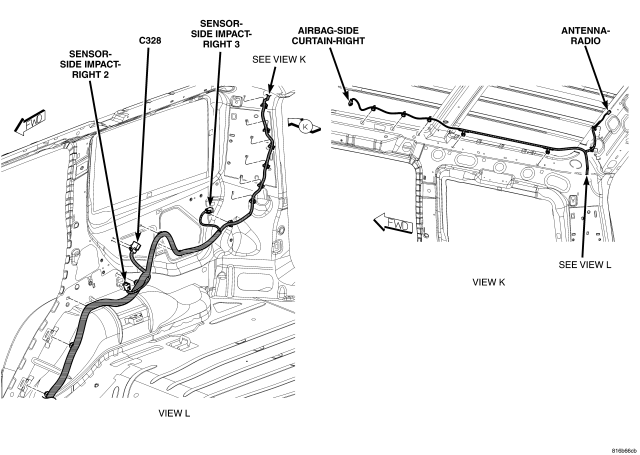

| C328 (Body Side) |
LT GY |
Right Side of Cargo Compartment |
RIGHT REAR BODY |
| C328 (HVAC Side) |
LT GY |
On Rear HVAC Unit |
REAR HVAC |
| Cluster C1 |
- |
Driver Side Instrument Panel |
N/S |
| Cluster C2 |
- |
Driver Side Instrument Panel |
N/S |
| Cluster C3 |
- |
Driver Side Instrument Panel |
N/S |
| Clutch-A/C Compressor (3.7L/4.7L) |
BK |
Front Top of Engine |
FRONT ENGINE (3.7L/4.7L) |

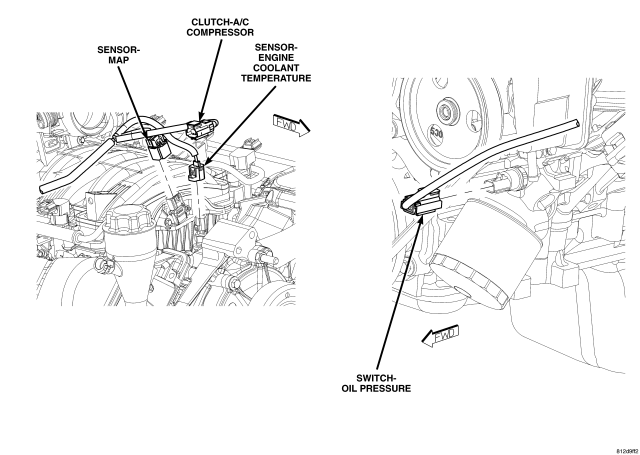

| Clutch-A/C Compressor (5.7L) |
BK |
Lower Left Front of Engine |
ENGINE (5.7L) |

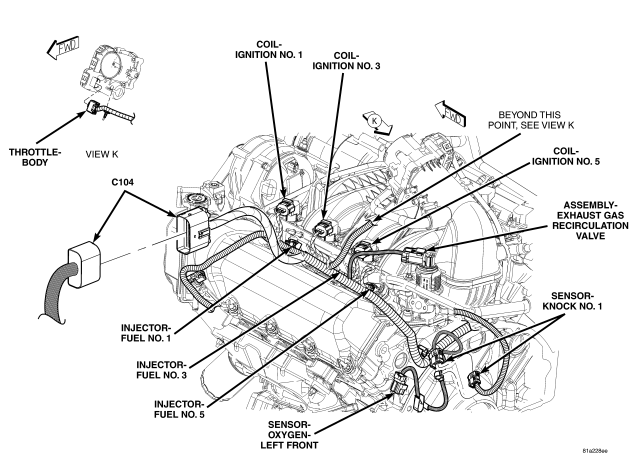

| Coil-Ignition-No. 1 (3.7L/4.7L) |
BK |
Left Top of Engine |
LEFT SIDE ENGINE (3.7L), LEFT SIDE ENGINE (4.7L) |

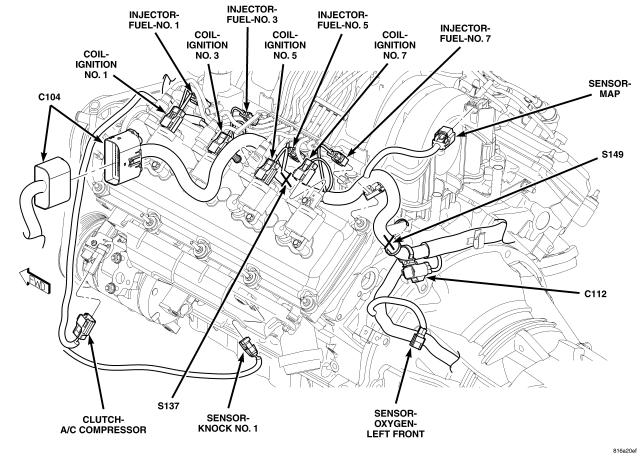

| Coil-Ignition-No. 1 (5.7L) |
BK |
Left Top of Engine |
ENGINE (5.7L) |

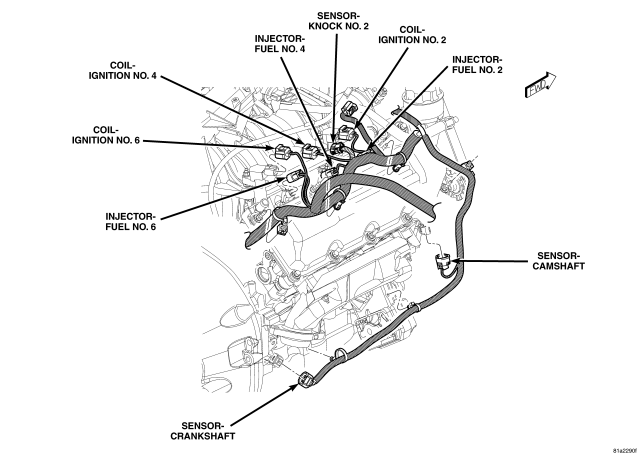

| Coil-Ignition-No. 2 (3.7L/4.7L) |
BK |
Right Top of Engine |
RIGHT SIDE ENGINE (3.7L), RIGHT REAR ENGINE (3.7L/4.7L) |
| Coil-Ignition-No. 2 (5.7L) |
BK |
Right Top of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |
| Coil-Ignition-No. 3 (3.7L/4.7L) |
BK |
Left Top of Engine |
LEFT SIDE ENGINE (3.7L), LEFT SIDE ENGINE (4.7L) |
| Coil-Ignition-No. 3 (5.7L) |
BK |
Left Top of Engine |
ENGINE (5.7L) |

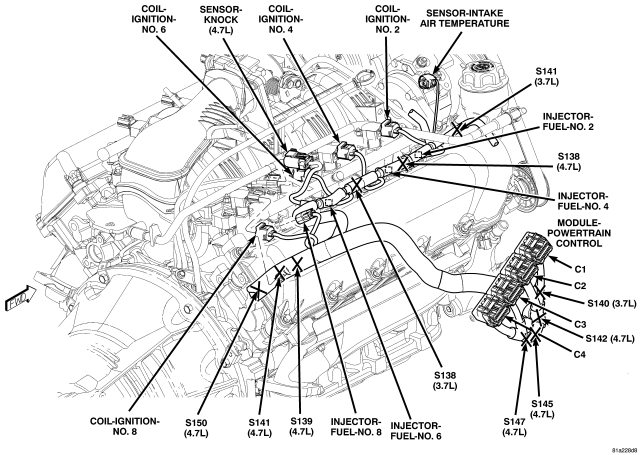

| Coil-Ignition-No. 4 (3.7L/4.7L) |
BK |
Right Top of Engine |
RIGHT SIDE ENGINE (3.7L), RIGHT REAR ENGINE (3.7L/4.7L) |
| Coil-Ignition-No. 4 (5.7L) |
BK |
Right Top of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |
| Coil-Ignition-No. 5 (3.7L/4.7L) |
BK |
Left Top of Engine |
LEFT SIDE ENGINE (3.7L), LEFT SIDE ENGINE (4.7L) |
| Coil-Ignition-No. 5 (5.7L) |
BK |
Left Top of Engine |
ENGINE (5.7L) |
| Coil-Ignition-No. 6 (3.7L/4.7L) |
BK |
Right Top of Engine |
RIGHT SIDE ENGINE (3.7L), RIGHT REAR ENGINE (3.7L/4.7L) |
| Coil-Ignition-No. 6 (5.7L) |
BK |
Right Top of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |
| Coil-Ignition-No. 7 (4.7L) |
BK |
Left Top of Engine |
LEFT SIDE ENGINE (4.7L) |
| Coil-Ignition-No. 7 (5.7L) |
BK |
Left Top of Engine |
ENGINE (5.7L) |
| Coil-Ignition-No. 8 (4.7L) |
BK |
Right Top of Engine |
RIGHT REAR ENGINE (3.7L/4.7L) |
| Coil-Ignition-No. 8 (5.7L) |
BK |
Right Top of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |

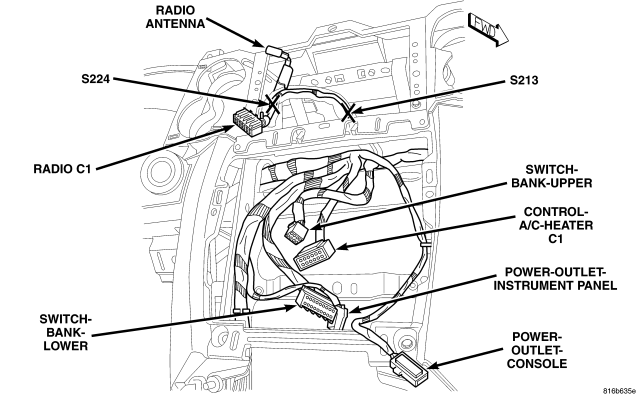

| Control-A/C-Heater C1 |
- |
Center Instrument Panel at Rear of Control |
CENTER STACK |

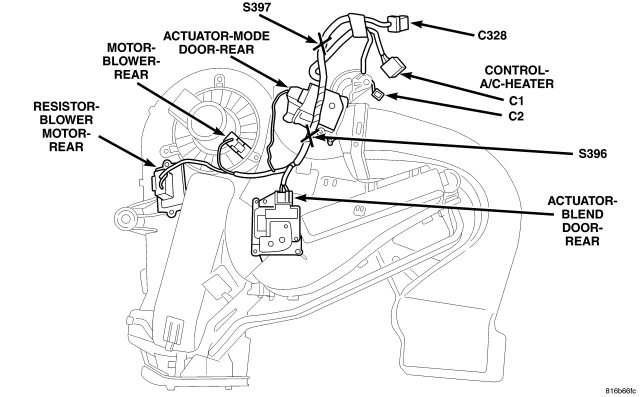

| Control-A/C-Heater C1 (Rear HVAC) |
NAT |
On Rear HVAC Unit |
REAR HVAC |
| Control-A/C-Heater C2 (ATC) |
- |
Center Instrument Panel |
LEFT SIDE HVAC |
| Control-A/C-Heater C2 (MTC) |
- |
Center Instrument Panel |
N/S |
| Control-A/C-Heater C2 (Rear HVAC) |
NAT |
On Rear HVAC Unit |
REAR HVAC |
| Control-A/C-Heater C3 (MTC) |
- |
Center Instrument Panel |
N/S |
| Control-A/C-Heater-Rear C1 |
NAT |
On Rear HVAC Harness |
N/S |
| Control-A/C-Heater-Rear C2 |
NAT |
On Rear HVAC Harness |
N/S |

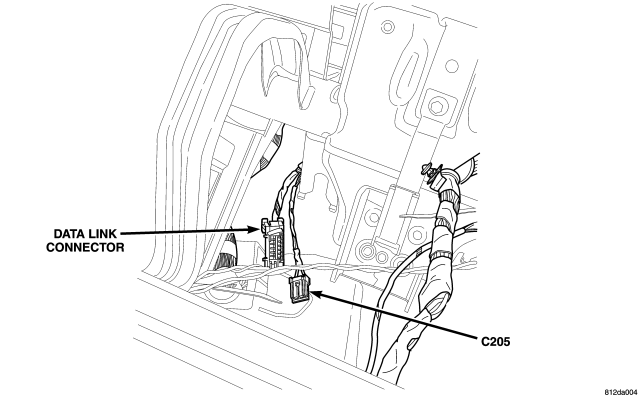

| Data Link Connector |
BK |
Lower Driver Side Instrument Panel |
LOWER LEFT INSTRUMENT PANEL |
| Display-Park Assist-Front |
- |
Center of Instrument Panel |
N/S |
| Display-Park Assist-Rear |
- |
Rear Center Headliner |
N/S |

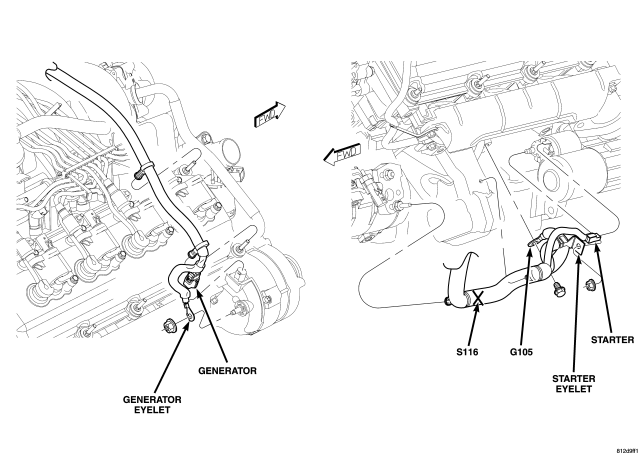

| Generator (3.7L/4.7L/5.7L) |
- |
Left Front Top of Engine |
BATTERY (3.7L/4.7L), GENERATOR AND STARTER (5.7L) |
| Generator-Eyelet |
- |
Left Front Top of Engine |
BATTERY (3.7L/4.7L), GENERATOR AND STARTER (5.7L) |

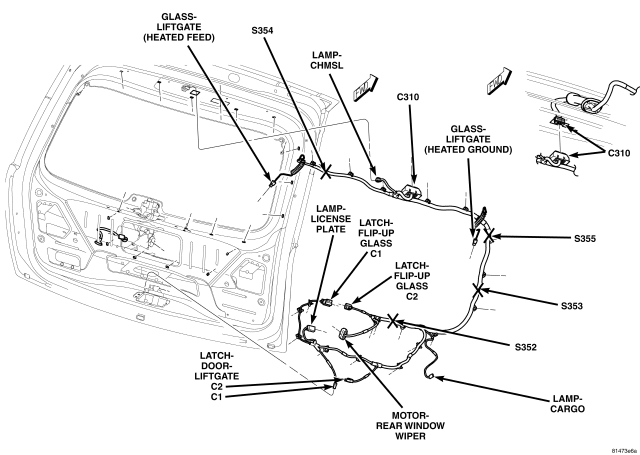

| Glass-Liftgate (Heated Feed) |
- |
Top Right of Liftgate |
LIFTGATE |
| Glass-Liftgate (Heated Ground) |
- |
Top Left of Liftgate |
LIFTGATE |

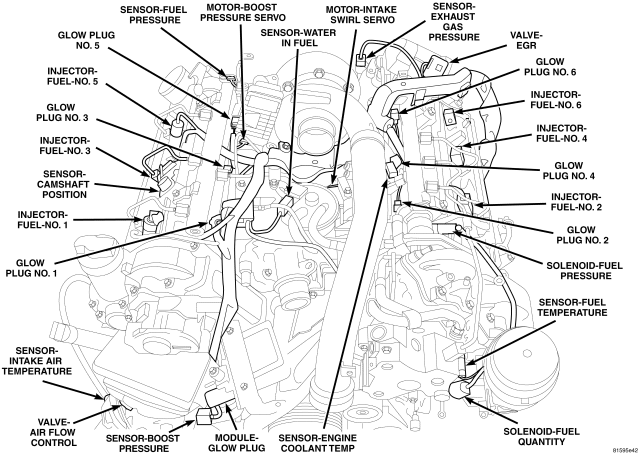

| Glow Plug NO. 1 |
BK |
Right Top of Engine |
ENGINE (3.0L) |
| Glow Plug NO. 2 |
BK |
Left Top of Engine |
ENGINE (3.0L) |
| Glow Plug NO. 3 |
BK |
Right Top of Engine |
ENGINE (3.0L) |
| Glow Plug NO. 4 |
BK |
Left Top of Engine |
ENGINE (3.0L) |
| Glow Plug NO. 5 |
BK |
Right Top of Engine |
ENGINE (3.0L) |
| Glow Plug NO. 6 |
BK |
Left Top of Engine |
ENGINE (3.0L) |
| Heater-Cabin |
- |
Mounted on HVAC |
N/S |
| Heater-Crankcase Vent |
BK |
In Crankcase Vent Tube Near Turbo |
N/S |
| Heater-Cushion Pad-Left |
LG |
Bottom of Driver Seat |
N/S |

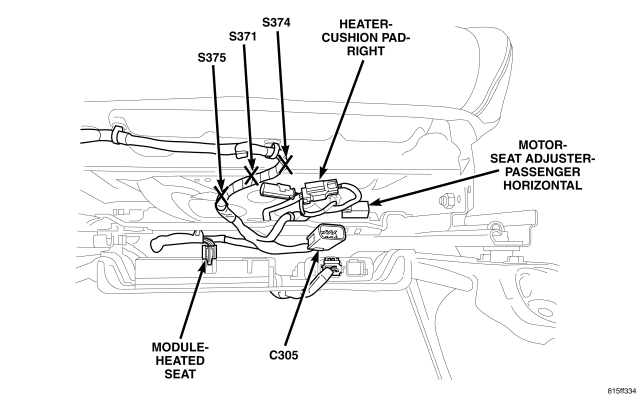

| Heater-Cushion Pad-Right |
LG |
Bottom of Passenger Seat |
PASSENGER SEAT BOTTOM |
| Heater-Seat Back-Left |
LG |
Under Left Side Cover of Seat |
N/S |
| Heater-Seat Back-Right |
LG |
Under Right Side Cover of Seat |
N/S |

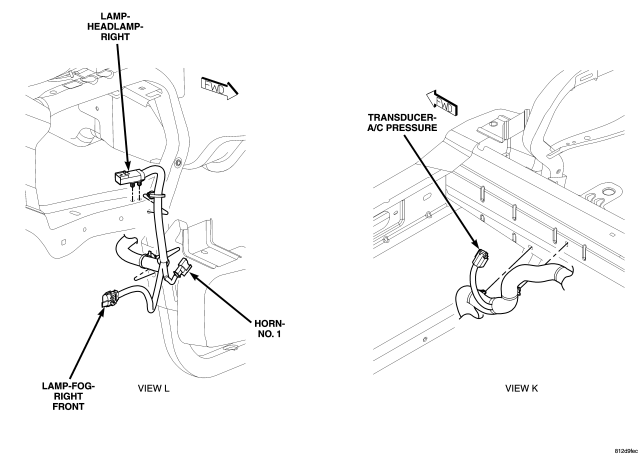

| Horn No. 1 |
BK |
Right Front Engine Compartment |
UPPER RIGHT FRONT ENGINE COMPARTMENT |
| Injector-Fuel-No. 1 (Diesel) |
BK |
Right Top of Engine |
ENGINE (3.0L) |
| Injector-Fuel-No. 1 (Gas) |
BK |
Left Front Top of Engine |
LEFT SIDE ENGINE (3.7L), LEFT SIDE ENGINE (4.7L), ENGINE (5.7L) |
| Injector-Fuel-No. 2 (Diesel) |
Left Top of Engine |
ENGINE (3.0L) |
|
| Injector-Fuel-No. 2 (Gas) |
BK |
Right Top of Engine |
RIGHT SIDE ENGINE (3.7L), RIGHT REAR ENGINE (3.7L/4.7L), LOWER RIGHT FRONT ENGINE (5.7L) |
| Injector-Fuel-No. 3 (Diesel) |
Right Top of Engine |
ENGINE (3.0L) |
|
| Injector-Fuel-No. 3 (Gas) |
BK |
Left Top of Engine |
LEFT SIDE ENGINE (3.7L), LEFT SIDE ENGINE (4.7L), ENGINE (5.7L) |
| Injector-Fuel-No. 4 (Diesel) |
Left Top of Engine |
ENGINE (3.0L) |
|
| Injector-Fuel-No. 4 (Gas) |
BK |
Right Top of Engine |
RIGHT SIDE ENGINE (3.7L), RIGHT REAR ENGINE (3.7L/4.7L), LOWER RIGHT FRONT ENGINE (5.7L) |
| Injector-Fuel-No. 5 (Diesel) |
Right Top of Engine |
ENGINE (3.0L) |
|
| Injector-Fuel-No. 5 (Gas) |
BK |
Left Top of Engine |
LEFT SIDE ENGINE (3.7L), LEFT SIDE ENGINE (4.7L), ENGINE (5.7L) |
| Injector-Fuel-No. 6 (Diesel) |
BK |
Left Top of Engine |
ENGINE (3.0L) |
| Injector-Fuel-No. 6 (Gas) |
BK |
Right Top of Engine |
RIGHT SIDE ENGINE (3.7L), RIGHT REAR ENGINE (3.7L/4.7L), LOWER RIGHT FRONT ENGINE (5.7L) |
| Injector-Fuel-No. 7 |
BK |
Left Top of Engine |
LEFT SIDE ENGINE (4.7L), ENGINE (5.7L) |
| Injector-Fuel-No. 8 |
BK |
Right Top of Engine |
RIGHT REAR ENGINE (3.7L/4.7L), LOWER RIGHT FRONT ENGINE (5.7L) |

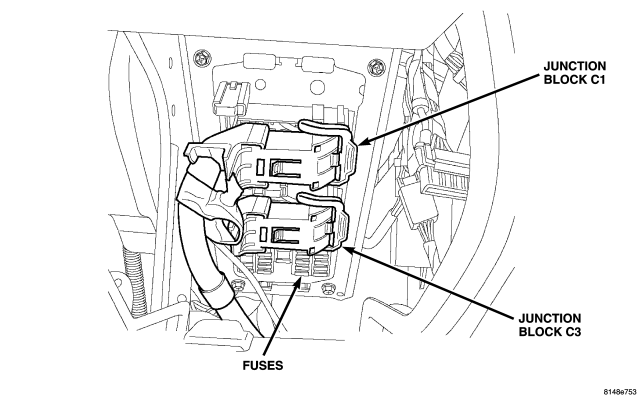

| Junction Block C1 |
- |
Lower Left Instrument Panel |
LEFT DASH INLINE CONNECTORS, JUNCTION BLOCK CONNECTORS |

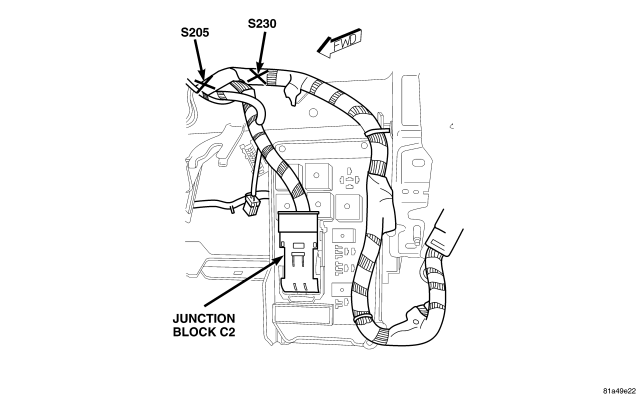

| Junction Block C2 |
BK |
Lower Left Instrument Panel |
LEFT INSTRUMENT PANEL JUNCTION BLOCK |
| Junction Block C3 |
- |
Lower Left Instrument Panel |
JUNCTION BLOCK CONNECTORS, LEFT FRONT BODY |
| Lamp-Cargo |
BK |
Lower Center Liftgate |
LIFTGATE |
| Lamp-CHMSL |
- |
Top Center Liftgate |
LIFTGATE |
| Lamp-Courtesy-Left Front Overhead |
- |
Above Left Front Door |
N/S |
| Lamp-Courtesy Lower-Left |
BK |
Instrument Panel above Left Footwell |
MIDDLE LEFT INSTRUMENT PANEL |
| Lamp-Courtesy Lower-Right |
BK |
Instrument Panel above Right Footwell |
RIGHT INSTRUMENT PANEL |
| Lamp-Courtesy-Right Front Overhead |
- |
Above Right Front Door |
N/S |

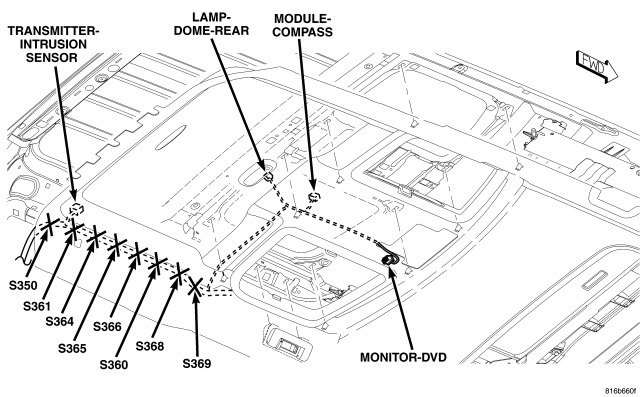

| Lamp-Dome-Rear |
- |
Center Rear Headliner |
REAR HEADLINER |

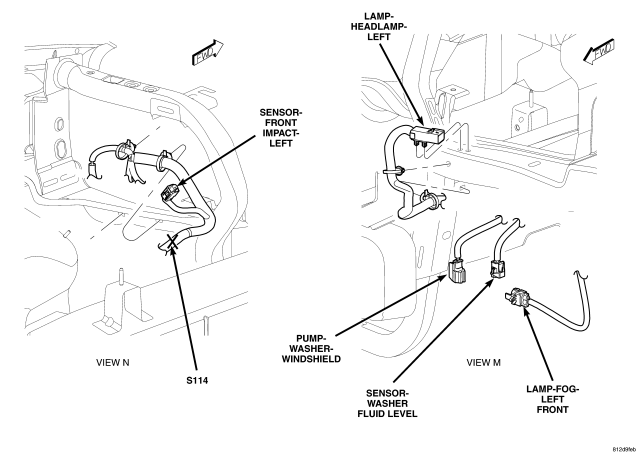

| Lamp-Fog-Left Front |
BK |
Lower Left Front Fascia |
UPPER LEFT FRONT ENGINE COMPARTMENT |
| Lamp-Fog-Left Rear |
- |
In the Rear Bumper |
REAR BUMPER |
| Lamp-Fog-Right Front |
BK |
Lower Right Front Fascia |
UPPER RIGHT FRONT ENGINE COMPARTMENT |
| Lamp-Fog-Right Rear |
- |
In the Rear Bumper |
REAR BUMPER |
| Lamp-Glove Box |
- |
Top of inner Glove Box |
RIGHT INSTRUMENT PANEL |
| Lamp-Grab Handle-Left Front |
- |
Above Left Rear Door |
N/S |
| Lamp-Grab Handle-Right Front |
- |
Above Right Rear Door |
N/S |
| Lamp-Headlamp-Left |
BK |
Rear of Left Headlamp Assembly |
UPPER LEFT FRONT ENGINE COMPARTMENT |
| Lamp-Headlamp-Right |
BK |
Rear of Right Headlamp Assembly |
UPPER RIGHT FRONT ENGINE COMPARTMENT |
| Lamp-License |
- |
Lower Center Liftgate |
LIFTGATE |
| Lamp-Map/Courtesy-Rear |
- |
- |
N/S |
| Lamp-Side Repeater-Left |
BK |
On Rear of Side Repeater Lamp, In Fender |
N/S |
| Lamp-Side Repeater-Right |
BK |
On Rear of Side Repeater Lamp, In Fender |
N/S |
| Lamp-Tail/Stop/Turn-Left |
- |
At Left Rear Lamp Assembly |
LEFT & RIGHT REAR UNDERBODY |
| Lamp-Tail/Stop/Turn-Right |
- |
At Right Rear Lamp Assembly |
LEFT & RIGHT REAR UNDERBODY |
| Lamp-Vanity-Left |
- |
At Left Visor |
N/S |
| Lamp-Vanity-Right |
- |
At Right Visor |
N/S |
| Latch-Door-Driver |
BK |
Upper Rear Driver Door |
DRIVER DOOR |
| Latch-Door-Left Rear |
BK |
Upper Rear Left Rear Door |
REAR DOOR |
| Latch-Door-Liftgate C1 |
- |
Lower Center of Liftgate |
LIFTGATE |
| Latch-Door-Liftgate C2 |
- |
Lower Center of Liftgate |
LIFTGATE |
| Latch-Door-Passenger |
BK |
Upper Rear Passenger Door |
PASSENGER DOOR |
| Latch-Door-Right Rear |
BK |
Upper Rear Right Rear Door |
REAR DOOR |
| Latch-Flip-up Glass C1 |
- |
Lower Center Liftgate |
LIFTGATE |
| Latch-Flip-up Glass C2 |
- |
Lower Center Liftgate |
LIFTGATE |

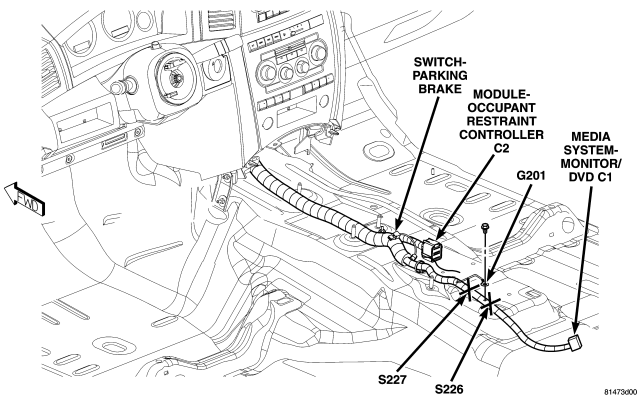

| Media System-Monitor/DVD C1 |
- |
Rear of Center Console |
BELOW CENTER CONSOLE |
| Media System-Monitor/DVD C2 |
- |
Rear of Center Console |
MIDDLE BODY |

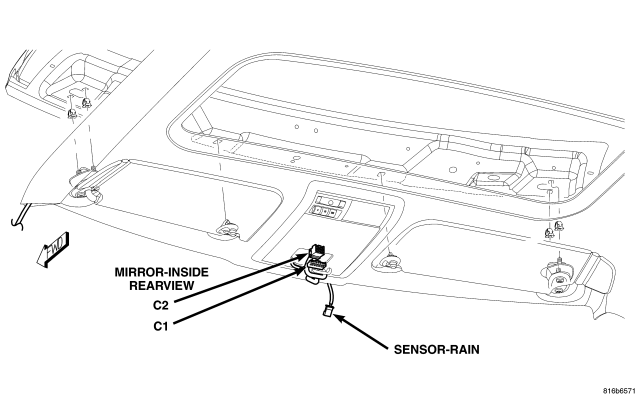

| Mirror-Inside Rearview C1 |
- |
Front on Inside Rearview Mirror |
INSIDE REARVIEW MIRROR |
| Mirror-Inside Rearview C2 |
- |
Front on Inside Rearview Mirror |
A-PILLAR, INSIDE REARVIEW MIRROR |
| Mirror-Outside Rearview-Driver |
- |
Upper Front of Driver Door |
DRIVER DOOR |
| Mirror-Outside Rearview-Passenger |
- |
Upper Front of Passenger Door |
PASSENGER DOOR |
| Module-Antenna (Export) |
WT |
- |
N/S |
| Module-Antilock Brakes |
- |
Left Rear Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT |
| Module-Compass |
- |
Center Rear Headliner |
REAR HEADLINER |
| Module-Door Driver C1 |
- |
In Driver Door |
DRIVER DOOR |
| Module-Door Driver C2 |
- |
In Driver Door |
DRIVER DOOR |
| Module-Door Driver C3 |
- |
In Driver Door |
DRIVER DOOR |
| Module-Door Passenger C1 |
- |
In Passenger Door |
N/S |
| Module-Door Passenger C2 |
- |
In Passenger Door |
N/S |
| Module-Electronic Overhead |
- |
Front Center Headliner |
N/S |
| Module-Engine Control C1 (Diesel) |
BK |
Under Battery |
N/S |
| Module-Engine Control C2 (Diesel) |
BK |
Under Battery |
N/S |
| Module-Final Drive Control C1 |
- |
Below Left Rear Seat |
CENTER UNDER BODY |
| Module-Final Drive Control C2 |
- |
Below Left Rear Seat |
CENTER UNDER BODY |
| Module-Front Blower Power C1 (ATC) |
BK |
Right Side of HVAC Unit |
RIGHT SIDE HVAC |
| Module-Front Blower Power C2 (ATC) |
BK |
Right Side of HVAC Unit |
RIGHT SIDE HVAC |
| Module-Front Control C1 |
- |
Left Side Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT |
| Module-Front Control C2 |
- |
Left Side Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT |
| Module-Front Control IPM |
- |
Side of Integrated Power Module |
N/S |
| Module-Fuel Pump |
- |
On Top of Fuel Tank |
N/S |
| Module-Glow Plug C1 |
- |
Top Right Front of Engine |
ENGINE (3.0L) |
| Module-Glow Plug C2 |
- |
Top Right Front of Engine |
ENGINE (3.0L) |
| Module-Hands Free |
- |
Right Kick Panel |
RIGHT KICK PANEL |
| Module-Heated Seat |
- |
Below Passenger Seat |
PASSENGER SEAT BOTTOM |
| Module-Hydraulic Cooling Fan (5.7L/Diesel) |
- |
Mounted to Rear of Radiator |
FRONT ENGINE COMPARTMENT |
| Module-Integrated Power C1 |
GY |
Left Side of Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT |
| Module-Integrated Power C2 |
BK |
Left Side of Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT |
| Module-Integrated Power Eyelet (B+) |
- |
Left Side of Engine Compartment |
IPM AND PDC BATTERY CONNECTIONS |
| Module-Intrusion Transceiver |
- |
Behind Right Rear Quarter Trim Panel |
N/S |
| Module-Memory Seat C1 |
- |
Below Driver Seat |
DRIVER SEAT BOTTOM |
| Module-Memory Seat C2 |
- |
Below Driver Seat |
DRIVER SEAT BOTTOM |
| Module-Memory Seat C3 |
- |
Below Driver Seat |
DRIVER SEAT BOTTOM |
| Module-Memory Seat C4 |
- |
Below Driver Seat |
DRIVER SEAT BOTTOM |
| Module-Memory Seat C5 |
- |
Below Driver Seat |
DRIVER SEAT BOTTOM |
| Module-Occupant Restraint Controller C1 |
- |
Below Center Console |
MIDDLE BODY |
| Module-Occupant Restraint Controller C2 |
- |
Below Center Console |
BELOW CENTER CONSOLE |
| Module-Park Assist C1 |
- |
Below Left Rear Seat |
CENTER UNDER BODY |
| Module-Park Assist C2 |
- |
Below Left Rear Seat, Next to C1 |
N/S |

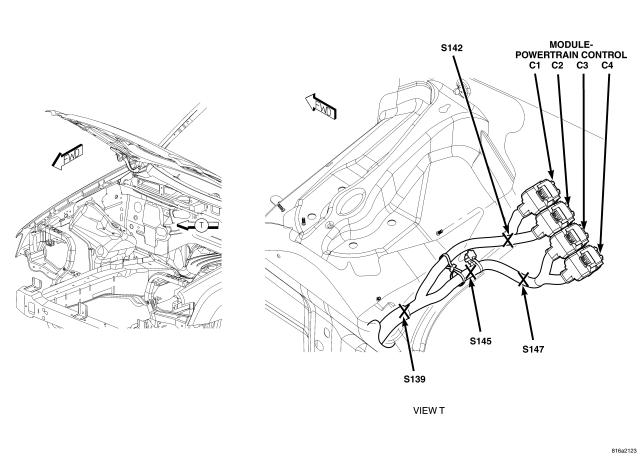

| Module-Powertrain Control C1 |
BK/BK |
Right Rear of Engine Compartment |
RIGHT REAR ENGINE (3.7L/4.7L), RIGHT SIDE ENGINE (5.7L) |
| Module-Powertrain Control C2 (3.7L/4.7L) |
BK/OR |
Right Rear of Engine Compartment |
RIGHT REAR ENGINE (3.7L/4.7L) |
| Module-Powertrain Control C2 (5.7L) |
BK/OR |
Right Rear of Engine Compartment |
RIGHT SIDE ENGINE (5.7L) |
| Module-Powertrain Control C3 (3.7/4.7L) |
BK/NAT |
Right Rear of Engine Compartment |
RIGHT REAR ENGINE (3.7L/4.7L) |
| Module-Powertrain Control C3 (5.7L) |
BK/NAT |
Right Rear of Engine Compartment |
RIGHT SIDE ENGINE (5.7L) |
| Module-Powertrain Control C4 |
BK/GN |
Right Rear of Engine Compartment |
RIGHT REAR ENGINE (3.7L/4.7L), RIGHT SIDE ENGINE (5.7L) |
| Module-Sentry Key Remote Entry/WCM |
BK |
Near Steering Column |
MIDDLE LEFT INSTRUMENT PANEL |
| Module-Steering Column-Lock |
- |
At Lower Steering Column |
N/S |
| Module-Steering Control C1 |
- |
At Steering Column |
N/S |
| Module-Steering Control C2 |
YL |
At Steering Column |
N/S |
| Module-Steering Control C3 |
- |
Steering Wheel |
STEERING WHEEL |
| Module-Steering Control C4 (Remote Radio) |
- |
Steering Wheel |
STEERING WHEEL |
| Module-Steering Control C5 |
- |
Steering Wheel |
N/S |
| Module-Steering Control C6 |
- |
Steering Wheel |
N/S |
| Module-Traffic Information Receiver C1 |
- |
Behind Right Rear Quarter Trim Panel |
N/S |
| Module-Traffic Information Receiver C2 |
- |
Behind Right Rear Quarter Trim Panel |
N/S |
| Module-Traffic Information Receiver C3 |
- |
Behind Right Rear Quarter Trim Panel |
N/S |

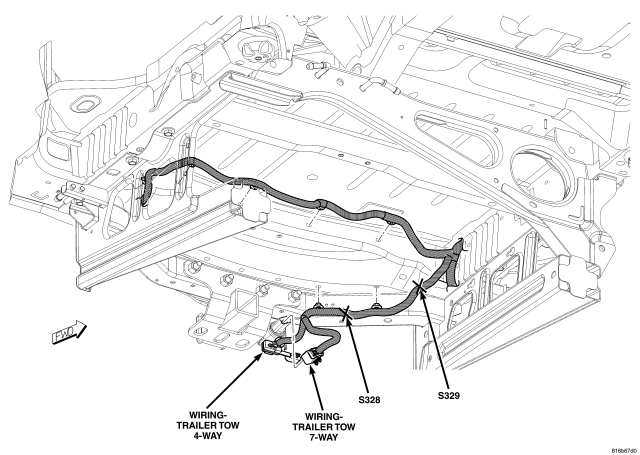

| Module-Trailer Tow C2 |
- |
Under Second Row Seat |
N/S |
| Module-Trailer Tow C3 |
- |
Under Second Row Seat |
N/S |
| Module-Trailer Tow C4 |
- |
Under Second Row Seat |
N/S |
| Module-Trailer Tow C5 |
- |
Under Second Row Seat |
N/S |
| Module-Transmission Control C1 (NAG1) |
- |
Below IP Left Side of Center |
LOWER LEFT INSTRUMENT PANEL |
| Module-Transmission Control C2 (NAG1) |
- |
Below IP Left Side of Center |
LOWER LEFT INSTRUMENT PANEL |

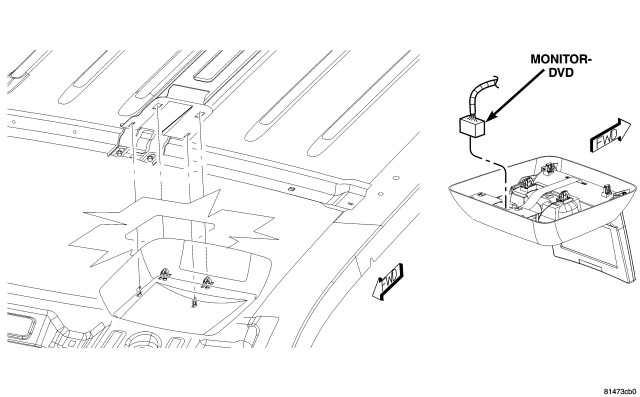

| Monitor-DVD |
- |
Center Headliner |
DVD MONITOR, REAR HEADLINER |
| Motor-Adjustable Pedals |
- |
At Pedal Assembly |
LEFT FRONT BODY |
| Motor-Blower-Front (MTC) |
BK |
Right Side of HVAC Unit |
N/S |
| Motor-Blower-Rear |
WT |
On Rear HVAC Unit |
REAR HVAC |
| Motor-Boost Pressure Servo |
NAT |
On Terbocharger |
ENGINE (3.0L) |
| Motor-IAC (3.7L/4.7L) |
BK |
Top of Engine |
LEFT SIDE ENGINE (4.7L) |
| Motor-Intake Swirl Servo |
BK |
At Top Center of Engine, In Intake Valley |
ENGINE (3.0L) |
| Motor/Module-Sunroof |
LT GY |
On Sunroof Assembly |
N/S |
| Motor-Rear Window Wiper |
- |
Lower Center of Liftgate |
LIFTGATE |
| Motor-Seat Adjuster-Driver Horizontal |
- |
Below Driver Seat |
DRIVER SEAT BOTTOM |
| Motor-Seat Adjuster-Driver Recliner |
WT |
Below Driver Seat |
N/S |
| Motor-Seat Adjuster-Front Driver Vertical |
- |
Bottom of Driver Seat |
N/S |
| Motor Seat Adjuster-Passenger Horizontal |
- |
Below Passenger Seat |
PASSENGER SEAT BOTTOM |
| Motor Seat Adjuster-Passenger Recliner |
WT |
Right Rear of Passenger Seat |
PASSENGER SEAT SIDE |
| Motor-Seat Adjuster-Rear Driver Vertical |
- |
Bottom of Driver Seat |
N/S |

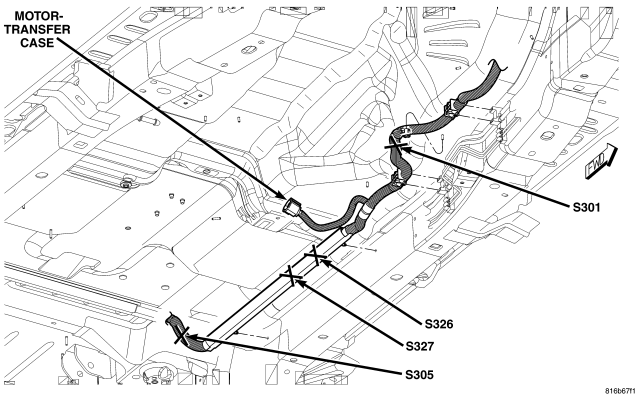

| Motor-Transfer Case |
- |
At Transfer Case |
CENTER UNDERBODY |
| Motor-Window-Driver Express |
- |
Center of Left Front Door |
DRIVER DOOR |
| Motor-Window-Left Rear |
- |
Center of Left Rear Door |
REAR DOOR |
| Motor-Window-Passenger Express |
- |
Center of Right Front Door |
PASSENGER DOOR |
| Motor-Window-Right Rear |
- |
Center of Right Rear Door |
REAR DOOR |

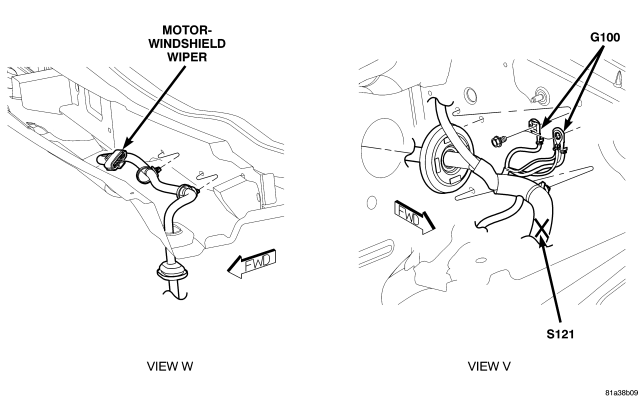

| Motor-Windshield Wiper |
- |
Top Left of Plenum |
UPPER LEFT REAR ENGINE COMPARTMENT |
| PDC Eyelet B+ |
- |
Left Side of Engine Compartment |
IPM AND PDC BATTERY CONNECTIONS |
| Power Outlet-Console |
GY |
Center Console at Rear of Power Outlet |
CENTER STACK |
| Power Outlet-Instrument Panel |
GY |
Center Stack at Rear of Power Outlet |
CENTER STACK |
| Power Outlet-Rear |
GY |
Left Rear Cargo Area |
LEFT REAR BODY |
| Pump-Washer-Windshield |
- |
Left Front Engine Compartment |
UPPER LEFT FRONT ENGINE COMPARTMENT |
| Radio Antenna |
- |
Center Stack at Rear of Radio |
CENTER STACK |
| Radio C1 |
LT GY |
Center Instrument Panel at Rear of Radio |
CENTER STACK |
| Radio C1 Shield (Hands Free) |
- |
Center Instrument Panel at Rear of Radio |
N/S |
| Radio C2 (DVD/Satellite Radio) |
- |
Center Instrument Panel at Rear of Radio |
N/S |
| Radio C2 Shield (Satellite Radio) |
- |
Center Instrument Panel at Rear of Radio |
N/S |
| Radio C3 (Rear Camera) |
- |
- |
N/S |
| Receiver-Intrusion Sensor (VTSS) |
- |
Near overhead Console |
N/S |
| Receiver-Satellite |
- |
Right Rear Side Body |
RIGHT SIDE BODY, SATELLITE RADIO RECEIVER AND ANTENNA |
| Receiver-Satellite Anetnna No.1 |
- |
Right Rear Side Body |
SATELLITE RADIO RECEIVER AND ANTENNA |
| Receiver-Satellite Anetnna No.2 |
- |
Right Rear Side Body |
SATELLITE RADIO RECEIVER AND ANTENNA |
| Resistor-Blower Motor-Front (MTC) |
BK |
Right Side HVAC Unit |
N/S |
| Resistor-Blower Motor-Rear |
BK |
On Rear HVAC Unit |
REAR HVAC |
| Seat Belt-Tensioner-Driver |
YL |
Left Side of Driver Seat |
REAR BODY |
| Seat Belt-Tensioner-Passenger |
YL |
Right Side of Passenger Seat |
REAR BODY |

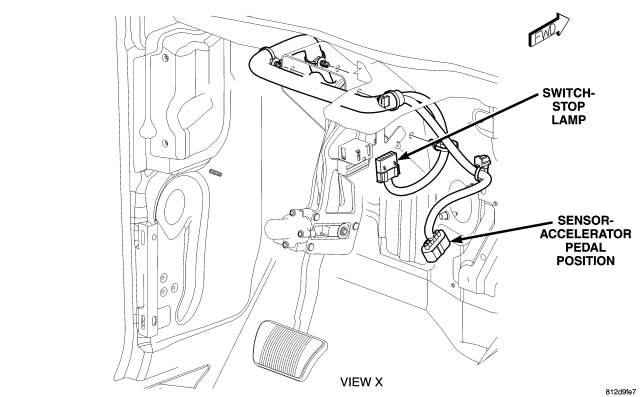

| Sensor-Accelerator Pedal Position (5.7L) |
- |
Base of Accelerator Pedal |
LOWER LEFT INSTRUMENT PANEL (5.7) |
| Sensor-Ambient Air Temperature |
- |
Front Center Engine Compartment |
FRONT ENGINE COMPARTMENT |
| Sensor-Auto Headlamp |
- |
Top Center Instrument Panel |
N/S |
| Sensor-Boost Pressure |
- |
At Front side of Air Control Valve |
ENGINE (3.0L) |
| Sensor-Brake Fluid Level |
- |
Left Rear Engine Compartment |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| Sensor-Camshaft Position (Diesel) |
- |
On Top of Right Valve Cover, Under Black Air Intake Tube |
ENGINE (3.0L) |

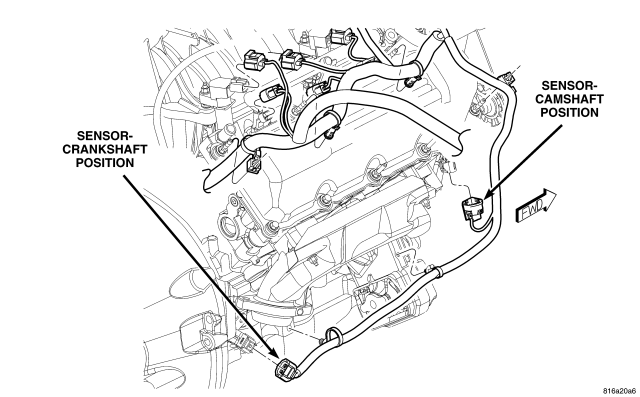

| Sensor-Camshaft Position (Gas) |
GY |
Right Front Engine |
LOWER FRONT RIGHT ENGINE (4.7L), RIGHT SIDE ENGINE (3.7L), LOWER RIGHT FRONT ENGINE (5.7L) |
| Sensor-Crankshaft Position (3.7L/4.7L) |
BK |
Lower Front Engine |
LOWER FRONT RIGHT ENGINE (4.7L), RIGHT SIDE ENGINE (3.7L) |
| Sensor-Crankshaft Position (5.7L) |
BK |
Front of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |

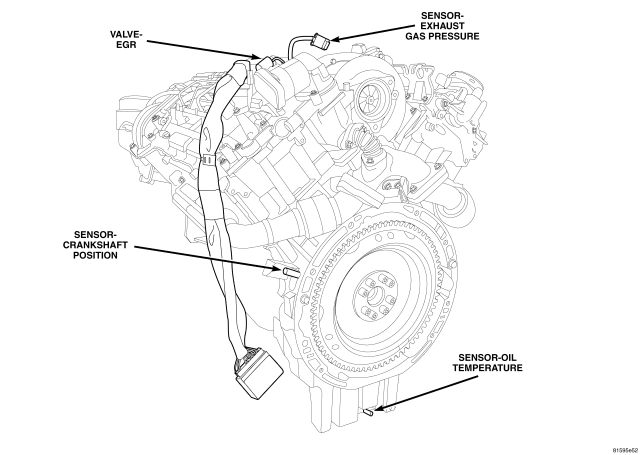

| Sensor-Crankshaft Position (Diesel) |
BK |
Left Rear Engine Block, Near Bellhousing |
LEFT REAR ENGINE (3.0L) |
| Sensor-Dynamics |
- |
Right Body Behind Right Front Seat |
MIDDLE BODY |
| Sensor-Engine Coolant Temperature (3.7L/4.7L) |
BK |
Front Top of Engine |
FRONT ENGINE (3.7L/4.7L) |
| Sensor-Engine Coolant Temperature (5.7L) |
BK |
Left Front of Engine |
LEFT TRANSMISSION AND LEFT FRONT ENGINE (5.7L) |
| Sensor-Engine Coolant Temperature (Diesel) |
BK |
At Top of Left Engine Head, Under Center of Fuel Rail |
ENGINE (3.0L) |
| Sensor-Evaporator Temperature |
WT |
Left Side HVAC Unit |
LEFT SIDE HVAC |
| Sensor-Exhaust Differential Pressure (Diesel) |
BK |
On Right side of Dash Panel, Near Center |
N/S |
| Sensor-Exhaust Gas Pressure (Diesel) |
BK |
Next to the EGR Valve, Toward Center of Engine |
LEFT REAR ENGINE (3.0L), ENGINE (3.0L) |
| Sensor-Fuel Pressure |
BK |
At Rear of Right Fuel Rail |
ENGINE (3.0L) |
| Sensor-Fuel Temperature |
BK |
On Front of High Pressure Fuel Pump |
ENGINE (3.0L) |
| Sensor-Front Impact-Left |
BK |
Left Front Engine Compartment |
UPPER LEFT FRONT ENGINE COMPARTMENT |
| Sensor-Front Impact-Right |
BK |
Right Front Engine Compartment |
FRONT ENGINE COMPARTMENT |

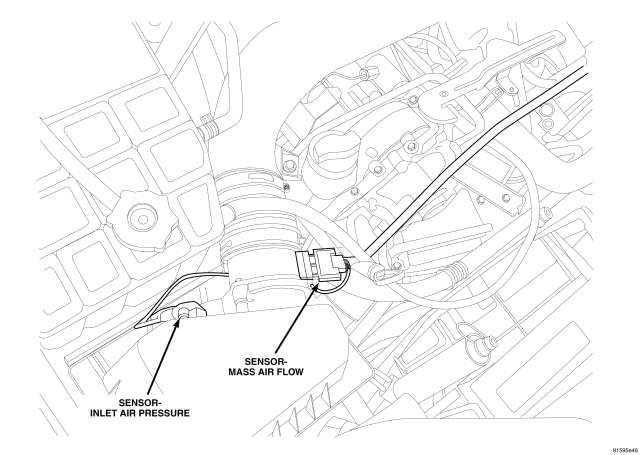

| Sensor-Inlet Air Pressure (Diesel) |
BK |
On Rear of Air Filter Box |
AIR INTAKE BOX (3.0L) |
| Sensor-Input Speed (RFE) |
- |
Left Side Transmission |
TRANSMISSION (4.7L), LEFT TRANSMISSION AND LEFT FRONT ENGINE (5.7L) |
| Sensor-Intake Air Temperature (Diesel) |
BK |
At Rear of Air Flow Control Valve |
ENGINE (3.0L) |
| Sensor-Intake Air Temperature (Gas) |
GY |
Top Front of Engine |
RIGHT REAR ENGINE (3.7L/4.7L), LOWER RIGHT FRONT ENGINE (5.7L) |
| Sensor-Knock (4.7L) |
- |
Right Side of Engine |
RIGHT REAR ENGINE (3.7L/4.7L) |
| Sensor-Knock No. 1 (3.7L) |
BK |
Top Left Rear at Trans Bell Housing |
LEFT SIDE ENGINE (3.7L) |
| Sensor-Knock No. 1 (5.7L) |
- |
Left Side of Engine |
ENGINE (5.7L) |
| Sensor-Knock No. 2 (3.7L) |
- |
Top Right on Engine, Near Fuel Injectors |
RIGHT SIDE ENGINE (3.7L) |
| Sensor-Knock No. 2 (5.7L) |
- |
Front of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |

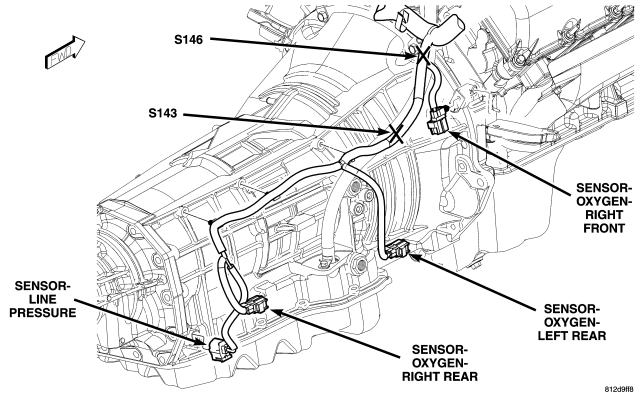

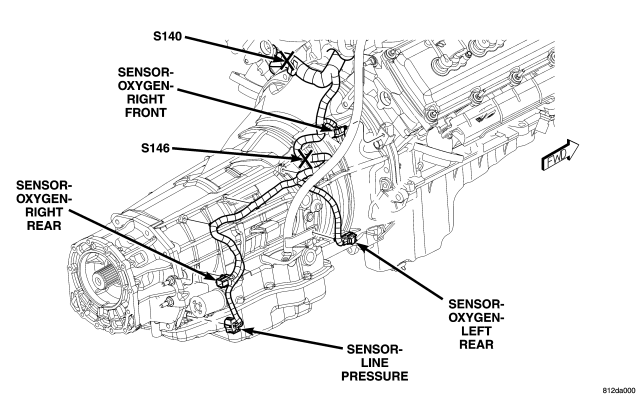

| Sensor-Line Pressure (545RFE) |
- |
Right Rear of Transmission |
RIGHT SIDE TRANSMISSION (4.7L), RIGHT TRANSMISSION (5.7L) |
| Sensor-MAP (3.7L/4.7L) |
GY |
Front Top of Engine |
FRONT ENGINE (3.7L/4.7L) |
| Sensor-MAP (5.7L) |
GY |
Rear Top of Engine |
ENGINE (5.7L) |
| Sensor-Mass Air Flow |
BK |
At Air Filter Box |
AIR INTAKE BOX (3.0L) |
| Sensor-Oil Pressure (Diesel) |
- |
On Left Front of Engine, Near Fuel Pump |
N/S |
| Sensor-Oil Pressure (5.7L) |
BK |
Lower Right Front of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |
| Sensor-Oil Temperature (5.7L) |
- |
Lower Right Front of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |
| Sensor-Oil Temperature (Diesel) |
BK |
On Rear of Oil Pan, Near Drain Plug |
LEFT REAR ENGINE (3.0L) |
| Sensor-Output Speed (RFE) |
- |
Left Side of Transmission |
TRANSMISSION (4.7L), LEFT TRANSMISSION AND LEFT FRONT ENGINE (5.7L) |
| Sensor-Oxygen (Diesel) |
BK |
In Exhaust Pipe |
N/S |
| Sensor-Oxygen-Left Front (3.7L) |
- |
Left Front near Transmission |
LEFT SIDE ENGINE (3.7L), TRANSMISSION (3.7L) |
| Sensor-Oxygen-Left Front (4.7L) |
GY |
Left Front near Transmission |
TRANSMISSION (4.7L) |
| Sensor-Oxygen-Left Front (5.7L) |
- |
Left Rear of Engine |
ENGINE (5.7L) |
| Sensor-Oxygen-Left Rear (3.7L) |
- |
Near Rear of Transmission |
TRANSMISSION (3.7L) |
| Sensor-Oxygen-Left Rear (4.7L) |
GY |
Right Side of Transmission |
RIGHT SIDE TRANSMISSION (4.7L) |
| Sensor-Oxygen-Left Rear (5.7L) |
- |
Right Front near Transmission |
RIGHT TRANSMISSION (5.7L) |
| Sensor-Oxygen-Right Front (3.7L) |
- |
Right Front near Transmission |
TRANSMISSION (3.7L) |
| Sensor-Oxygen-Right Front (4.7L) |
GY |
Right Front near Transmission |
RIGHT SIDE TRANSMISSION (4.7L) |
| Sensor-Oxygen-Right Front (5.7L) |
- |
Right Front near Transmission |
RIGHT TRANSMISSION (5.7L) |
| Sensor-Oxygen-Right Rear (3.7L) |
- |
Right Rear near Transmission |
TRANSMISSION (3.7L) |
| Sensor-Oxygen-Right Rear (4.7L) |
GY |
Right Rear near Transmission |
RIGHT SIDE TRANSMISSION (4.7L) |
| Sensor-Oxygen-Right Rear (5.7L) |
- |
Right Rear near Transmission |
RIGHT TRANSMISSION (5.7L) |
| Sensor-Park Assist No. 1 |
- |
In Front Bumper |
N/S |
| Sensor-Park Assist No. 2 |
- |
In Front Bumper |
N/S |
| Sensor-Park Assist No. 3 |
- |
In Front Bumper |
N/S |
| Sensor-Park Assist No. 4 |
- |
In Front Bumper |
N/S |
| Sensor-Park Assist No. 5 |
- |
In Front Bumper |
N/S |
| Sensor-Park Assist No. 6 |
- |
In Front Bumper |
N/S |
| Sensor-Park Assist No. 7 (Rear) |
- |
Right Side of Rear Bumper |
REAR BUMPER |
| Sensor-Park Assist No. 8 (Rear) |
- |
Right Middle of Rear Bumper |
REAR BUMPER |
| Sensor-Park Assist No. 9 (Rear) |
- |
Left Middle of Rear Bumper |
REAR BUMPER |
| Sensor-Park Assist No. 10 (Rear) |
- |
Left Side of Rear Bumper |
REAR BUMPER |
| Sensor-Post Catalyst Exhaust Gas Temperature (Diesel) |
BK |
In Exhaust Pipe Just After the Catalyst |
N/S |
| Sensor-Pre Catalyst Exhaust Gas Temperature (Diesel) |
BK |
In Exhaust Pipe Just Before the Catalyst |
N/S |
| Sensor-Rain |
- |
Front of Headliner |
INSIDE REARVIEW MIRROR |
| Sensor-Seat Track Position-Driver |
- |
Below Driver Seat |
REAR BODY |
| Sensor-Seat Track Position-Passenger |
- |
Below Passenger Seat |
N/S |
| Sensor-Side Impact-Left 1 |
- |
Left B-Pillar |
LEFT FRONT BODY |
| Sensor-Side Impact-Left 2 |
- |
Rear of Left Rear Door |
LEFT REAR BODY |
| Sensor-Side Impact-Left 3 |
- |
Left Rear Corner of Cargo Compartment |
LEFT REAR BODY |
| Sensor-Side Impact-Right 1 |
- |
Right B-Pillar |
RIGHT SIDE BODY |
| Sensor-Side Impact-Right 2 |
- |
Behind Right Rear Door |
RIGHT REAR BODY |
| Sensor-Side Impact-Right 3 |
- |
Right Rear Corner of Cargo Compartment |
RIGHT REAR BODY |
| Sensor-Sun |
- |
Top Center Instrument Panel |
N/S |
| Sensor-Throttle Position (3.7L) |
NAT |
Top of Engine |
LEFT SIDE ENGINE (4.7L) |
| Sensor-Throttle Position (4.7L) |
- |
Top of Engine |
LEFT SIDE ENGINE (4.7L) |
| Sensor-Vacuum Pressure (ESP) |
- |
- |
N/S |
| Sensor-Washer Fluid Level |
- |
Left Front of Engine Compartment |
UPPER LEFT FRONT ENGINE COMPARTMENT |
| Sensor-Water in Fuel |
BK |
On Top of Engine, In Fuel Reservoir |
ENGINE (3.0L) |
| Sensor-Wheel Speed-ABS-Left Front |
- |
Left Front of Engine Compartment |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| Sensor-Wheel Speed-ABS-Left Rear |
- |
Left Rear Underbody |
REAR UNDERBODY |
| Sensor-Wheel Speed-ABS-Right Front |
- |
Right Front Engine Compartment |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| Sensor-Wheel Speed-ABS-Right Rear |
- |
Right Rear Underbody |
REAR UNDERBODY |
| Servo-Speed Control (3.7L/4.7L) |
- |
Left Rear Engine Compartment |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| Siren (Export) |
- |
Under Hood on Fender Shield |
N/S |
| Solenoid-Evap/Purge |
BK |
Left Side of Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT |

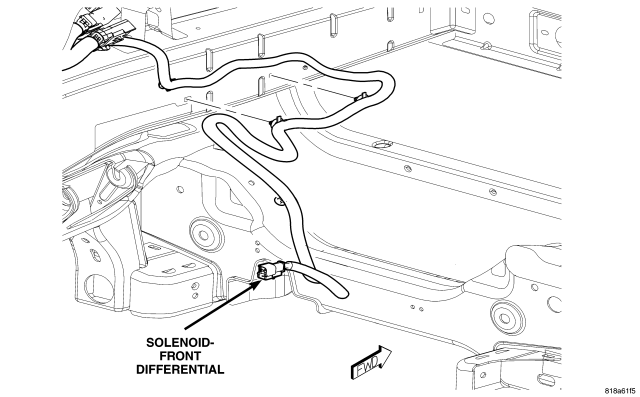

| Solenoid-Front Differential |
BK |
On Front Differential |
FRONT CRADLE |
| Solenoid-Fuel Pressure (Diesel) |
BK |
At Front of Left Fuel Rail |
ENGINE (3.0L) |
| Solenoid-Fuel Quantity (Diesel) |
BK |
On Front of High Pressure Fuel Pump |
ENGINE (3.0L) |
| Solenoid-Multi Displacement System Cyl 1 (5.7L) |
- |
Top of Engine |
N/S |
| Solenoid-Multi Displacement System Cyl 4 (5.7L) |
- |
Top of Engine |
N/S |
| Solenoid-Multi Displacement System Cyl 6 (5.7L) |
- |
Top of Engine |
N/S |
| Solenoid-Multi Displacement System Cyl 7 (5.7L) |
- |
Top of Engine |
N/S |
| Solenoid-Rear Differential |
- |
Rear Underbody |
REAR UNDERBODY |
| Speaker-Instrument Panel-Left |
WT |
Left Side Instrument Panel |
N/S |
| Speaker-Instrument Panel-Right |
WT |
Right Side Instrument Panel |
RIGHT INSTRUMENT PANEL |
| Speaker-Left Front Door |
- |
Center of Left Front Door |
DRIVER DOOR |
| Speaker-Left Rear Door |
- |
Center of Left Rear Door |
REAR DOOR |
| Speaker-Right Front Door |
- |
Center of Right Front Door |
PASSENGER DOOR |
| Speaker-Right Rear Door |
- |
Center of Right Rear Door |
REAR DOOR |
| Starter |
- |
Lower Left Rear of Engine |
BATTERY (3.7L/4.7L), GENERATOR AND STARTER (5.7L) |
| Starter-Eyelet |
- |
Lower Left Rear of Engine |
BATTERY (3.7L/4.7L), GENERATOR AND STARTER (5.7L) |
| Switch-Bank-Lower |
LT GY |
Center Stack at Rear of Switch Bank |
CENTER STACK |
| Switch-Bank-Upper |
BK |
Center Stack at Rear of Switch Bank |
CENTER STACK |
| Switch-Hood Ajar |
- |
Engine Compartment |
N/S |
| Switch-Horn |
- |
Center of Steering Wheel |
N/S |
| Switch-EVAP System Monitor |
- |
Left Rear Underbody |
LEFT & RIGHT REAR UNDERBODY |
| Switch-Ignition |
BK |
At Switch on IP, Right of Steering Column |
MIDDLE LEFT INSTRUMENT PANEL |
| Switch-Memory Set |
- |
Driver Door Panel |
DRIVER DOOR |
| Switch-Mirror |
- |
Left Front Door Panel |
DRIVER DOOR |
| Switch-Oil Pressure (3.7L/4.7L) |
- |
Lower Front Engine |
FRONT ENGINE (3.7L/4.7L) |
| Switch-Parking Brake |
- |
Below Center Console |
BELOW CENTER CONSOLE |
| Switch-Power Window-Left Rear |
- |
Left Rear Door |
REAR DOOR |
| Switch-Power Window-Right Rear |
- |
Right Rear Door |
REAR DOOR |
| Switch-Remote Radio-Left |
- |
Left Steering Wheel |
STEERING WHEEL |
| Switch-Remote Radio-Right |
- |
Right Steering Wheel |
STEERING WHEEL |
| Switch-Seat Belt-Driver |
YL |
Near Seat Belt Buckle Assembly |
N/S |
| Switch-Seat Belt-Passenger |
YL |
Near Seat Belt Buckle Assembly |
N/S |
| Switch-Seat-Driver |
- |
Side of Driver Seat |
N/S |
| Switch-Seat-Passenger |
- |
Side of Passenger Seat |
PASSENGER SEAT SIDE |
| Switch-Security Hood (Export) |
BK |
Left Side of Engine Compartment |
N/S |
| Switch-Speed Control-Left |
- |
Left Steering Wheel |
STEERING WHEEL |
| Switch-Speed Control-Right |
- |
Right Steering Wheel |
STEERING WHEEL |

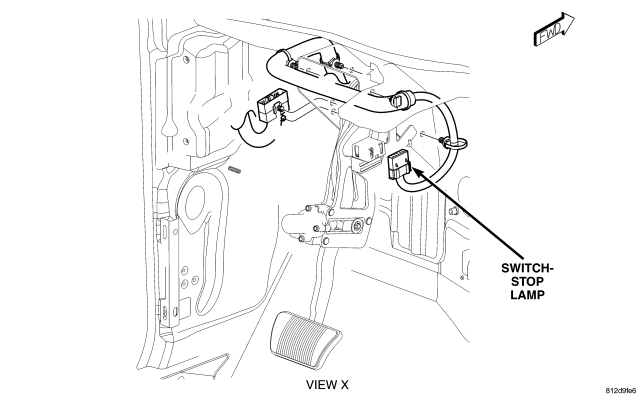

| Switch-Stop Lamp |
GY |
Lower Left Instrument Panel |
LOWER LEFT INSTRUMENT PANEL (3.7L/4.7L), LOWER LEFT INSTRUMENT PANEL (5.7) |
| Switch-Sunroof |
- |
Front Center Headliner |
N/S |
| Switch-Transfer Case Selector |
- |
Base of Shift Lever Assembly |
SHIFT ASSEMBLY |
| Switch-Window/Door Lock-Driver C1 |
- |
Driver Door |
DRIVER DOOR |
| Switch-Window/Door Lock-Driver C2 |
- |
Driver Door |
DRIVER DOOR |
| Switch-Window/Door Lock-Passenger |
- |
Passenger Door |
PASSENGER DOOR |
| Throttle Body (3.7L) |
BK |
Bottom of Throttle Body |
LEFT SIDE ENGINE (3.7L) |
| Throttle Body (5.7L) |
- |
Top Front of Engine |
LEFT TRANSMISSION AND LEFT FRONT ENGINE (5.7L) |
| Transducer-A/C Pressure |
GY |
Right Front Engine Compartment |
UPPER RIGHT FRONT ENGINE COMPARTMENT |
| Transmitter-Intrusion Sensor (VTSS) |
- |
In Rear of Headliner |
N/S |
| Transponder-Tire Pressure Left Front |
- |
Left Front Wheel Well |
RIGHT FRONT WHEEL WELL |

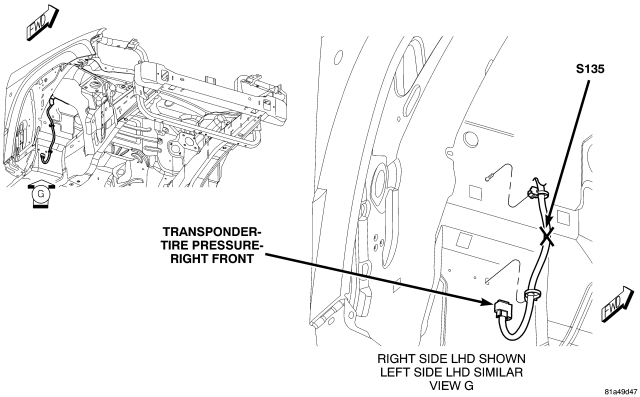

| Transponder-Tire Pressure Right Front |
- |
Right Front Wheel Well |
RIGHT FRONT WHEEL WELL |
| Transponder-Tire Pressure Right Rear |
- |
Right Rear Underbody |
LEFT & RIGHT REAR UNDERBODY |
| Valve-EGR (Diesel) |
BK |
At Right Front of Engine |
ENGINE (3.0L) |
| Valve-EGR AirFlow Control (Diesel) |
- |
On Top of Engine, Left Rear |
ENGINE (3.0L) |
| Wiring-Trailer Tow 4-Way |
- |
Rear Underbody |
REAR CHASSIS |
| Wiring-Trailer Tow 7-Way |
BK |
Rear Underbody |
REAR CHASSIS |
| Wiring-Trailer Tow 10-Way (Export) |
BK |
Rear Side of Hitch Receiver |
N/S |
| Wiring-Trailer Tow Terminal |
- |
- |
N/S |
| GROUND |
LOCATION |
FIG. |
| G100 |
Left Rear Engine Compartment |
UPPER LEFT REAR ENGINE COMPARTMENT |
| G101 |
Left Side Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT |
| G102 |
Left Side Engine Compartment |
LEFT SIDE ENGINE COMPARTMENT |
| G103 |
Right side of Engine Compartment |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| G104 |
Left Side Engine Compartment |
IPM AND PDC BATTERY CONNECTIONS |
| G105 |
Lower Left Rear Engine |
BATTERY (3.7L/4.7L), GENERATOR AND STARTER (5.7L) |
| G106 |
On Engine |
N/S |
| G107 |
On Engine |
N/S |
| G200 |
Left Instrument Panel Near Data Link Connector T/O |
N/S |
| G201 |
Center Body |
BELOW CENTER CONSOLE |
| G202 |
- |
N/S |
| G300 |
Behind Passenger Seat |
REAR BODY |
| G301 |
Rear of Left Rear Door |
LEFT REAR BODY |
| G302 |
Below Left Rear Seat |
CENTER UNDER BODY |
| G303 |
Floor Near Left Side of Driver Seat |
REAR BODY |
| SPLICE |
LOCATION |
FIG. |
| S101 |
In Headlamp and Dash Harness |
LEFT DASH INLINE CONNECTORS |
| S102 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S103 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S104 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S105 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S106 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S107 |
In Headlamp and Dash Harness |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| S108 |
In Headlamp and Dash Harness |
FRONT ENGINE COMPARTMENT |
| S109 |
In Headlamp and Dash Harness |
N/S |
| S110 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S111 |
In Headlamp and Dash Harness |
FRONT ENGINE COMPARTMENT |
| S114 |
In Headlamp and Dash Harness |
UPPER LEFT FRONT ENGINE COMPARTMENT |
| S115 |
In Headlamp and Dash Harness |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| S116 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT, GENERATOR AND STARTER (5.7L) |
| S117 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S118 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S120 |
In Headlamp and Dash Harness |
FRONT ENGINE COMPARTMENT |
| S121 |
In Headlamp and Dash Harness |
UPPER LEFT REAR ENGINE COMPARTMENT |
| S122 |
In Headlamp and Dash Harness |
N/S |
| S124 |
In Headlamp and Dash Harness |
FRONT ENGINE COMPARTMENT |
| S126 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S127 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S128 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S129 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S130 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S131 |
In Headlamp and Dash Harness |
LEFT DASH INLINE CONNECTORS |
| S132 |
In Headlamp and Dash Harness |
LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| S134 |
In Headlamp and Dash Harness |
N/S |
| S135 |
In Headlamp and Dash Harness |
RIGHT FRONT WHEEL WELL |
| S136 |
In Headlamp and Dash Harness |
LEFT SIDE ENGINE COMPARTMENT |
| S137 |
Left Top of Engine |
LEFT SIDE ENGINE (4.7L), ENGINE (5.7L) |
| S138 (3.7L/4.7L) |
Right Side of Engine |
RIGHT REAR ENGINE (3.7L/4.7L) |
| S138 (5.7L) |
Right Side of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |
| S139 (3.7L) |
Rear of Engine |
TRANSMISSION (3.7L) |
| S139 (4.7L) |
Right Rear of Engine |
RIGHT REAR ENGINE (3.7L/4.7L) |
| S139 (5.7L) |
Right Rear in Engine Compartment |
RIGHT SIDE ENGINE (5.7L) |
| S140 (3.7L) |
Right Rear in Engine Compartment |
RIGHT REAR ENGINE (3.7L/4.7L) |
| S140 (4.7L) |
Rear of Engine |
TRANSMISSION (4.7L) |
| S140 (5.7L) |
Rear of Engine |
RIGHT TRANSMISSION (5.7L) |
| S141 (3.7L/4.7L) |
Right Rear of Engine |
RIGHT REAR ENGINE (3.7L/4.7L) |
| S141 (5.7L) |
Right Rear of Engine |
LOWER RIGHT FRONT ENGINE (5.7L) |
| S142 (3.7L) |
Rear of Engine |
TRANSMISSION (3.7L) |
| S142 (4.7L) |
Right Rear in Engine Compartment |
RIGHT REAR ENGINE (3.7L/4.7L) |
| S142 (5.7L) |
Right Rear in Engine Compartment |
RIGHT SIDE ENGINE (5.7L) |
| S143 (3.7L) |
Right Side of Transmission |
TRANSMISSION (3.7L) |
| S143 (4.7L) |
Right Front of Transmission |
RIGHT SIDE TRANSMISSION (4.7L) |
| S143 (5.7L) |
Right Front of Transmission |
N/S |
| S144 |
Front of Transmission |
TRANSMISSION (4.7L), LEFT TRANSMISSION AND LEFT FRONT ENGINE (5.7L) |
| S145 |
Right Rear in Engine Compartment |
RIGHT REAR ENGINE (3.7L/4.7L), RIGHT SIDE ENGINE (5.7L) |
| S146 (3.7L) |
Right Side of Transmission |
TRANSMISSION (3.7L) |
| S146 (4.7L) |
Right Front of Transmission |
RIGHT SIDE TRANSMISSION (4.7L) |
| S146 (5.7L) |
Front of Transmission |
RIGHT TRANSMISSION (5.7L) |
| S147 |
Right Rear in Engine Compartment |
RIGHT REAR ENGINE (3.7L/4.7L), RIGHT SIDE ENGINE (5.7L) |
| S150 |
Right Rear of Engine |
RIGHT REAR ENGINE (3.7L/4.7L), LOWER RIGHT FRONT ENGINE (5.7L) |
| S151 |
In Headlamp and Dash Harness |
N/S |
| S152 |
In Headlamp and Dash Harness |
N/S |
| S153 |
In Headlamp and Dash Harness |
N/S |
| S154 |
Top of Engine |
N/S |
| S155 |
In Headlamp and Dash Harness |
N/S |
| S156 |
In Headlamp and Dash Harness |
N/S |
| S162 |
In Headlamp and Dash Harness |
N/S |
| S163 |
In Headlamp and Dash Harness |
N/S |
| S164 |
In Headlamp and Dash Harness |
N/S |
| S165 |
— |
N/S |
| S167 |
— |
N/S |
| S198 |
In Headlamp and Dash Harness |
N/S |
| S200 |
On Steering Wheel |
N/S |
| S201 |
On Steering Wheel |
N/S |
| S202 |
Left Instrument Panel Near T/O for Ignition Switch |
MIDDLE LEFT INSTRUMENT PANEL |
| S204 |
Center Stack in Switch Bank C1 T/O |
N/S |
| S206 |
Left Instrument Panel Near T/O for Cluster C1 |
N/S |
| S208 |
Right Instrument Panel Near Speaker T/O |
RIGHT INSTRUMENT PANEL |
| S209 |
Lower Left Instrument Panel |
LEFT KICK PANEL |
| S210 |
Left Instrument Panel Near T/O for Ignition Switch |
MIDDLE LEFT INSTRUMENT PANEL |
| S211 |
Left Instrument Panel Near T/O for Ignition Switch |
MIDDLE LEFT INSTRUMENT PANEL |
| S212 |
Lower Center Stack Near T/O for Instrument Panel Power Outlet |
SHIFT ASSEMBLY |
| S213 |
Center Stack In T/O for Radio C1 and C2 |
CENTER STACK |
| S214 |
Lower Center Stack Near T/O for Instrument Panel Power Outlet |
SHIFT ASSEMBLY |
| S215 |
Lower Center Stack Near T/O for Instrument Panel Power Outlet |
SHIFT ASSEMBLY |
| S216 |
Left Instrument Panel Near T/O for Cluster C3 |
MIDDLE LEFT INSTRUMENT PANEL |
| S217 |
Left Instrument Panel Near T/O for Cluster C3 |
MIDDLE LEFT INSTRUMENT PANEL |
| S218 |
On Steering Wheel |
N/S |
| S219 |
Lower Left Instrument Panel |
LEFT KICK PANEL |
| S224 |
Center Stack In T/O for Radio C1 |
CENTER STACK |
| S225 |
Center Stack In T/O for Radio C2 |
N/S |
| S226 |
- |
N/S |
| S227 |
- |
N/S |
| S228 |
Left Instrument Panel Near T/O for Left Courtesy Lamp |
MIDDLE LEFT INSTRUMENT PANEL |
| S229 |
- |
N/S |
| S230 |
Left Instrument Panel Near T/O for Data Link Connector |
LEFT INSTRUMENT PANEL JUNCTION BLOCK |
| S231 |
Right Kick Panel |
RIGHT KICK PANEL |
| S232 |
On Steering Wheel |
N/S |
| S233 |
On Steering Wheel |
N/S |
| S234 |
Right Side of HVAC unit |
RIGHT SIDE HVAC |
| S235 |
- |
N/S |
| S236 |
- |
N/S |
| S300 |
Rear Underbody |
REAR UNDERBODY |
| S301 |
Left Front Underbody |
CENTER UNDERBODY |
| S302 |
Rear Underbody |
REAR UNDERBODY |
| S303 |
Left Rear Body |
LEFT REAR BODY |
| S304 |
Rear Underbody |
REAR UNDERBODY |
| S305 |
Left Side Underbody |
CENTER UNDERBODY |
| S306 |
Below Passenger Seat |
MIDDLE BODY |
| S307 |
Rear Underbody |
REAR UNDERBODY |
| S308 |
Below Driver Seat |
MIDDLE BODY |
| S309 |
Below Driver Seat |
MIDDLE BODY |
| S310 |
Rear Underbody |
REAR UNDERBODY |
| S311 |
Below Left Rear Door |
CENTER UNDER BODY |
| S312 |
Left Rear Body |
LEFT REAR BODY |
| S313 |
Below Driver Seat |
MIDDLE BODY |
| S314 |
Below Driver Seat |
MIDDLE BODY |
| S315 |
Below Driver Seat |
MIDDLE BODY |
| S317 |
Below Left Rear Door |
LEFT FRONT BODY |
| S318 |
Right Side Body Under Right Front Door |
RIGHT SIDE BODY |
| S319 |
Right Side Body Under Right Rear Door |
RIGHT SIDE BODY |
| S320 |
Right Side Body Under Right Front Door |
REAR BODY |
| S321 |
Left Body Under Left Rear Door |
LEFT REAR BODY |
| S322 |
In T/O for Satellite Receiver |
RIGHT SIDE BODY |
| S323 |
On Body Harness |
MIDDLE BODY |
| S324 |
Left Rear Body |
LEFT REAR BODY |
| S325 |
Left Body Under Left Rear Door |
LEFT REAR BODY |
| S328 |
Rear Underbody |
REAR CHASSIS |
| S329 |
On Underbody Harness |
REAR CHASSIS |
| S331 |
Rear Underbody |
REAR UNDERBODY |
| S332 |
Rear Underbody |
REAR UNDERBODY |
| S333 |
Rear Underbody |
REAR UNDERBODY |
| S334 |
- |
N/S |
| S335 |
On Underbody Harness |
N/S |
| S336 |
Below Left Rear Seat |
CENTER UNDER BODY |
| S337 |
On Underbody Harness |
N/S |
| S338 |
- |
N/S |
| S339 |
On Underbody Harness |
N/S |
| S340 |
Right Rear Underbody |
LEFT & RIGHT REAR UNDERBODY |
| S341 |
In Driver Door |
DRIVER DOOR |
| S342 |
In Driver Door |
DRIVER DOOR |
| S343 |
In Driver Door |
DRIVER DOOR |
| S344 |
In Driver Door |
DRIVER DOOR |
| S345 |
In Driver Door |
DRIVER DOOR |
| S346 |
In Driver Door |
DRIVER DOOR |
| S347 |
In Driver Door |
DRIVER DOOR |
| S348 |
In Passenger Door |
PASSENGER DOOR |
| S349 |
In Passenger Door |
PASSENGER DOOR |
| S350 (Base) |
Center Front Headliner |
A-PILLAR |
| S350 (Except Base) |
Left Rear Headliner |
REAR HEADLINER |
| S352 |
Lower Center Liftgate |
LIFTGATE |
| S353 |
Left Side of Liftgate |
LIFTGATE |
| S354 |
Upper Right Liftgate |
LIFTGATE |
| S355 |
Upper Left Liftgate |
LIFTGATE |
| S356 |
Center Rear Bunper |
REAR BUMPER |
| S357 |
Center Rear Bunper |
REAR BUMPER |
| S358 |
- |
N/S |
| S359 |
- |
N/S |
| S360 |
Left Rear Headliner |
REAR HEADLINER |
| S361 |
Left Rear Headliner |
REAR HEADLINER |
| S363 |
- |
N/S |
| S364 |
Left Rear Headliner |
REAR HEADLINER |
| S365 |
Left Rear Headliner |
REAR HEADLINER |
| S366 |
Left Rear Headliner |
REAR HEADLINER |
| S367 |
- |
N/S |
| S368 |
Left Rear Headliner |
REAR HEADLINER |
| S369 |
Left Rear Headliner |
REAR HEADLINER |
| S370 |
Below Driver Seat |
DRIVER SEAT BOTTOM |
| S371 |
- |
N/S |
| S372 |
- |
N/S |
| S373 |
Below Driver Seat |
DRIVER SEAT BOTTOM |
| S374 |
Below Passenger Seat |
PASSENGER SEAT BOTTOM |
| S375 |
- |
N/S |
| S377 |
- |
N/S |
| S378 |
- |
N/S |
| S379 |
- |
N/S |
| S380 |
- |
N/S |
| S381 |
- |
N/S |
| S383 |
- |
N/S |
| S385 |
- |
N/S |
| S386 |
- |
N/S |
| S387 |
- |
N/S |
| S388 |
- |
N/S |
| S389 |
Below Left Front Door Opening |
N/S |
| S390 |
Below Left Front Door Opening |
N/S |
| S391 |
Below Right Front Door Opening |
N/S |
| S392 |
Below Right Front Door Opening |
N/S |
| S393 |
Driver Door |
DRIVER DOOR |
| S394 |
Passenger Door |
PASSENGER DOOR |
| S395 |
Passenger Door |
PASSENGER DOOR |
| S396 |
On Rear HVAC Unit |
REAR HVAC |
| S397 |
- |
N/S |
| S398 |
— |
N/S |
| LEFT AND RIGHT SIDE ENGINE COMPARTMENT |
| LEFT DASH INLINE CONNECTORS |
| LOWER LEFT INSTRUMENT PANEL (3.7L/4.7L) |
| LOWER LEFT INSTRUMENT PANEL (5.7) |
| UPPER LEFT REAR ENGINE COMPARTMENT |
| LEFT SIDE ENGINE COMPARTMENT |
| FRONT ENGINE COMPARTMENT |
| UPPER LEFT FRONT ENGINE COMPARTMENT |
| UPPER RIGHT FRONT ENGINE COMPARTMENT |
| RIGHT FRONT WHEEL WELL |
| IPM AND PDC BATTERY CONNECTIONS |
| BATTERY (3.7L/4.7L) |
| BATTERY (5.7L) |
| GENERATOR AND STARTER (5.7L) |
| FRONT ENGINE (3.7L/4.7L) |
| LOWER FRONT RIGHT ENGINE (4.7L) |
| LEFT SIDE ENGINE (3.7L) |
| LEFT SIDE ENGINE (4.7L) |
| RIGHT SIDE ENGINE (3.7L) |
| RIGHT REAR ENGINE (3.7L/4.7L) |
| TRANSMISSION (3.7L) |
| TRANSMISSION (4.7L) |
| RIGHT SIDE TRANSMISSION (4.7L) |
| LOWER RIGHT FRONT ENGINE (5.7L) |
| ENGINE (5.7L) |
| RIGHT SIDE ENGINE (5.7L) |
| LEFT TRANSMISSION AND LEFT FRONT ENGINE (5.7L) |
| RIGHT TRANSMISSION (5.7L) |
| LEFT REAR ENGINE (3.0L) |
| ENGINE (3.0L) |
| AIR INTAKE BOX (3.0L) |
| FRONT CRADLE |
| LEFT SIDE HVAC |
| RIGHT SIDE HVAC |
| LOWER LEFT INSTRUMENT PANEL |
| LEFT INSTRUMENT PANEL JUNCTION BLOCK |
| JUNCTION BLOCK CONNECTORS |
| LEFT KICK PANEL |
| LOWER LEFT INSTRUMENT PANEL |
| MIDDLE LEFT INSTRUMENT PANEL |
| CENTER STACK |
| RIGHT INSTRUMENT PANEL |
| RIGHT KICK PANEL |
| RADIO ANTENNA (BASE) |
| STEERING WHEEL |
| A-PILLAR |
| INSIDE REARVIEW MIRROR |
| DVD MONITOR |
| LEFT REAR HEADLINER |
| LEFT FRONT HEADLINER |
| REAR HEADLINER |
| SHIFT ASSEMBLY |
| BELOW CENTER CONSOLE |
| LEFT FRONT BODY |
| RIGHT SIDE BODY |
| MIDDLE BODY |
| LEFT REAR BODY |
| RIGHT REAR BODY |
| REAR BODY |
| REAR HVAC |
| SATELLITE RADIO RECEIVER AND ANTENNA |
| DRIVER SEAT BOTTOM |
| PASSENGER SEAT BOTTOM |
| PASSENGER SEAT SIDE |
| DRIVER DOOR |
| PASSENGER DOOR |
| REAR DOOR |
| CENTER UNDER BODY |
| REAR UNDERBODY |
| REAR CHASSIS |
| LEFT & RIGHT REAR UNDERBODY |
| CENTER UNDERBODY |
| LEFT FRONT UNDERBODY |
| FUEL TANK |
| LIFTGATE |
| REAR BUMPER |
