DUCT-FLOOR CONSOLE
REMOVAL

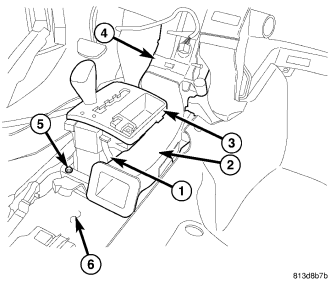

NOTE: LHD model shown. RHD model similar.
NOTE: Illustration shown with instrument panel removed for clarity.
1. Remove the floor console from the passenger compartment (refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - REMOVAL).
2. Disengage the retainer (1) that secures the front console duct (2) to the gear selector (3).
3. Disconnect the front console duct from the air distribution housing (4) and remove the console duct.
INSTALLATION
NOTE: LHD model shown. RHD model similar.
NOTE: Illustration shown with instrument panel removed for clarity.
1. Position the floor console duct (2) into the vehicle.
2. Connect the front console duct to the air distribution housing (4) and engage the retainer (1) to the gear selector (3).
3. Install the floor console (refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION).
