HANDLE-EXTERIOR
REMOVAL
1. Disconnect the actuator rod (1) from the rear exterior handle (2).

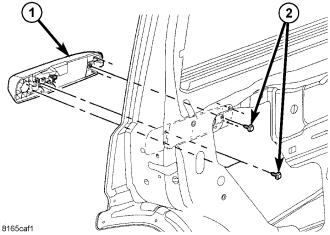

2. Remove the three bolts (2) that secure the exterior handle (1) to the rear door and remove the handle.
INSTALLATION
1. Position the exterior handle (1) to the mounting hole on the outside of the rear door.
2. Install the three bolts (2) that secure that exterior handle to the door. Tighten the bolts to 7 N·m (60 in. lbs.).
3. Connect the actuator rod (1) to the rear exterior handle (2).
4. Install the watershield (1) (Refer to 23 - BODY/DOORS - REAR/WATERSHIELD - INSTALLATION).
5. Adjust the latch (Refer to 23 - BODY/DOORS - REAR/LATCH - ADJUSTMENTS).
