*NO RESPONSE FROM PTS (PARK ASSIST MODULE)

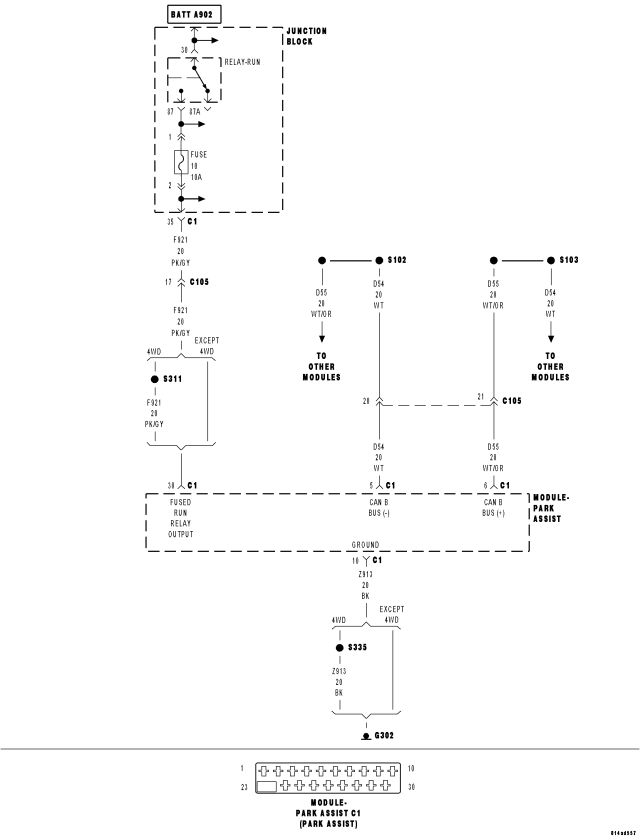

For a complete wiring diagram Refer to Section 8W.

Possible Causes

(F921) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED

(Z913) GROUND CIRCUIT OPEN

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

PARK ASSIST MODULE

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

With the scan tool, select ECU view.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

Does the scan tool display a red X next to the module?

Yes

Go To 2

The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.

2. (F921) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED

NOTE: Check the FCM for any ignition related DTCs before proceeding. If set (Refer to 8 - ELECTRICAL/IGNITION CONTROL - DIAGNOSIS AND TESTING).

Turn the ignition off.
Disconnect the Park Assist Module C1 harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the (F921) Fused Run Relay Output circuit.

Does the test light illuminate brightly?

Yes

Go To 3

Repair the (F921) Fused Run Relay Output circuit for an open or short.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

3. (Z913) GROUND CIRCUIT OPEN

Turn the ignition off.
Using a 12-volt test light connected to 12-volts, check the (Z913) ground circuit.

Does the test light illuminate brightly?

Yes

Go To 4

Repair the (Z913) ground circuit for an open.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

4. (D55) AND (D54) CAN B BUS CIRCUITS OPEN

NOTE: One open circuit will not cause this condition.

Measure the voltage between the (D54) CAN B Bus (-) circuit and ground.
Measure the voltage between the (D55) CAN B Bus (+) circuit and ground.

Is there any voltage present on either circuit?

Yes

Replace the Park Assist Module in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

Repair the (D55) and (D54) CAN B Bus circuits for an open. Inspect the connector for damage.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
