PANEL-COWL TOP
REMOVAL
1. Remove the wiper arms. (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL)
2. Remove the rear hood seal.

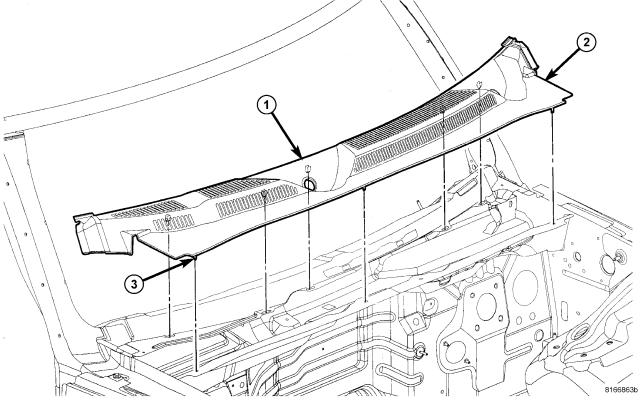

3. Separate the rear clips (3).
4. Remove cowl cover (2) from cowl.
INSTALLATION
1. Position the cowl grille over the wiper pivots.
2. Seat the rear (1) clips fully.
3. Install the rear hood seal and foam blocks.
4. Install rear hood seal and foam blocks.
5. Install wiper arms, (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - INSTALLATION).
