WHEEL OPENING FLARE MOLDINGS
REMOVAL
Front

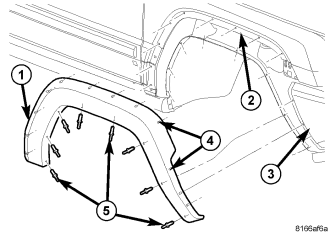

1. Remove the rivets (5) attaching the front flare to the wheel liner.
2. Separate the clips attaching the front fascia (3) to the flare (1).
3. Separate the remaining clips (4) attaching the flare to the fender (2) and remove the flare.
Rear

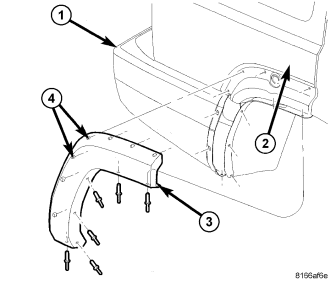

1. Remove the rivets attaching the rear flare (3) to the wheel liner.
2. Separate the clips (4) attaching the rear flare to the rear fascia (1) and quarter panel (2).
3. Remove the rear flare.

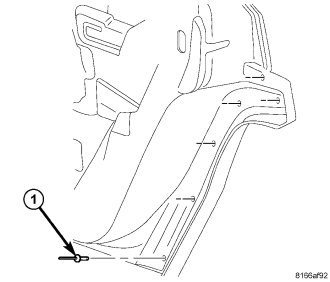

4. Open the rear doors and remove the inner rivets (1) attaching the door flare to the door.

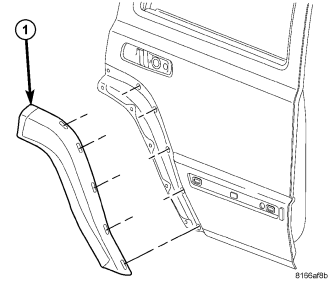

5. Separate the clips attaching the door flare (1) to the door and remove the flare.
INSTALLATION
Front

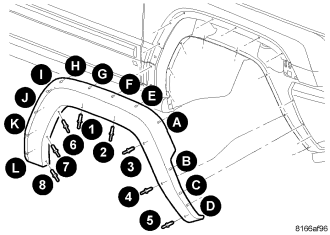

1. Position the flare onto the front fender and fascia and seat the clips fully, using the sequence shown in the illustration (A - L).
2. Install the rivets securing the wheel liner to the flare using the sequence shown (1 - 8).
Rear

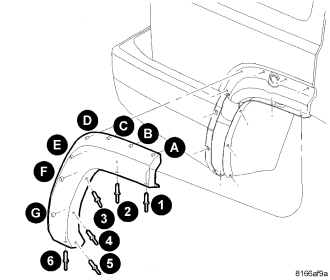

1. Position the rear quarter panel flare onto the rear fascia and quarter panel and seat the clips fully, using the sequence shown in the illustration (A - G).
2. Install the rivets securing the wheel liner to the flare using the sequence shown (1 - 6).
3. Position the door flare (1) onto the door and seat the clips fully.
1. Install the six rivets (1) from the inside of the rear doors.
