STANDARD PROCEDURE

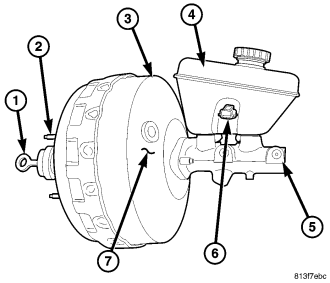

Always clean the master cylinder reservoir (4) and cap before checking fluid level. If not cleaned, dirt could enter the fluid.

The fluid fill level is indicated on the side of the master cylinder reservoir (4).

The correct fluid level is to the MAX indicator on the side of the reservoir. If necessary, add fluid to the proper level.
