BEARINGS-AXLE
REMOVAL
1. Remove axle shaft.
2. Remove axle shaft tube (1) seal with seal Remover 7794-A (2) and slide hammer.

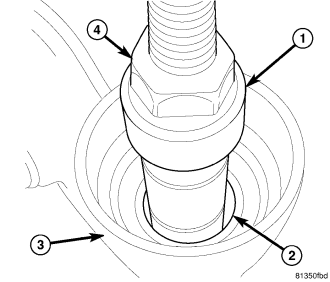

3. Install axle bearing remover C-4660-A (1) into the axle bearing (2) in the axle tube (3) and tighten remover nut (4).
4. Install bearing receiver C-4660-A (1) washer and nut (2) on remover. Tighten nut (2) and draw bearing into receiver (1).
NOTE: Do not use remover C-4660-A bearing.
INSTALLATION
1. Install axle bushing (1) with Installer 5063 (2) and hammer.
2. Install axle shaft and seal.
