REMOVAL
REMOVAL
3.7L / 4.7L
WARNING: Disconnect negative cable from battery before removing battery output wire (B+ wire) from generator. Failure to do so can result in injury or damage to electrical system.
1. Disconnect negative battery cable at battery.
2. Remove generator drive belt.

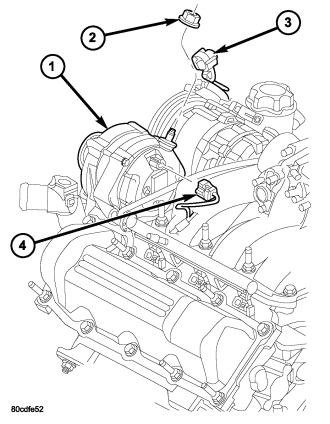

3. Unsnap plastic insulator cap (3) from B+ output terminal.
4. Remove B+ terminal mounting nut (2) at rear of generator. Disconnect terminal from generator.
5. Disconnect field wire connector (4) at rear of generator by pushing on connector tab.

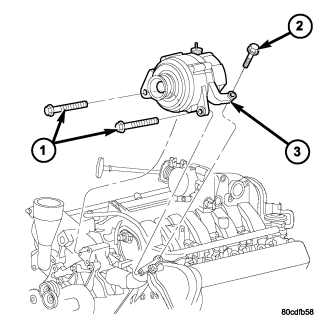

6. Remove 1 rear vertical generator mounting bolt (2).
7. Remove 2 front horizontal generator mounting bolts (1).
8. Remove generator from vehicle.
5.7L
WARNING: Disconnect negative cable from battery before removing battery output wire (B+ wire) from generator. Failure to do so can result in injury or damage to electrical system.
1. Disconnect negative battery cable at battery.
2. Remove generator drive belt.
3. Unsnap plastic insulator cap from B+ output terminal.
4. Remove B+ terminal mounting nut at rear of generator. Disconnect terminal from generator.
5. Disconnect field wire connector (3) at rear of generator by pushing on connector tab.

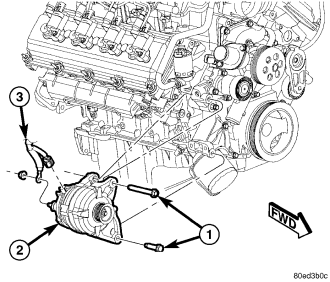

6. Remove 2 generator mounting bolts (1).
7. Remove generator (2) from vehicle.
3.0L - DIESEL
WARNING: DISCONNECT NEGATIVE CABLE FROM BATTERY BEFORE REMOVING BATTERY OUTPUT WIRE (B+ WIRE) FROM GENERATOR. FAILURE TO DO SO CAN RESULT IN INJURY OR DAMAGE TO ELECTRICAL SYSTEM.
1. Disconnect negative battery cable at battery.
2. Remove plastic dress-up cover at top of engine.
3. Remove coolant reservoir tank mounting bolt and position tank toward rear of engine compartment.
4. Remove air filter cover and air filter element.
5. Remove air filter housing (one bolt).
6. Remove generator drive belt. Refer to 7, Cooling System for procedure.

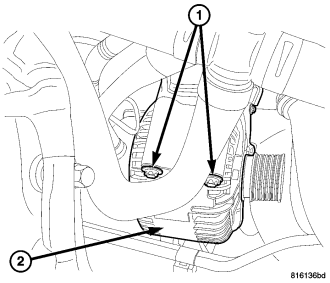

7. Remove two generator upper mounting bolts (1).
8. Raise vehicle.
9. If equipped, remove skid plate below generator.

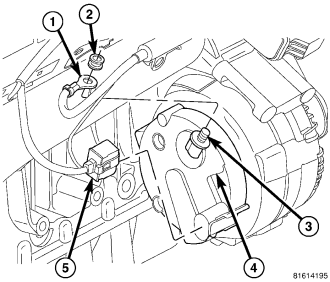

10. Disconnect field wire connector (5) at rear of generator (4) by pushing on connector tab.

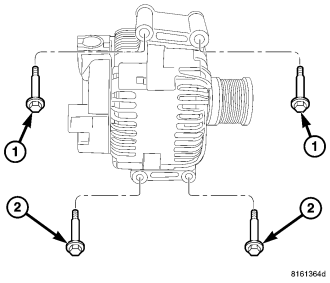

11. Remove two generator lower mounting bolts (2).
12. Lower vehicle.
13. Remove throttle body-to-cylinder head support bracket (four bolts).
14. Remove throttle body (four bolts). Refer to Throttle Body Removal in Fuel System.
15. Unsnap plastic insulator cap from B+ output terminal.
16. Remove B+ terminal mounting nut (2) at top/rear of generator and remove cable eye (1) from mounting stud (3).
17. Remove generator from vehicle.
