U1122-LOST COMMUNICATION WITH LIN ECU 2
For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on.
- Set Condition:
LIN 1 Bus Performance.
| Possible Causes |
| (D500) LIN BUS CIRCUIT OPEN |
| (D500) LIN BUS CIRCUIT SHORT TO GROUND |
| COMPASS MODULE |
| CLUSTER |
Diagnostic Test
1. CHECK FOR AN ACTIVE DTCTurn the ignition on.
With the scan tool, record and erase DTCs.
Wait 30 seconds.
With the scan tool, read DTCs.
Is the DTC active?
Yes
- Go To 2
No
- The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chaffed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. CHECK VOLTAGE AT COMAPSS MODULE
Turn the ignition off.
Disconnect the Compass Module harness connector.
Turn the ignition on.
Check the voltage of the (F921) Fused Run Relay Output circuit.
Is the voltage above 10 volts?
Yes
- Go To 3
No
- Repair the (F921) Fused Run Relay Output circuit for an open. Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
3. CHECK GROUND CIRCUIT
Turn the ignition off.
Measure the resistance between ground and the (Z915) Ground circuit.
Is the resistance above 10K ohms?
Yes
- Repair the (Z915) Ground circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To4

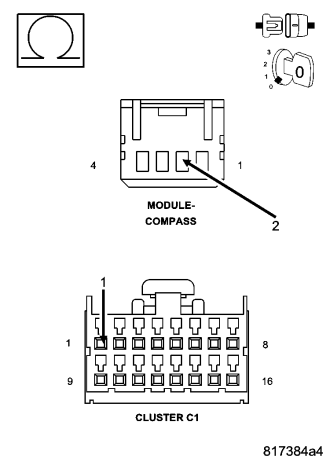

4. CHECK LIN BUS CIRCUIT FOR AN OPEN
Disconnect the Cluster C1 harness connector.
Measure the resistance of the (D500) LIN Bus circuit.
Is the resistance below 10K ohms?
Yes
- Replace the Cluster in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Repair the (D500) LIN Bus circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
