BEZEL-CENTER
REMOVAL

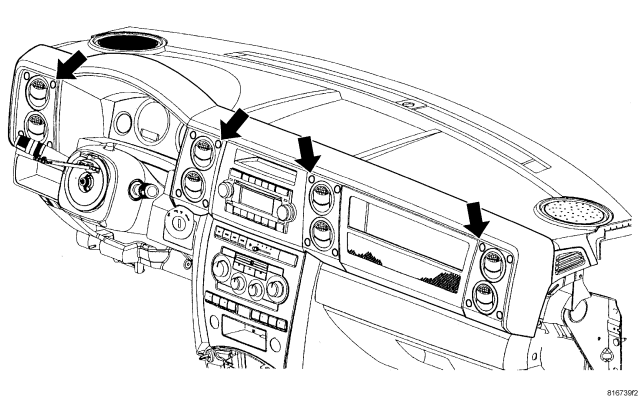

1. Remove the 16 screws and using a trim stick C-4755 or equivalent, separate the trim bezel and remove.
2. Using a trim stick C-4755 or equivalent, remove the shifter bezel ring.
3. Using a trim stick C-4755 or equivalent, remove the shifter bezel.

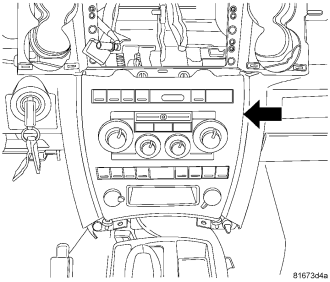

4. Using a trim stick C-4755 or equivalent, remove the center bezel and disconnect the electrical connectors.
INSTALLATION
1. Position the center wire harness and connect the electrical connectors.
2. Install the center bezel.
3. Position the shifter bezel and seat fully.
4. Position the shifter bezel trim ring and seat fully.
5. Position the trim bezel onto the instrument panel and seat the clips fully.
6. Install the 16 screws.
