MIRROR-INSIDE REAR VIEW
REMOVAL

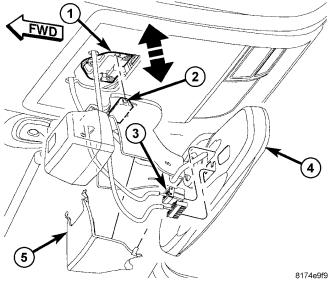

1. Using a trim stick C-4755 or equivalent, remove the trim cover (5).
2. Disconnect the electrical connectors (3).
3. Grasp the mirror assembly (4) securely and pull down to release the support pins (2) from the support bracket (1).
INSTALLATION
1. Position the mirror assembly (4) into position in the over head console.
2. Secure the mirror (4) support pins (2) into the support bracket (1) by firmly pressing into place and seating the mirror fully.
3. Connect the electrical connectors (3) and install the trim cover (5).
4. Calibrate the smart beam system, (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/SMART BEAM CALIBRATION - STANDARD PROCEDURE)
