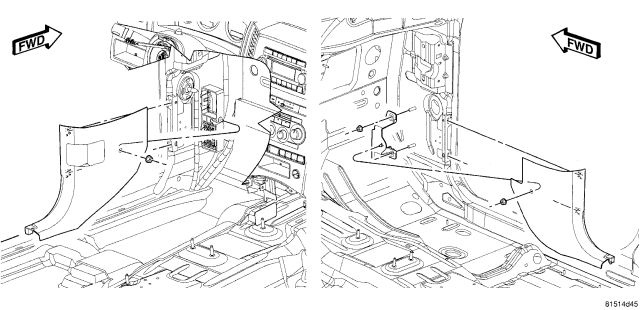

PANEL-COWL SIDE TRIM
REMOVAL
1. Remove the front door sill scuff plate, (Refer to 23 - BODY/INTERIOR/DOOR SILL SCUFF PLATE - REMOVAL).
2. Remove the hush panel from underneath the instrument panel.
3. Remove the nut that secures the cowl trim panel to the mounting bracket.
4. Remove the cowl trim panel.
INSTALLATION
1. Align the fastener hole in the cowl trim panel with the stud on the mounting bracket and then seat the trim panel onto the mounting bracket.
2. Install the nut that secures the cowl trim panel to the mounting bracket.
3. Install the hush panel.
4. Install the front door sill scuff plate, (Refer to 23 - BODY/INTERIOR/DOOR SILL SCUFF PLATE - INSTALLATION).
