INSTALLATION
RECEIVER

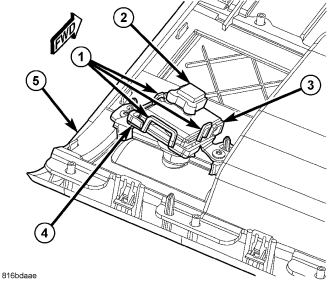

1. Position the intrusion sensor receiver (3) to the mounting bracket (4) on the left rear corner of the overhead console housing (5).
2. Press the receiver down until the three latch features (1) of the bracket are fully engaged.
3. Reconnect the take out of the overhead wire harness to the connector receptacle (2) on the forward end of the receiver housing.
4. Reinstall the overhead console onto the headliner. (Refer to 8 - ELECTRICAL/OVERHEAD CONSOLE - INSTALLATION).
5. Reconnect the battery negative cable.
TRANSMITTER

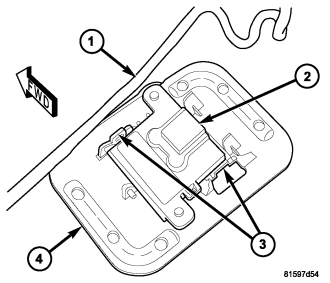

1. Carefully pull down the left rear edge of the headliner from the upper liftgate opening far enough to reach between the headliner and the roof panel to position the intrusion sensor transmitter (2) over the locating pins of the mounting bracket (4) on the headliner substrate.
2. Press the transmitter down until the two latch features (3) of the mounting bracket are fully engaged.
3. Reconnect the take out of the overhead wire harness (1) to the connector receptacle on the right side of the transmitter housing.
4. Reinstall the trim onto the left upper D-pillar. (Refer to 23 - BODY/INTERIOR/D-PILLAR TRIM - INSTALLATION).
5. Reinstall the trim onto the upper liftgate opening. (Refer to 23 - BODY/INTERIOR/LIFTGATE OPENING UPPER TRIM - INSTALLATION).
6. Position the bezel (1) over the transducer housing (2) of the intrusion sensor transmitter and press it straight onto the housing until it snaps into place against the headliner (3). Be certain to take the appropriate precautions not to soil or damage the headliner.
7. Reconnect the battery negative cable.
