B1659-FRONT FOG LAMP CONTROL CIRCUIT LOW

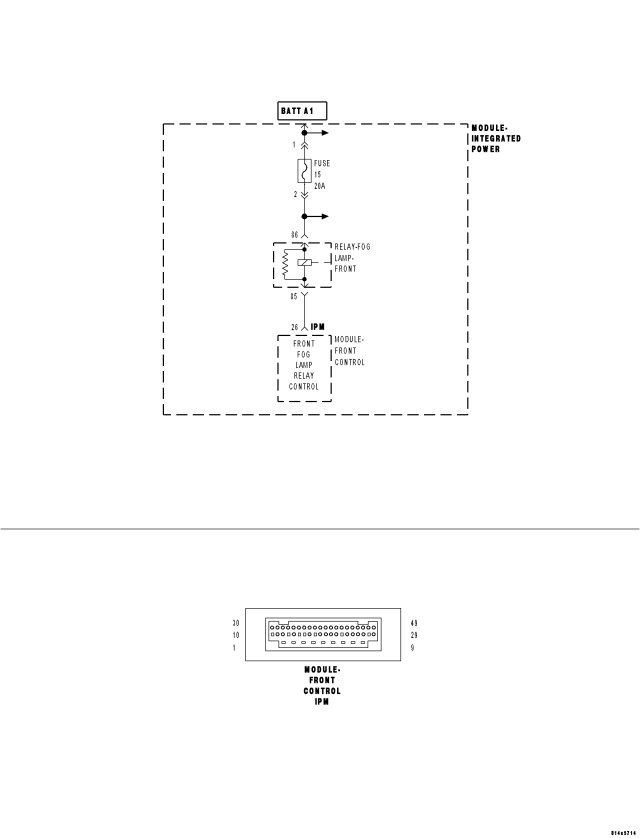

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the Fog Lamps activated.
- Set Condition:
- When the IPM detects a LOW condition.
| Possible Causes |
| INTEGRATED POWER MODULE |
Diagnostic Test
1. INTEGRATED POWER MODULETurn the ignition off.
Replace the Fog Lamp relay with and known good relay.
With the Scan Tool, clear all IPM DTC's.
Turn the Fog Lights ON then OFF.
With the Scan Tool, read the DTC's.
Does the Scan Tool read: B1659-FRONT FOG LAMP CONTROL CIRCUIT LOW?
Yes
- Replace the Integrated Power Module in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Test complete.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
