B165E-PARK LAMP CONTROL CIRCUIT OPEN

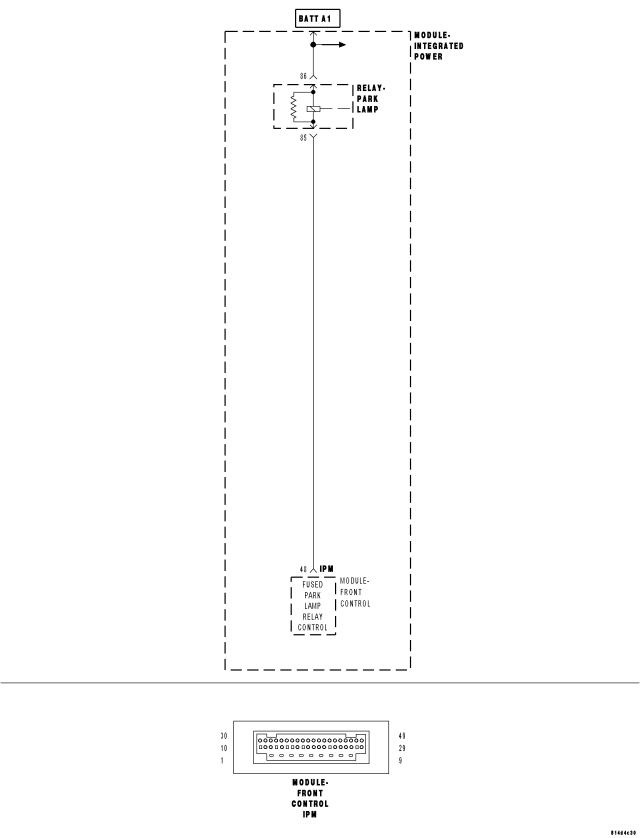

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the Park Lamps activated.
- Set Condition:
- When the FCM detects a OPEN condition.
| Possible Causes |
| FRONT CONTROL MODULE |
Diagnostic Test
1. INTEGRATED POWER MODULETurn the ignition off.
Replace the Park Lamp relay with and known good relay.
With the Scan Tool, clear all IPM DTC's.
Turn the Park Lamps ON then OFF.
With the Scan Tool, read the DTC's.
Does the Scan Tool read: B165E-PARK LAMP CONTROL CIRCUIT OPEN?
Yes
- Replace the Integrated Power Module in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Test complete.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
