B163B-FRONT LEFT TURN CONTROL CIRCUIT LOW

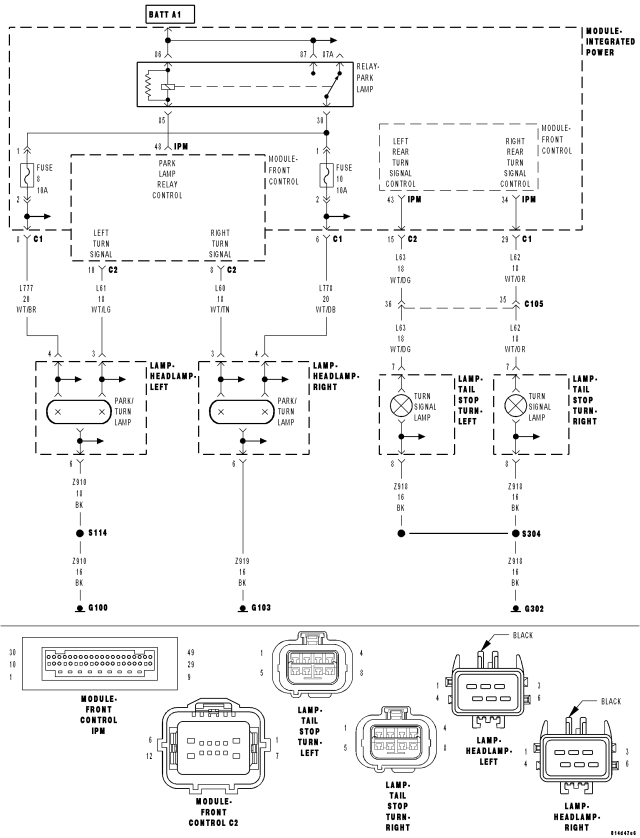

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the Headlamps activated.
- Set Condition:
- When the FCM detects a LOW condition.
| Possible Causes |
| (L61) FRONT LEFT TURN SIGNAL CONTROL CIRCUIT |
| FRONT CONTROL MODULE |
Diagnostic Test
1. INTERMITTENT CONDITIONTurn the ignition on.
With the Scan Tool, clear all FCM DTC's.
Turn the Left Turn Signals on.
With the Scan Tool read the DTC information.
Does the Scan Tool read: B163B-FRONT LEFT TURN CONTROL CIRCUIT LOW?
Yes
- Go To 2
No
- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. L61 FRONT LEFT TURN SIGNAL CONTROL CIRCUIT
Turn the ignition off.
Disconnect the FCM C2 connector.
Measure the resistance between ground and the (L61) Front Left Turn Signal Control circuit.
Is the resistance below 5.0 ohms?
Yes
- Repair the (L61) Front Left Turn Signal Control circuit for a short to ground.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Front Control Module in accordance with the service information.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
