REMOVAL
3.7L GAS/3.0L DIESEL VEHICLES

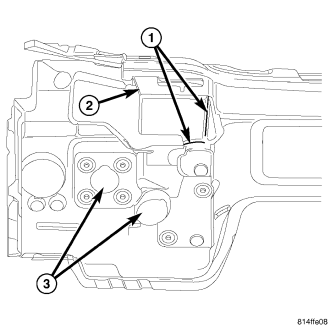

1. Locate the transmission control module on the dash panel, under the dash panel silencer pad (2), just to the right of the steering column.
2. Locate the cut lines (1) marked on the silencer pad. Cut the pad along these lines.
3. Remove the transmission control module from the dash panel or bracket.
4. Disconnect the wiring harness connectors (3) from the module.
5. Remove the module from the vehicle.
4.7L/5.7L VEHICLES
The transmission control module is part of the powertrain control module. For the removal procedure, Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - REMOVAL.
