TRAFFIC MESSAGE CENTER MODULE
DESCRIPTION
The Traffic Message Center module (TMC) provides traffic information to the navigation system to update planned routes in the event of a traffic accident, construction or any other condition that causes traffic to be increased. This allows the users to avoid these congested areas and be automatically rerouted to get to their destination.REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the rear quarter trim panel. Refer to (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL).
3. Disconnect the electrical connectors.

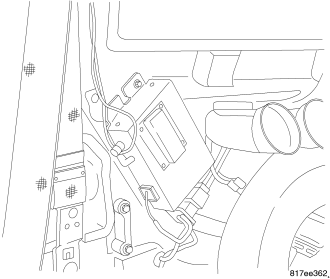

4. Remove the mounting fasteners and remove the Traffic Message Center Module (TMC).
INSTALLATION
1. Install the module and fasteners.
2. Connect the electrical connectors.
3. Install the rear quarter trim panel. Refer to (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - INSTALLATION).
4. Connect the battery negative cable.
