2007 Commander XK Factory Service Manual 23 - BODY

SPECIFICATIONS

OPENING DIMENSIONS

Index

DESCRIPTION	FIGURE
ENGINE COMPARTMENT	ENGINE COMPARTMENT
WINDSHIELD OPENING	WINDSHIELD OPENING
FRONT DOOR OPENING	FRONT DOOR OPENING
REAR DOOR OPENING	REAR DOOR OPENING
QUARTER WINDOW OPENING	QUARTER WINDOW OPENING
LIFTGATE OPENING	LIFTGATE OPENING

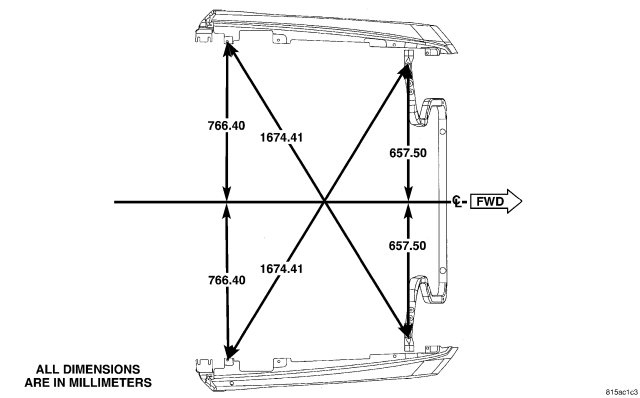

ENGINE COMPARTMENT

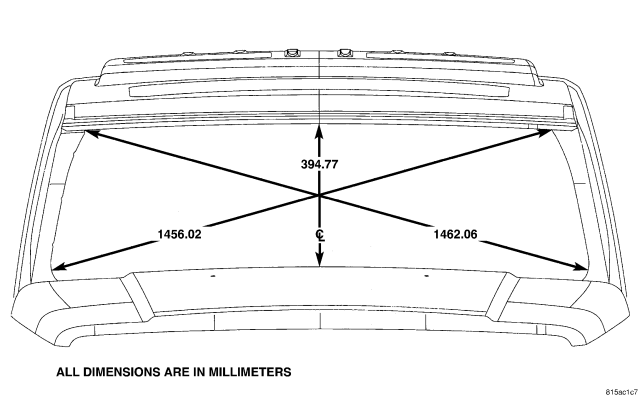

WINDSHIELD OPENING

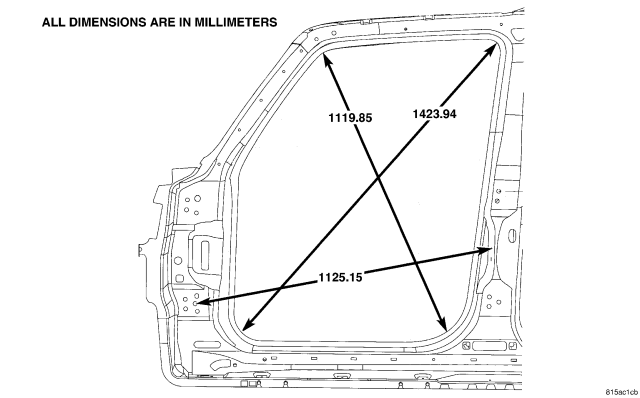

FRONT DOOR OPENING

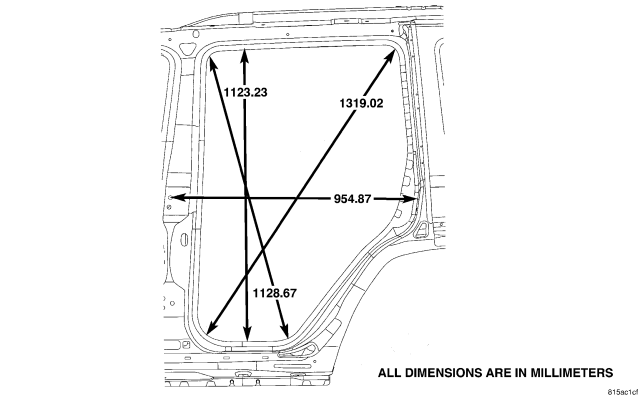

REAR DOOR OPENING

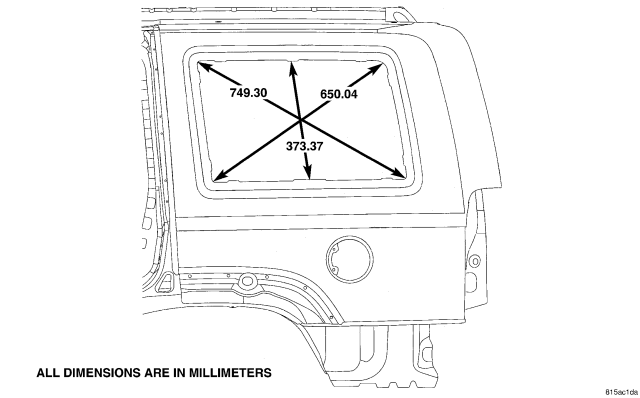

QUARTER WINDOW OPENING

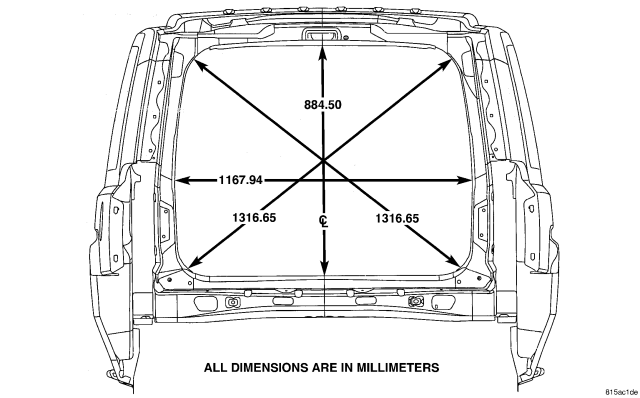

LIFTGATE OPENING
