B188D-POWER LIFTGATE CONTROL CIRCUIT 1 LOW

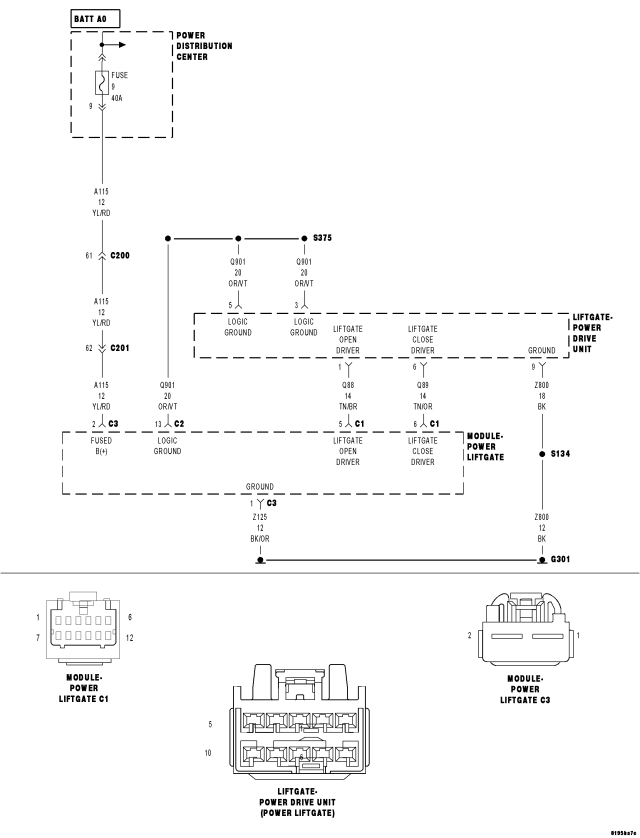

For a complete wiring diagram Refer to Section 8W
- When Monitored:
Whenever the Power Liftgate is power opening or closing.
- Set Condition:
When the Power Liftgate Module senses voltage less than 1.5 volts on the (Q88) Liftgate Open Driver circuit prior to starting a liftgate power cycle, this code will set.
| Possible Causes |
| (Q88) LIFTGATE OPEN DRIVER CIRCUIT SHORT TO GROUND |
| (Q88) LIFTGATE OPEN DRIVER CIRCUIT SHORT TO (Q89) LIFTGATE CLOSE DRIVER CIRCUIT |
| (Q89) LIFTGATE CLOSE DRIVER CIRCUIT SHORT TO GROUND |
| POWER LIFTGATE DRIVE UNIT |
| POWER LIFTGATE MODULE |
Diagnostic Test
1. DTC PRESENTWith the scan tool, record DTC's.
Erase DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
If possible, operate the liftgate several times.
With the scan tool, read DTCs.
Does the scan tool display B188D–POWER LIFTGATE CONTROL CIRCUIT 1 LOW?
Yes
- Go To 2
No
- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
2. (Q88) LIFTGATE OPEN DRIVER CIRCUIT SHORT TO (Q89) LIFTGATE CLOSE DRIVER CIRCUIT
Turn the ignition off.
Disconnect the Power Liftgate Module C1 connector.
Measure the resistance between the (Q88) Liftgate Open Driver circuit and the (Q89) Liftgate Close Driver circuit.
Is the resistance below 3.0 ohms (should be approximately 4.3 ohms)?
No
- Go To4
Yes
- Go to 3
3. POWER LIFTGATE DRIVE UNIT

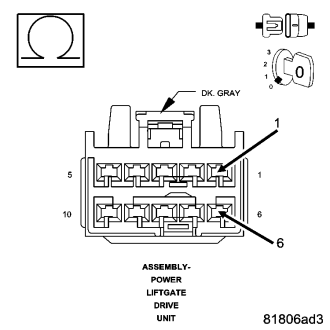

Disconnect the Power Liftgate Drive Unit harness connector.
Measure the resistance between the (Q88) Liftgate Open Driver circuit and the (Q89) Liftgate Close Driver circuit.
Is the resistance below 1000.0 ohms?
Yes
- Repair the (Q88) Liftgate Open Driver circuit for a short to the (Q89) Liftgate Close Driver circuit.
No
- Replace the Power Liftgate Drive Unit in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
4. (Q88) LIFTGATE OPEN DRIVER CIRCUIT SHORT TO GROUND
Measure the resistance between ground and the (Q88) Liftgate Open Driver circuit.
Is the resistance below 1000.0 ohms?
Yes
- Repair the (Q88) Liftgate Open Driver circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No
- Go to 5
5. CHECK THE (Q89) LIFTGATE CLOSE DRIVER FOR A SHORT TO GROUND
Reconnect the Power Liftgate Module C1 harness connector.
Measure the resistance between ground and the (Q89) Liftgate Close Driver circuit.
Is the resistance below 1000.0 ohms?
Yes
- Replace the Power Liftgate Drive Unit in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No
- Repair the (Q89) Liftgate Close Driver circuit for a short to ground. If the (Q89) Liftgate Close Driver circuit is OK, replace the Power Liftgate Module in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
