2007 Commander XK Factory Service Manual 8 - ELECTRICAL

B1956-POWER LIFTGATE LATCH RELEASE - EXCESSIVE TIME

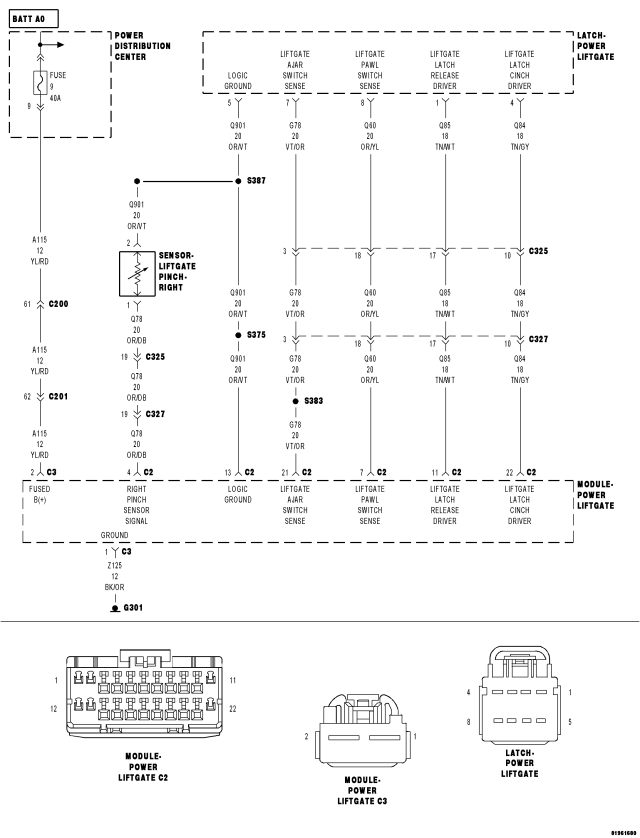

For a complete wiring diagram Refer to Section 8W



Possible Causes

BINDING LIFTGATE

LOW BATTERY VOLTAGE

LATCH NOT IN HOME POSITION

(Q84) LIFTGATE LATCH CINCH DRIVER CIRCUIT OPEN OR HIGH RESISTANCE

(Q85) LIFTGATE LATCH RELEASE DRIVER CIRCUIT OPEN OR HIGH RESISTANCE

(G78) LIFTGATE SWITCH SENSE CIRCUIT OPEN OR HIGH RESISTANCE

(Q901) LOGIC GROUND CIRCUIT OPEN OR HIGH RESISTANCE

LATCH ASSEMBLY





Diagnostic Test

1. DTC PRESENT

NOTE: If there are any other Power Liftgate DTCs present, repair them before proceeding with this test.

NOTE: Ensure the battery is fully charged and serviceable before proceeding.


Ensure the liftgate is closed and with the scan tool, run the “Latch Home Position Test” before proceeding to ensure the latch is positioned correctly.
With the scan tool, record and erase DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the scan tool, read ACTIVE DTCs.

Does the scan tool display B1956–POWER LIFTGATE LATCH RELEASE – EXCESSIVE TIME?

Yes


No

2. BINDING LIFTGATE

Examine the liftgate for proper alignment, worn or binding hinges, weak liftgate prop assembly, loose/hard weatherstrip, and track assembly for wear or anything that would cause an obstruction to proper operation.
If necessary manually operate the power liftgate on a known good vehicle and notice the effort needed to open and close for comparison.
Especially notice the effort needed to unlatch and close the liftgate.

Were there any mechanical problems found?

Yes


No

3. CHECK THE (Q84) LIFTGATE LATCH CINCH DRIVER CIRCUIT FOR AN OPEN OR HIGH RESISTANCE



Turn the ignition off.
Disconnect the Power Liftgate Module C2 and C3 harness connectors.
Check the connectors for damage, corrosion, or pushed out pins. Repair any problems as necessary.
Reconnect the Power Liftgate Module C3 harness connector.
Disconnect the Power Liftgate Latch harness connector.

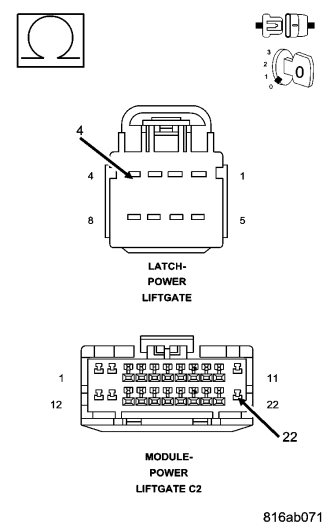

Measure the resistance of the (Q84) Liftgate Latch Cinch Driver circuit between the Power Liftgate Module C2 harness connector and the Power Liftgate Latch harness connector.
Wiggle the harness and check for an intermittent open condition.

Is the resistance below 5.0 ohms?

Yes


No

4. CHECK THE (Q85) LIFTGATE LATCH RELEASE DRIVER CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

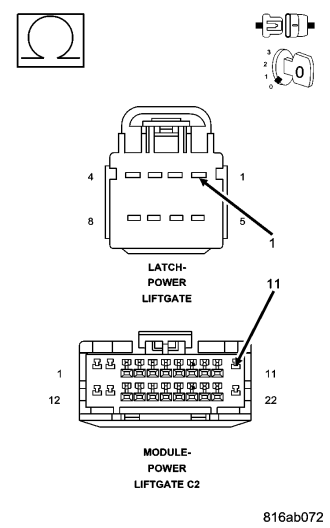

Measure the resistance of the (Q85) Liftgate Latch Release Driver circuit between the Power Liftgate Module C2 harness connector and the Power Liftgate Latch harness connector.
Wiggle the harness and check for an intermittent open condition.

Is the resistance below 5.0 ohms?

Yes


No

5. CHECK THE (Q901) LOGIC GROUND WIRE FOR AN OPEN OR HIGH RESISTANCE

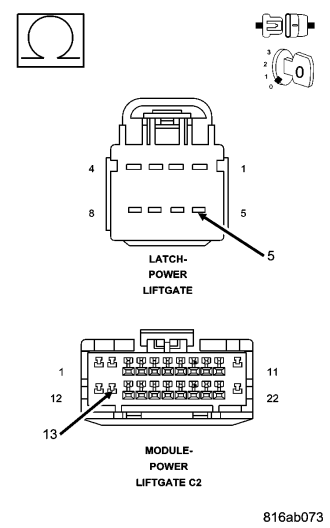

Measure the resistance of the (Q901) Logic Ground circuit between the Power Liftgate Module C2 harness connector and the Power Liftgate Latch harness connector.
Wiggle the harness and check for an intermittent short condition.

Is the resistance below 5.0 ohms?

No


Yes

6. CHECK THE (G78) LIFTGATE AJAR SWITCH SENSE CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

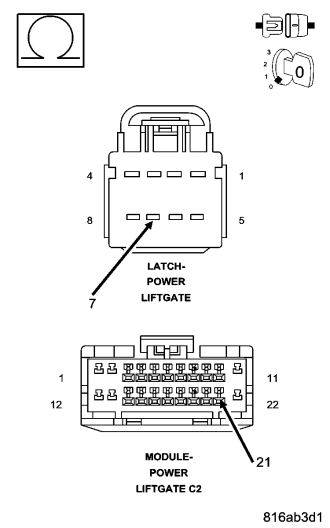

Measure the resistance of the (G78) Liftgate Ajar Switch Sense circuit between the Power Liftgate Latch C2 harness connector and the Power Liftgate Latch harness connector.
Wiggle the harness and check for an intermittent open condition.

Is the resistance below 5.0 ohms?

No


Yes
