B1958-POWER LIFTGATE DRIVE CLUTCH CONTROL CIRCUIT LOW

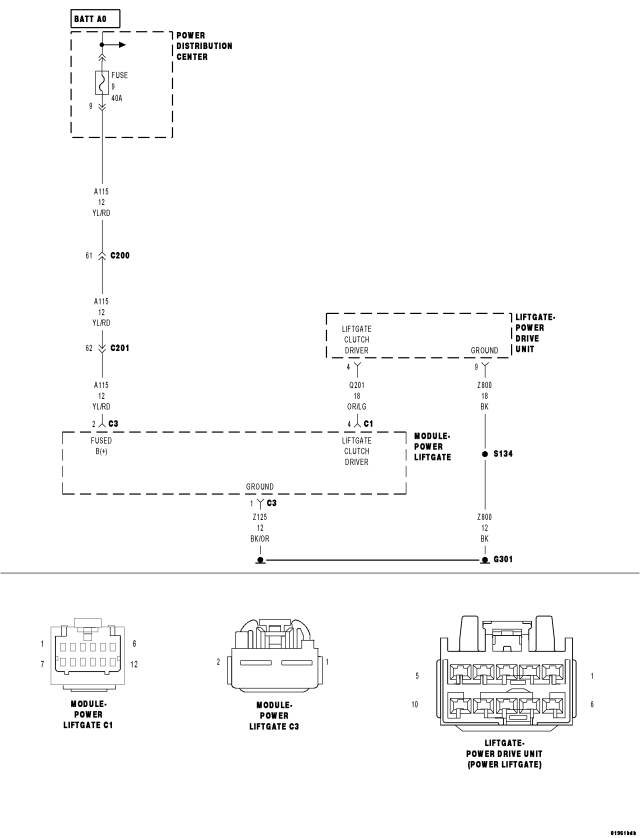

For a complete wiring diagram Refer to Section 8W
- When Monitored:
Whenever the Power Liftgate is power opening or closing.
- Set Condition:
The power liftgate module has detected the clutch driver circuit current is over five amps.
| Possible Causes |
| (Q201) LIFTGATE CLUTCH DRIVER CIRCUIT SHORT TO GROUND |
| POWER LIFTGATE DRIVE UNIT |
| POWER LIFTGATE MODULE |
Diagnostic Test
1. DTC PRESENTWith the scan tool, record DTCs and any liftgate inhibitors.
Erase DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the liftgate several times.
With the scan tool, read DTCs.
Does the scan tool display B1958–POWER LIFTGATE DRIVE CLUTCH CONTROL CIRCUIT LOW?
Yes
- Go To 2
No
- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
2. POWER LIFTGATE DRIVE UNIT
Disconnect the Power Liftgate Drive Unit harness connector
Erase DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
With the scan tool, read DTCs.
Does the scan tool display B1958–POWER LIFTGATE DRIVE CLUTCH CONTROL CIRCUIT LOW?
Yes
- Go To3
No
- Replace the Power Liftgate Drive Unit in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
3. (Q201) LIFTGATE CLUTCH DRIVER CIRCUIT SHORT TO GROUND
Turn the ignition off.
Disconnect the Power Liftgate Module C1 harness connector.
Measure the resistance between ground and the (Q201) Liftgate Clutch Driver circuit.
Is the resistance below 10000.0 ohms?
No
- Replace the Power Liftgate Module in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
Yes
- Repair the (Q201) Liftgate Clutch Driver circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
