B1965-POWER LIFTGATE SENSOR SUPPLY CIRCUIT LOW

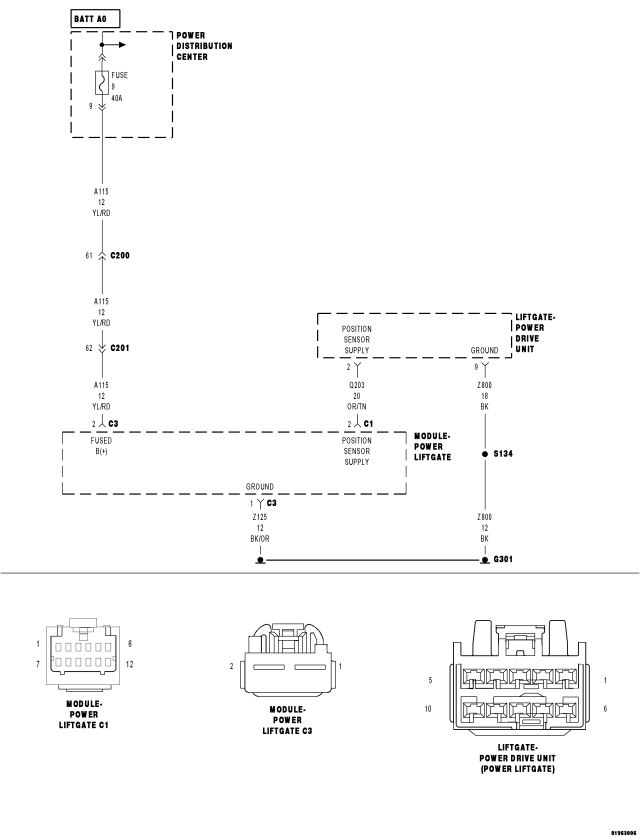

For a complete wiring diagram Refer to Section 8W
- When Monitored:
Whenever the Power Liftgate Module is awake.
- Set Condition:
The Power Liftgate Module has detected the sensor supply circuit voltage is under 4.0 volts.
| Possible Causes |
| (Q203) POSITION SENSOR SUPPLY CIRCUIT SHORT TO GROUND |
| POWER LIFTGATE DRIVE UNIT |
| POWER LIFTGATE MODULE |
Diagnostic Test
1. DTC PRESENTWith the scan tool, record DTCs and any liftgate inhibitors.
Erase DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the liftgate several times.
With the scan tool, read DTCs.
Does the scan tool display B1965–POWER LIFTGATE SENSOR SUPPLY CIRCUIT LOW?
Yes
- Go To 2
No
- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
2. POWER LIFTGATE DRIVE UNIT
Disconnect the Power Liftgate Drive Unit harness connector.
Erase DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
With the scan tool, read DTCs.
Does the scan tool display B1965–POWER LIFTGATE SENSOR SUPPLY CIRCUIT LOW?
Yes
- Go To3
No
- Replace the Power Liftgate Drive Unit in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
3. (Q203) POSITION SENSOR SUPPLY CIRCUIT SHORT TO GROUND
Turn the ignition off.
Disconnect the Power Liftgate Module C1 harness connector.
Measure the resistance between ground and the (Q203) Position Sensor Supply circuit.
Is the resistance below 10000.0 ohms?
No
- Replace the Power Liftgate Module in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
Yes
- Repair the (Q203) Position Sensor Supply circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
