CHIME
DESCRIPTION

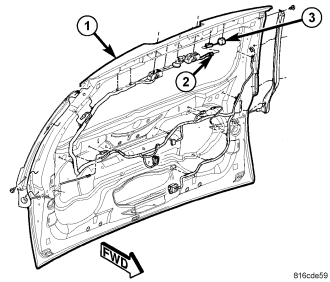

Vehicles equipped with a power liftgate utilize a chime (3). The chime (3) is a small cylindrical shaped electrical component mounted on the upper liftgate assembly (1) under the upper trim panel. The chime produces the audible chime sound heard at the rear of the vehicle at the start of a power cycle.
The chime cannot be adjusted or repaired and if damaged or inoperative must be replaced.
OPERATION
The chime function is activated by a hardwired connection to the power liftgate control module. During a power liftgate “open/close” cycle the power liftgate control module signals the chime to sound.
REMOVAL
1. Open the liftgate.
2. Disconnect and isolate the battery negative cable.

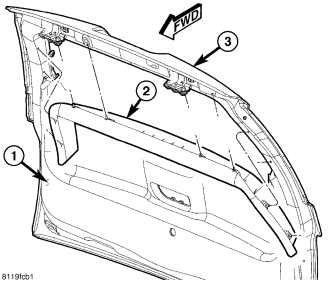

3. Using a trim stick C-4829-A or equivalent, separate the pushpin fasteners and remove the upper trim panel (2).
4. Disconnect the chime electrical connector (2).
5. Unsnap the chime (3) from the liftgate (1) and remove from the vehicle.
INSTALLATION
1. Snap the chime assembly (3) onto the liftgate (1).
2. Connect the wire connector (2).
3. Position the upper trim (2) into place and seat the pushpin fasteners fully.
4. Connect the battery negative cable.
