B1807 PASSENGER DOOR LOCK/UNLOCK SWITCH CIRCUIT HIGH - PASSENGER DOOR MODULE

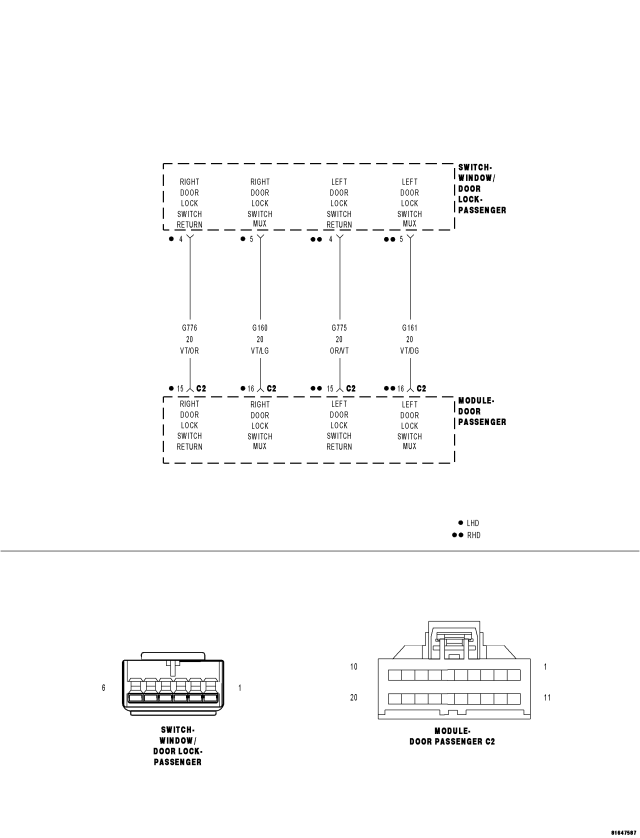

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Continuously
- Set Condition:
When the Door Lock Switch Mux circuit is above 5.25 volts for over 30 msec.
| Possible Causes |
| (G16O) (LHD) RIGHT DOOR LOCK SWITCH MUX WIRE PARTIAL SHORT TO VOLTAGE |
| (G161) (RHD) LEFT DOOR LOCK SWITCH MUX WIRE PARTIAL SHORT TO VOLTAGE |
| PASSENGER WINDOW/DOOR LOCK SWITCH |
| PASSENGER DOOR MODULE |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONWith the scan tool, record and erase DTC's
Operate the Passenger Door Lock Switch in both positions several times.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTC's.
Does the scan tool display B1807–PASSENGER DOOR LOCK/UNLOCK SWITCH CIRCUIT HIGH?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. DOOR LOCK SWITCH SHORTED TO VOLTAGE
With the scan tool, erase DTC's.
Disconnect the Passenger Window/Door Lock Switch connector.
With the scan tool, read DTC's.
Does the scan tool display PASSENGER DOOR LOCK/UNLOCK SWITCH CIRCUIT HIGH?
No
- Replace the Window/Door Lock Switch.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go to 3
3. (G160) (LHD) OR (G161) (RHD) DOOR LOCK SWITCH MUX CIRCUIT SHORT TO VOLTAGE
Disconnect the Passenger Door Module C2 connector.
Measure the voltage between ground and the (G160) or (G161) Door Lock Switch Mux circuit in the Passenger Door Module C2 connector.
Is there any voltage present?
Yes
- Repair the (G160) or (G161) Door Lock Switch Mux circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Passenger Door Module in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
